MALLORY SC628AF PIEZO BUZZER
Quick Overview
Manufactured By: MALLORY
Manufacturer Part Number: SC628AF
IMS Product Code: 1746846
Packaging: Sold Individually
Description:

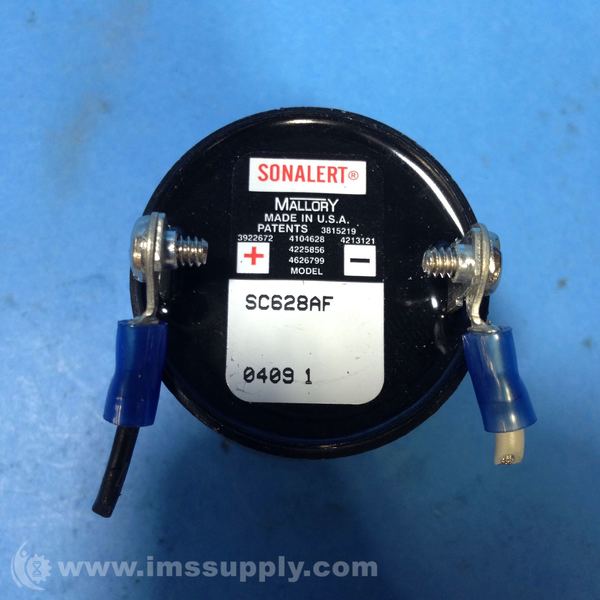

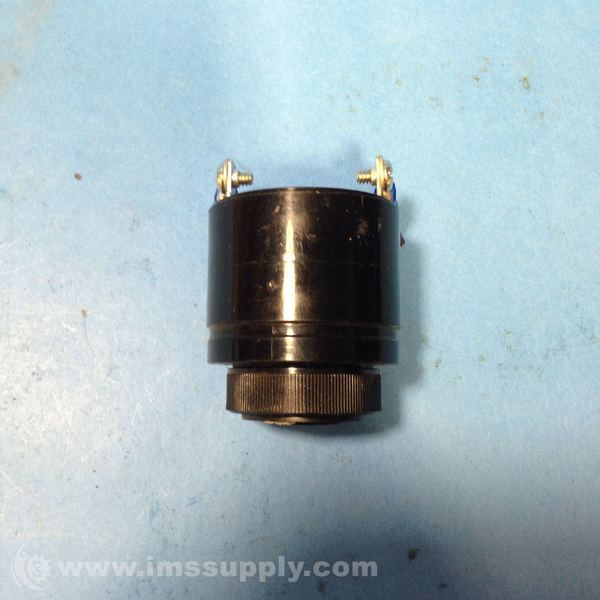

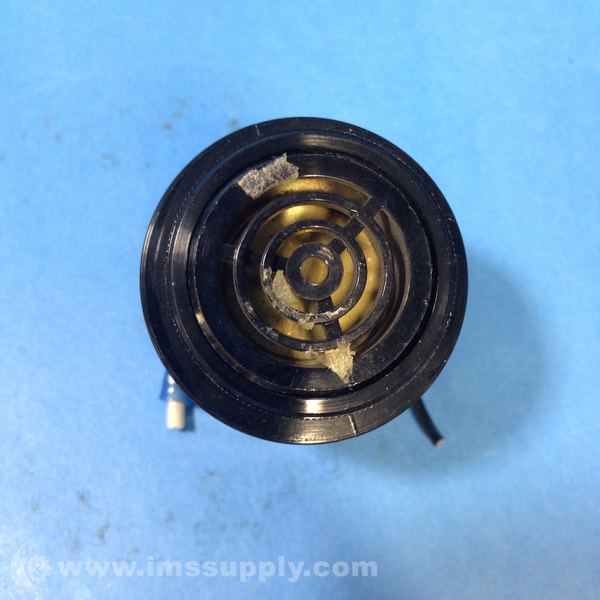

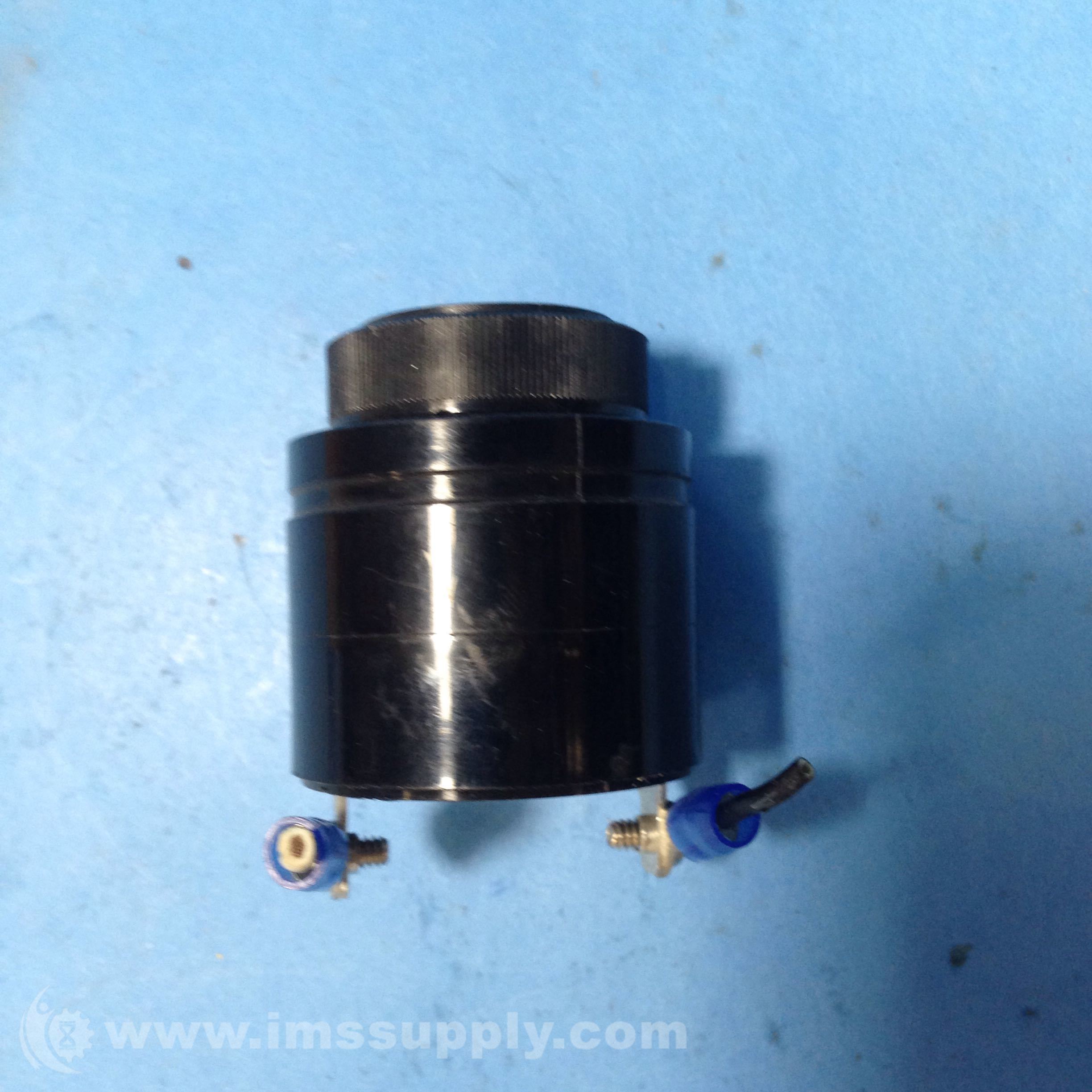

Mallory SC628AF Piezo Buzzer
Piezoelectric alarm with screw terminals, internally driven, single tone, 2.9kHz frequency
Specifications
- Circuitry: Yes
- Max Current (mA): 4 ma @ 28VAC/DC
- Weight: 59 g
- Operating Temperature: -30 C to 65 C
- Storage Temperature: -40 C to 85 C
- Housing Material: 6/6 Nylon, Color Black
- Series: SC
- Driver Circuitry: Indicator, Internally Driven
- Input Type: AC, DC
- Voltage Range: 6 ~ 28V
- Frequency: 2.9kHz
- Technology: Piezo
- Operating Mode: Single Tone
- Sound Pressure Level (SPL): 50dB @ 7.5V, 61cm
- Current Supply: 2 ~ 4mA
- Port Location: Top
- Ingress Protection: NEMA 3R, 4X, 12
- Mounting Type: Panel Mount
- Termination: Screw Terminal, Quick Connect Tab - 0.250 (6.35mm)
- Size/Dimension: 1.692 Dia (42.98mm)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
