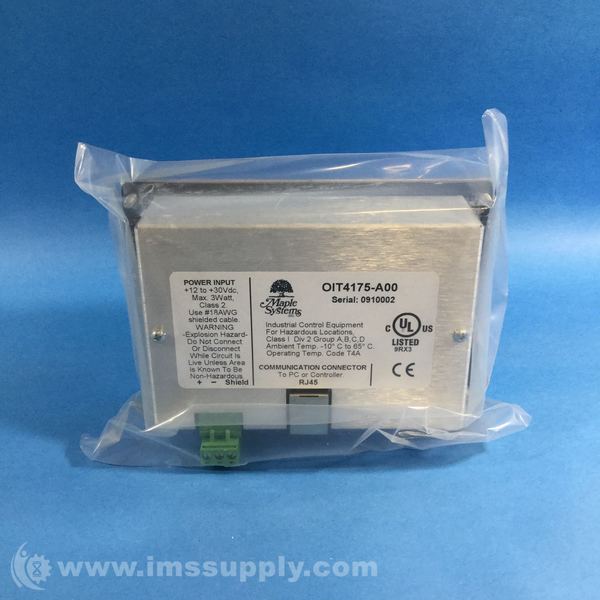

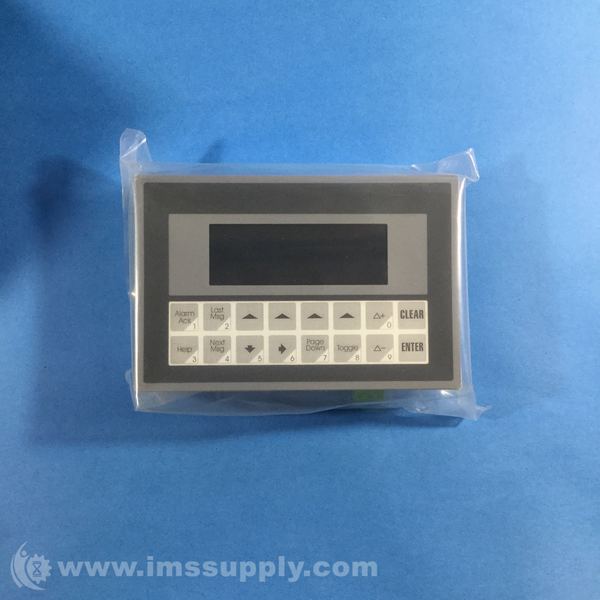

MAPLE SYSTEMS OIT4175-A00 4X20 VFD HMI
Quick Overview
Manufactured By: MAPLE SYSTEMS
Manufacturer Part Number: OIT4175-A00
IMS Product Code: 943194
Packaging: Sold Individually
Description:
Maple Systems OIT4175-A00 4x20 VFD HMI
Operator interface terminal with 4x20 VFD display, 16 programmable keys, and Class I, Division 2 certification.
Specifications
- Display Size: 4 line by 20 characters
- Display Type: VFD; 5 x 7 dot matrix
- View Angle: Approximately 90 degrees
- Programmable Keys: 16
- Keypad Type: Flat panel membrane
- Keypad Material: Polyester
- Input Voltage: 12 ~ 30 VDC
- Input Power: 2.02 W
- Serial: 1 x RJ45 shielded RS-232/422/485
- Enclosure Material: Aluminum
- Dimensions: 6 x 4 x 1.77 inches [152.4 x 101.6 x 45 mm]
- Weight: 0.80 lbs [0.36 kg]
- Operating Temperature: -10°C to 65°C
- NEMA Rating: NEMA4X
- IP Rating: IP65
- Certifications: UL, CE, C1D2, BABA
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 55 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 55 minutes.
