MARATHON MOTORS 182THFR5329 3HP TEFC MOTOR
Quick Overview
Manufactured By: MARATHON MOTORS
Manufacturer Part Number: 182THFR5329
IMS Product Code: 2145584
Packaging: Sold Individually
Description:

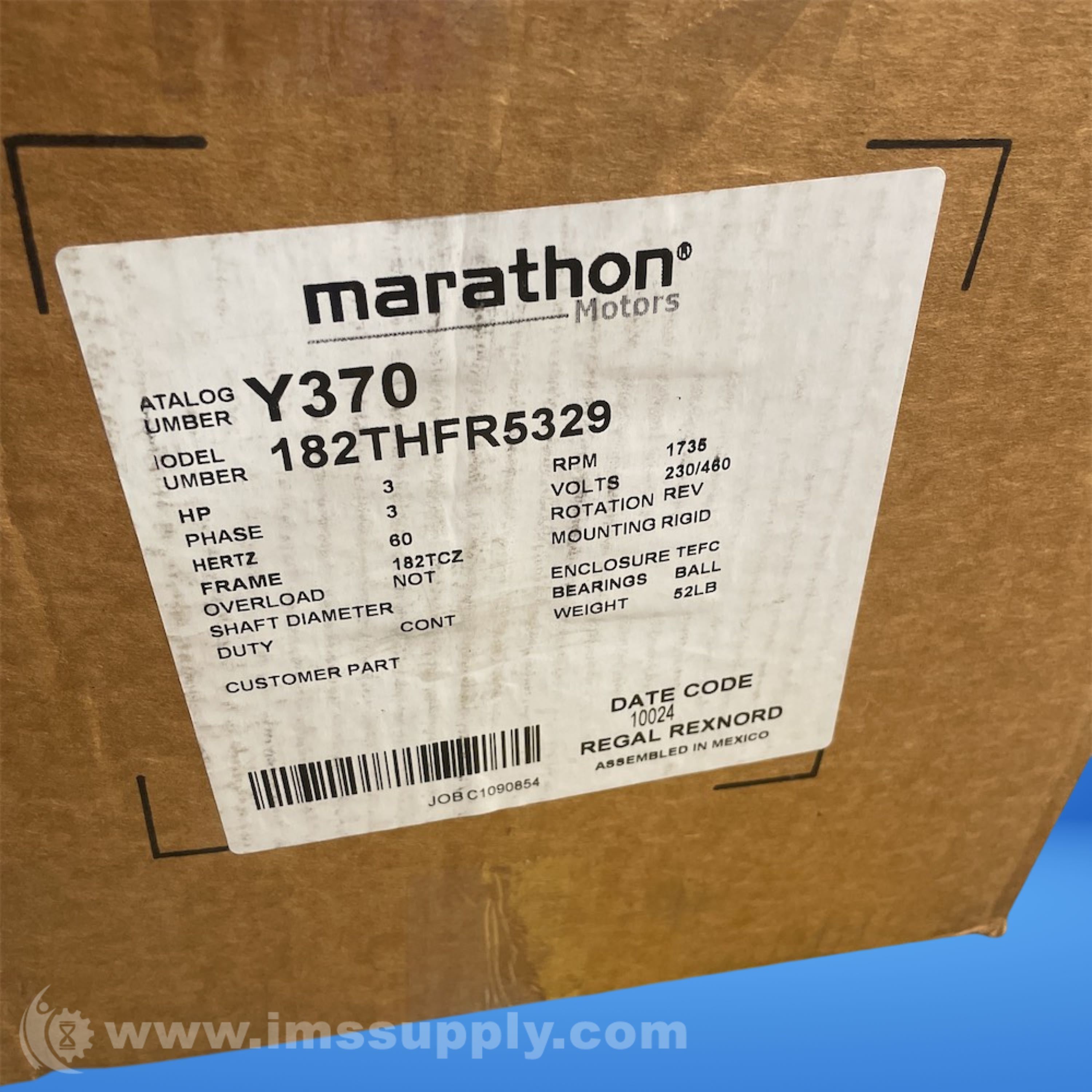

Marathon Motors 182THFR5329 3HP TEFC Motor
3 Phase, 1800 RPM, 230/460 Volts, TEFC Enclosure, 182TCZ Frame, Rigid Base, Rolled Steel Frame
Specifications
- type: Vector Duty
- horsepower: 3 hp
- kilowatts: 2.2 kW
- speed: 1735 RPM
- phase: 3
- nema frame: 182TCZ
- ac voltage: 230 VAC, 460 VAC
- nominal voltage: 240 VAC, 277 VAC, 347 VAC, 380 VAC, 415 VAC, 480 VAC
- enclosure: Totally Enclosed Fan Cooled
- mounting: Footed
- current rating: 8.4 A
- service factor: 1
- composition: Rolled Steel
- net weight: 52 lbs
- catalog number: Y370
- output kw: 2.2 kW
- frequency: 60 Hz
- current: 4.2 Amps
- motor orientation: Horizontal
- number of poles: 4
- frame material: Rolled Steel
- overall length: 14.87 in
- efficiency @ 100% load: 85.50%
- duty rating: Continous
- overload protector: No
- electrical type: Squirrel Cage Inverter Duty
- starting method: Inverter Only
- design code: INV
- kva code: L
- frame length: 9.56 in
- shaft diameter: 0.875 in
- insulation class: H
- opp drive end bearing: Ball
- drive end bearing: Ball
- shaft extension location: 2.12 in
- shaft rotation: Reversible
- shaft type: NEMA 145T
- ambient temperature: 40 degrees C
- agency approvals: CSA, CE, UL
- amperage rating: 8.4/4.2 A
- constant torque speed range: 0.834
- bearing type: Ball
- special features: 4-Pole, Inverter Only Starting Method
- voltage rating: 230/460 VAC
- enclosure type: Totally Enclosed Fan Cooled (TEFC)
- temperature rating: 40 deg C
- frequency rating: 60 Hz
- number of speeds: 1
- mounting type: Rigid
- dimensions: 14.87 in L
- shaft size: 0.88 in Dia
- material: Rolled Steel
- weight: 52 LB
- length: 19.69 IN
- width: 12.31 IN
- height: 12.62 IN
- full load amps: 8.4/4.2
- nema design: INV
- duty: S1
- ingress protection: 43
- elevation: 3300
- paint: BLACK (POWDER)
- flange: C-FACE
- space heaters: Optional
- full load speed: 1735
- efficiency 100: 85.5
- efficiency 75: 85
- efficiency 50: 83.5
- power factor 100: 79
- power factor 75: 71.5
- power factor 50: 58.5
- locked rotor torque: 30 LB-FT 333%
- breakdown torque: 38.5 LB-FT 428%
- locked rotor current: 72 / 36
- rotor inertia lb ft: 0.14 LB-FT^2
- frame remarks: C-Face Rigid
- classification: Inverter Vector Duty: MicroMAX
- thermal protection: No
- drive end bearing size: 6205
- opp drive end bearing size: 6203
- ul: Recognized
- csa: Y
- ce: Y
- ip code: 43
- resistance main: 5.32 Ohms
- assembly/box mounting: F3

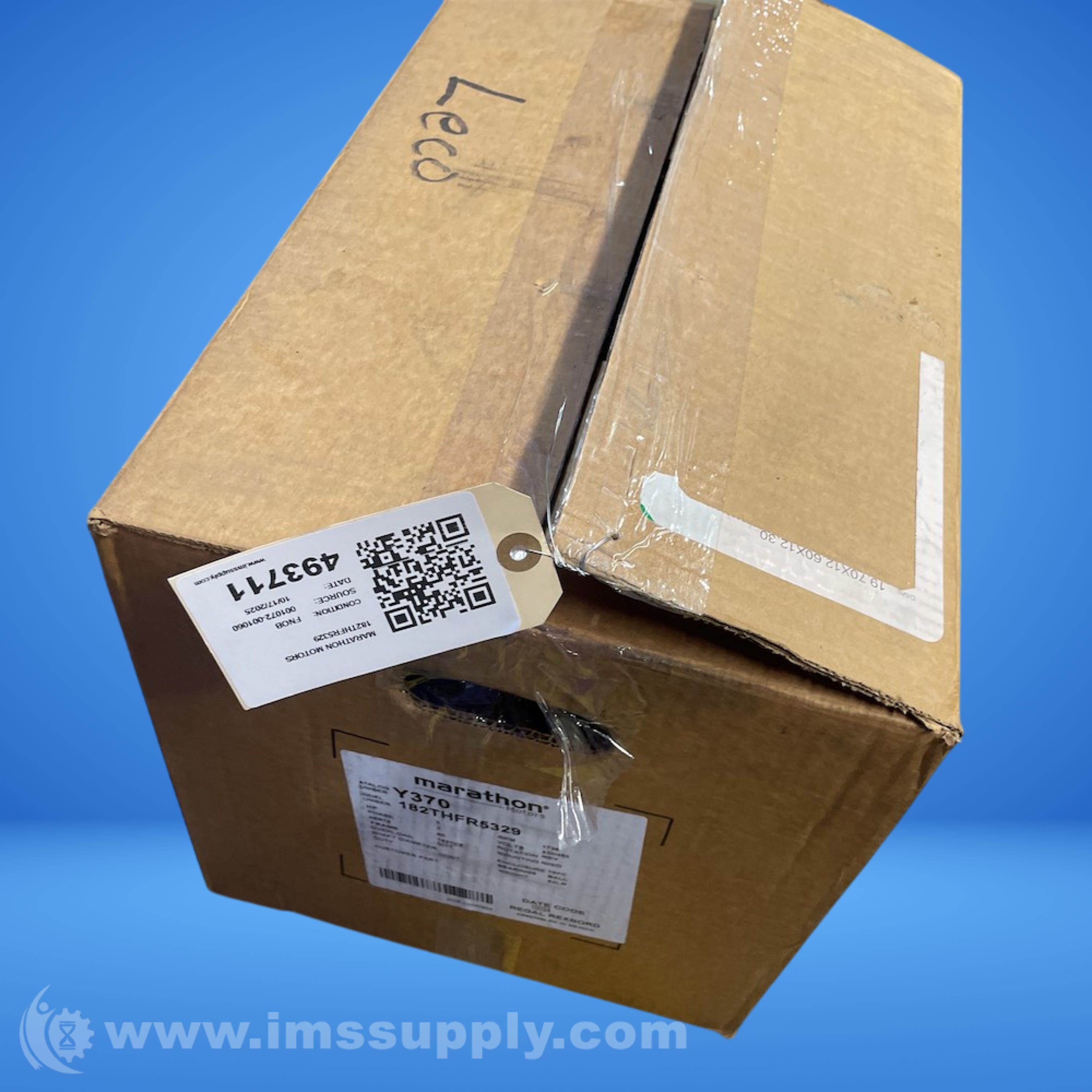

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
