MARTIN 1615 32MM TAPER-LOCK BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 1615 32MM
IMS Product Code: 1806308
Packaging: Sold Individually
Description:

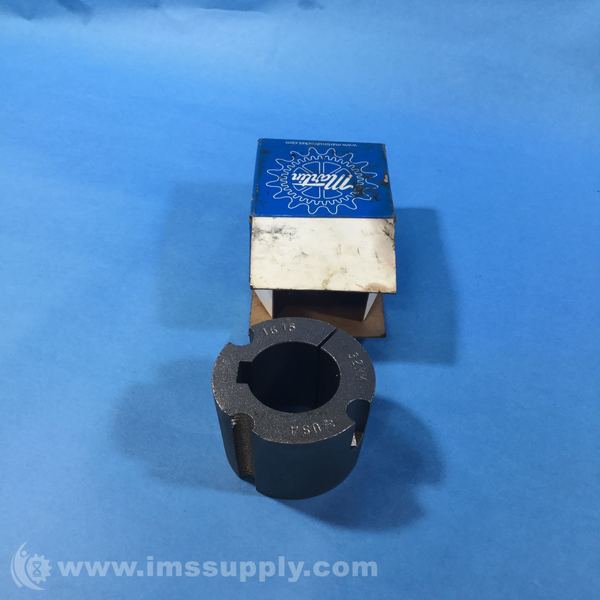

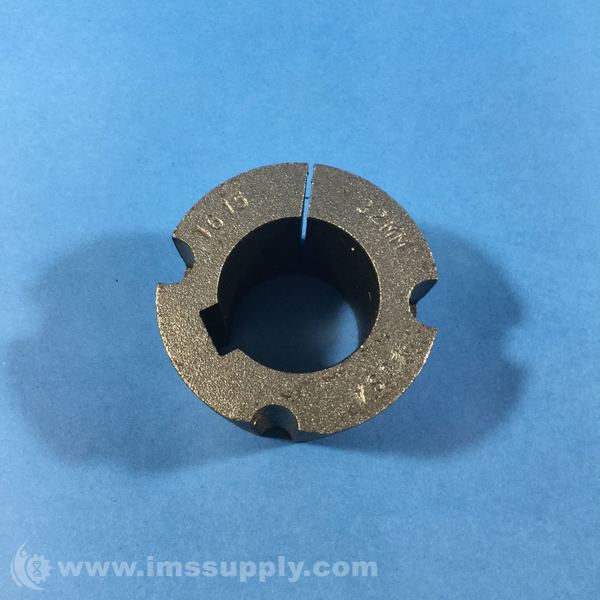

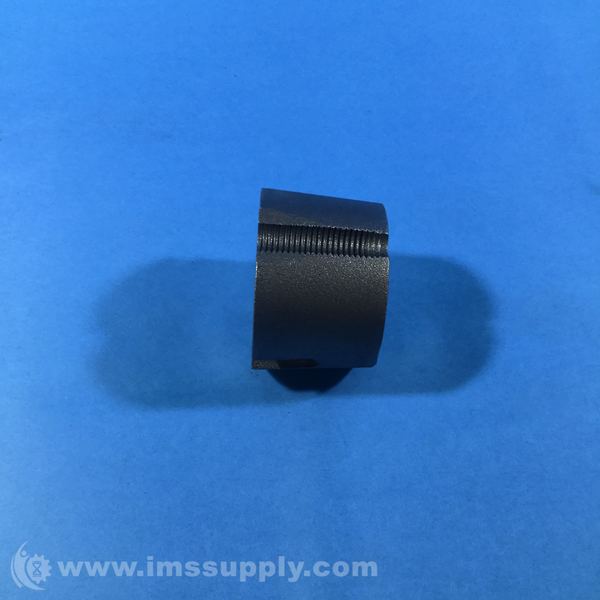

Martin 1615 32mm Taper-Lock Bushing
Specifications:
- Bore Diameter: 32 mm
- Maximum hub outside diameter: 3 (Steel) in, 3-1/2 (Class 20 Gray Iron) in, 3-1/4 (Class 30 Gray Iron) inch
- Outside diameter: 2-1/4 inch
- Bolt circle diameter: 2-1/8 inch
- Length through bore: 1-1/2 inch
- Number of bolt holes: 2
- Bushing size: 1615
- Screw thread size: 3/8-16 inch
- Bore type: Finished w/ Keyway
- Screw length: 5/8 inch
- Keyway size:10 x 3.3 mm
- Screw torque: 175 in-lbs
