MARTIN 2012 3/4 TAPER LOCK BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 2012 3/4
IMS Product Code: 2133168
Packaging: Sold Individually
Description:

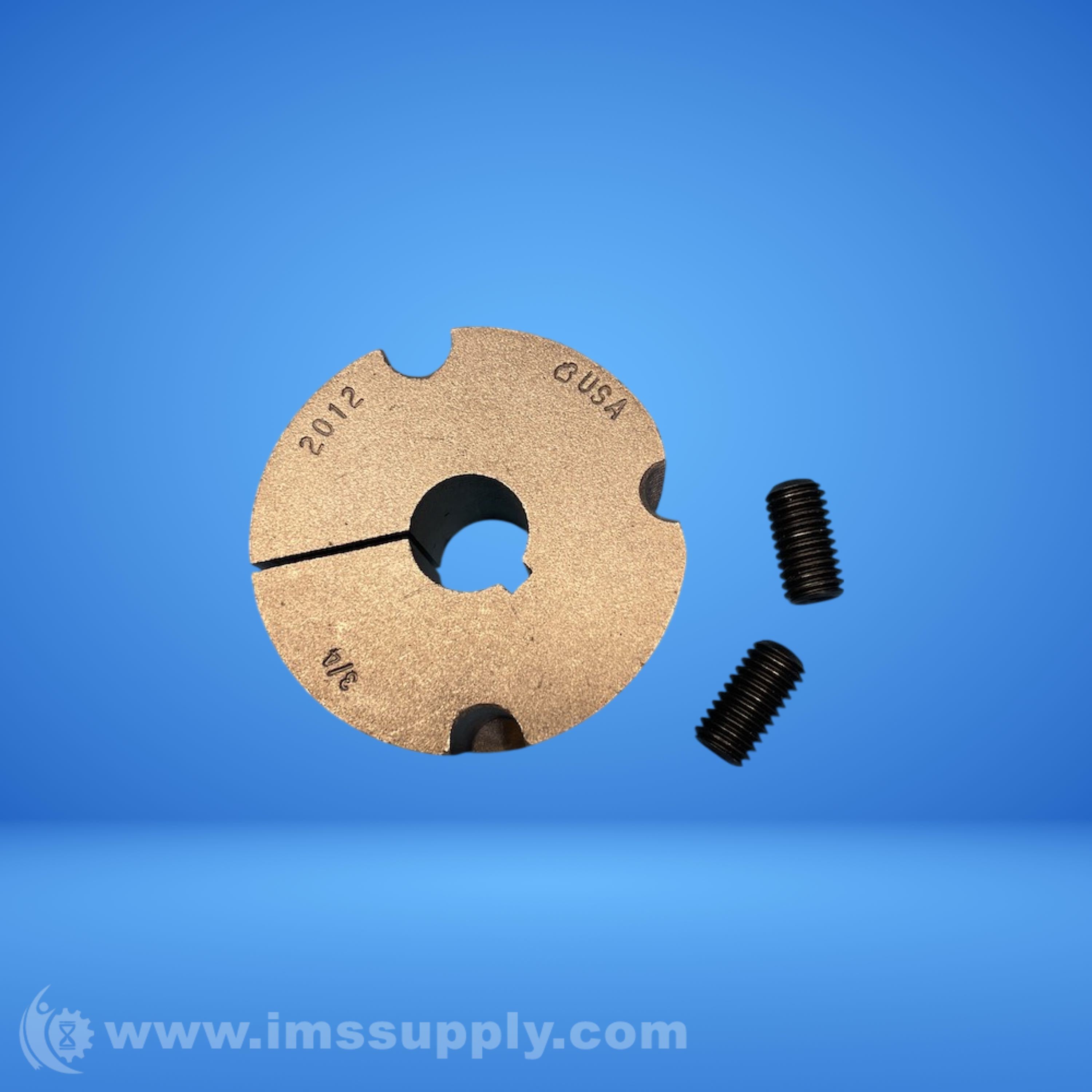

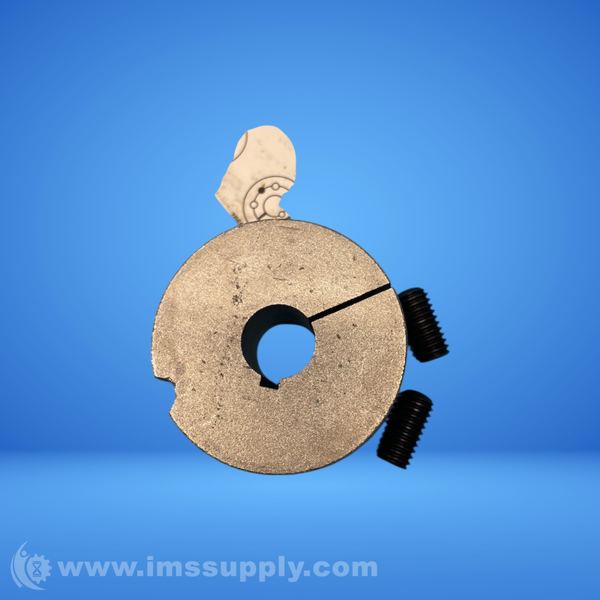

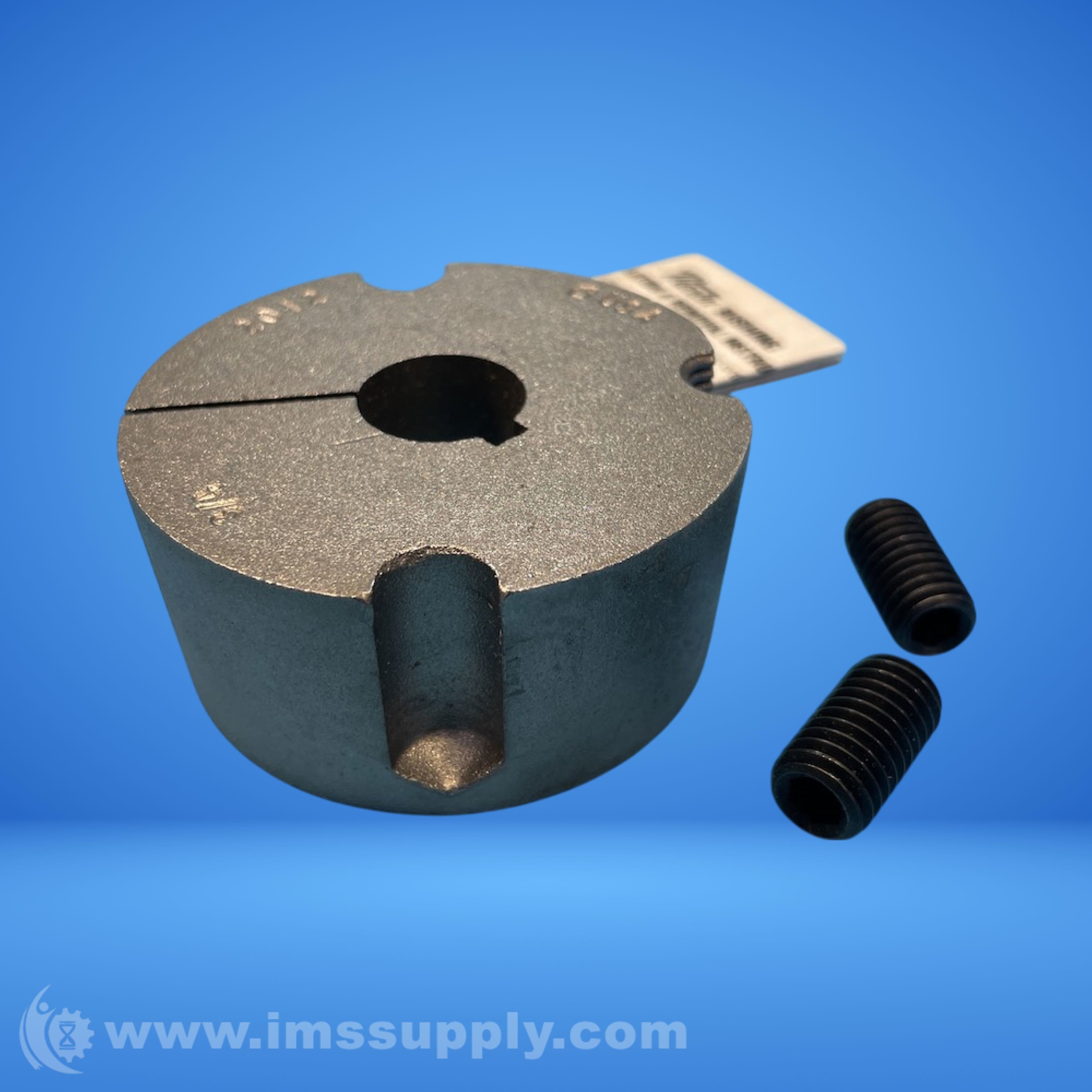

Martin 2012 3/4 Taper Lock Bushing
Taper lock bushing with 3/4 inch bore diameter, 2-3/4 inch outside diameter, and 8 degree taper. Made of steel with 2 bolt holes and 7/16 x 7/8 inch screw size. Overall length is 1-1/4 inches with 3/16 x 3/32 inch keyway.
Specifications
- Bushing Size: 2012
- Bore Diameter: 3/4 in
- Bore Type: Finished w/ Keyway
- Outside Diameter: 2-3/4 in
- Hub Diameter: 3-7/8 in
- Taper: 8 deg
- Material: Steel
- Keyway Size: 3/16 x 3/32 in
- Overall Length: 1-1/4 in
- Bolt Circle Diameter: 2-5/8 in
- Number of Bolt Holes: 2
- Screw Size: 7/16 x 7/8 in
- Torque Rating: 7150 in-lb
- Weight: 1.58 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
