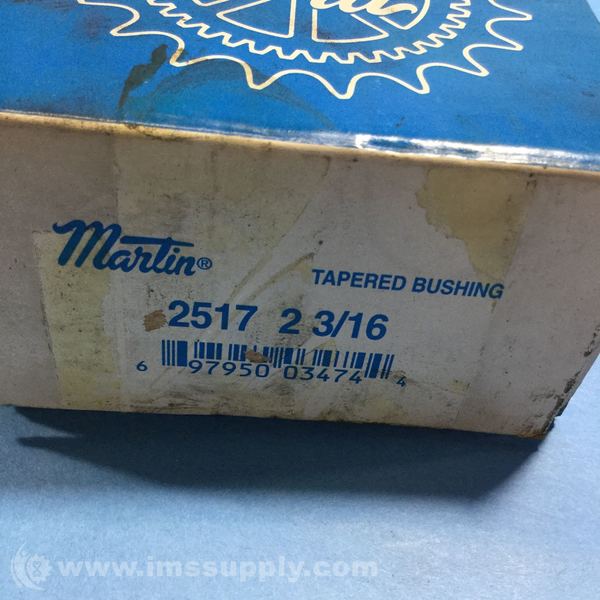

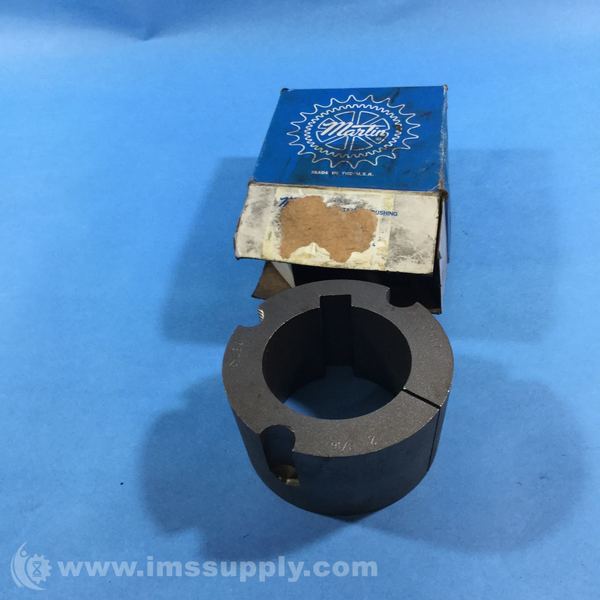

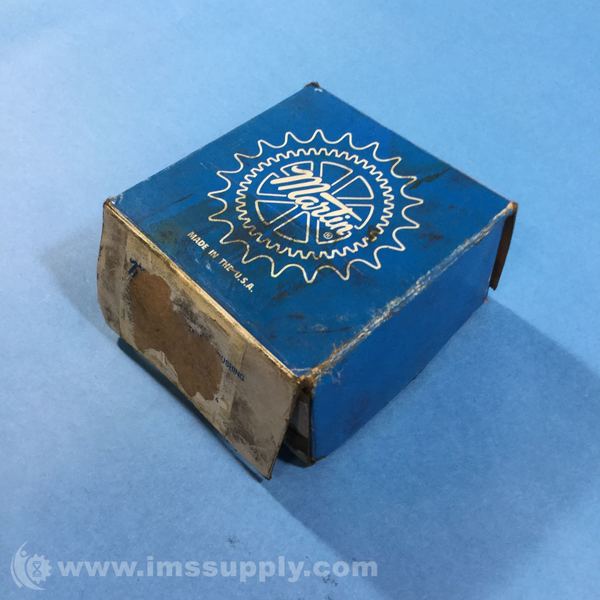

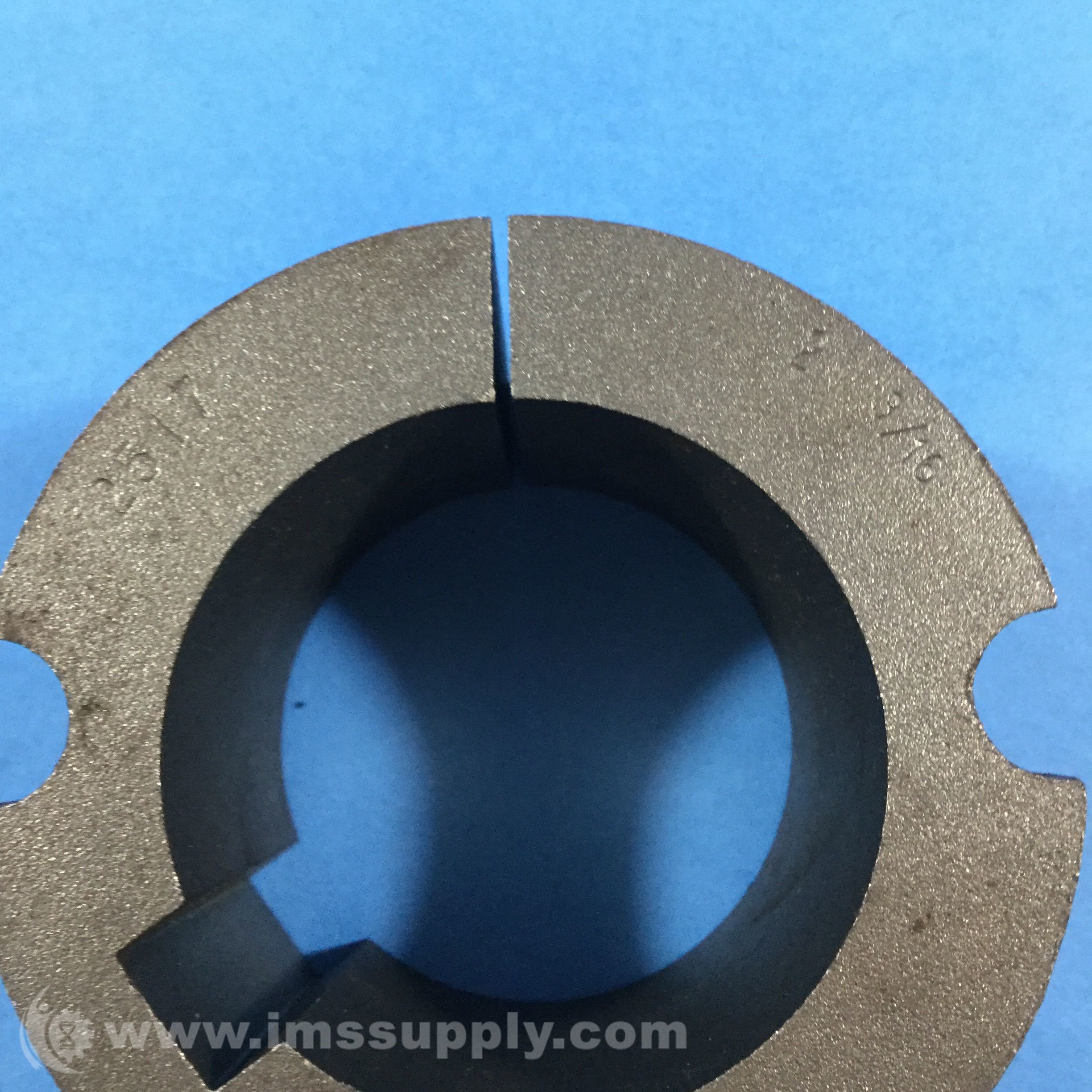

MARTIN 2517 2 3/16 TAPER LOCK BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 2517 2 3/16
IMS Product Code: 1793322
Packaging: Sold Individually
Description:
Martin 2517 2 3/16 Taper Lock Bushing
Taper Lock Bushing - 2517 Series, 2-3/16 in Bore, 1/2 x 1/4 in Keyway, STEEL Material
Specifications
- Bushing Size: 2517
- Barrel Diameter Large End: 3.375 in
- Bore Type: Finished w/ Keyway
- Bore Diameter: 2.1875 in
- Keyway Size: 1/2 x 1/4 in
- Barrel Length: 1.75 in
- Outside Diameter: 3-3/8 in
- Length Through Bore: 1.75
- Material: STEEL
- Stocked Finished Bore: 2.1875 in
- Screw Torque: 430 in
- Max Hub Outside Diameter: 4-3/8 in, 4-7/8 in, 5-1/2 in
- Storage Dimension Height: 1.875 in
- Bolt Circle Diameter: 3-1/4 in
- Storage Dimension Length: 3.5 in
- Number Of Bolt Holes: 2
- Screw Thread Size: 1/2-13 in
- Storage Dimension Width: 3.5
- Screw Length: 1 in
- Weight: 1.97 lbs
- Wrench Torque: 430 in/lb
