More Views

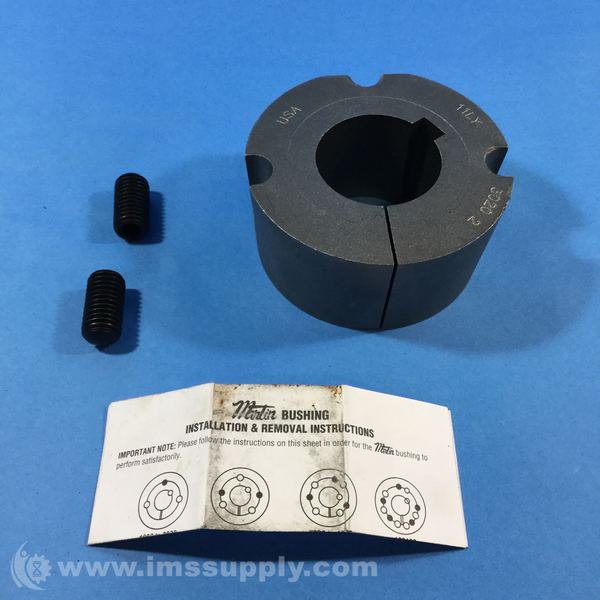

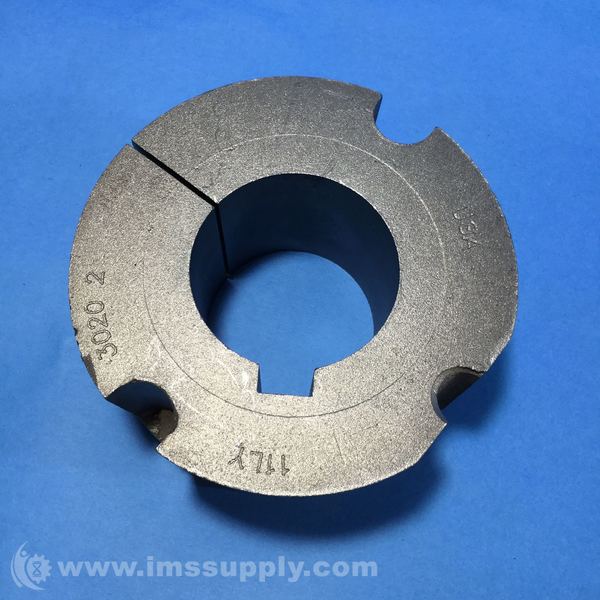

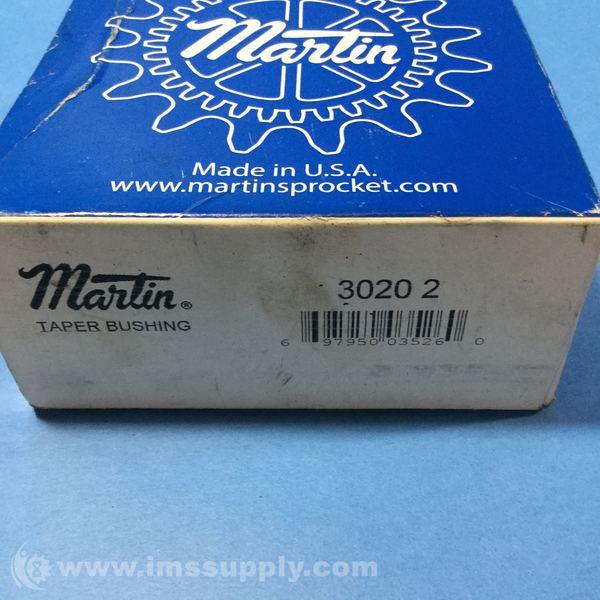

MARTIN 3020 2 TAPER LOCK BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 3020 2
IMS Product Code: 1792079
Packaging: Sold Individually
Description:
Martin 3020 2 Taper Lock Bushing
Taper Lock Bushing - 3020 Series, 2 in Bore, 1/2 x 1/4 in Keyway, STEEL Material
Specifications
- Bushing Size: 3020
- Barrel Diameter Large End: 4.25 in
- Bore Type: Finished w/ Keyway
- Bore Diameter: 2.0000 in
- Keyway Size: 1/2 x 1/4 in
- Barrel Length: 2 in
- Outside Diameter: 4-1/4 in
- Length Through Bore: 2
- Material: STEEL
- Stocked Finished Bore: 2 in
- Screw Torque: 800 in
- Max Hub Outside Diameter: 5-5/8 in, 6-1/4 in, 7 in
- Storage Dimension Height: 2.125 in
- Bolt Circle Diameter: 4 in
- Storage Dimension Length: 4.625 in
- Number Of Bolt Holes: 2
- Screw Thread Size: 5/8-11 in
- Storage Dimension Width: 4.625
- Screw Length: 1-1/4 in
- UPC_NO: 697950035260
- Weight: 5.01 lbs
- Wrench Torque: 800 in/lb
- Brand: Martin
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
