MARTIN 4 C 240 F V-BELT PULLEY
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 4 C 240 F
IMS Product Code: 1792291
Packaging: Sold Individually
Description:

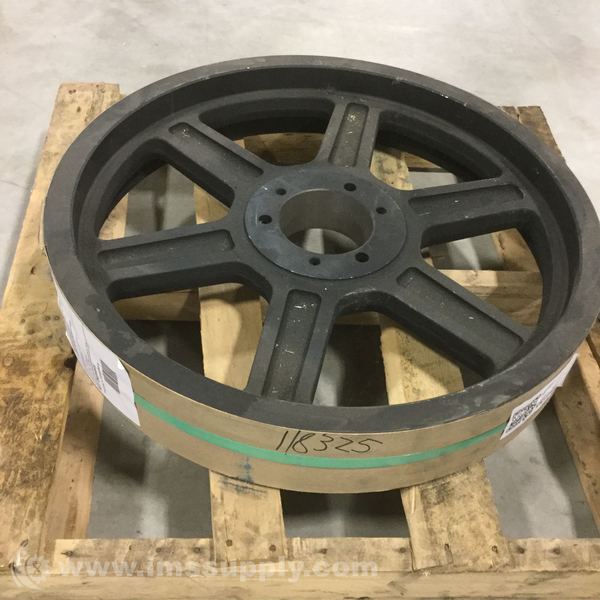

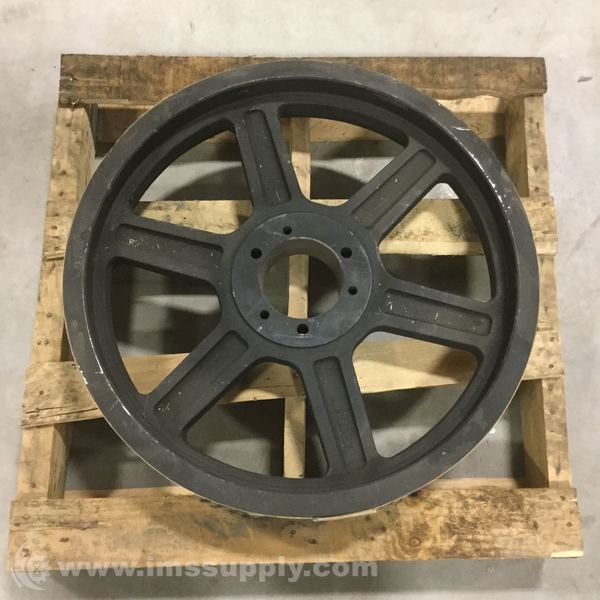

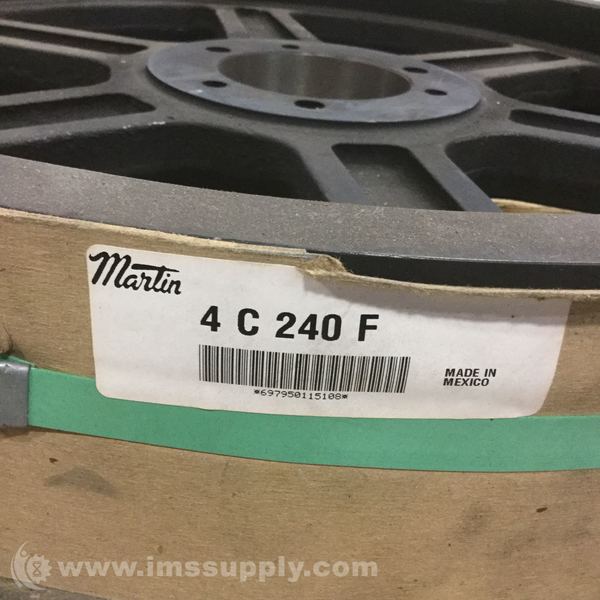

Martin 4 C 240 F V-Belt Pulley
V-Belt Pulley - C Belt Section, 4 Groove, Bushing Required Bore Size, 24.4000 in O.D., QD Bushed, F Series Bushing, Cast Iron Material
Specifications
- Belt Section Size: C
- Number Of Grooves: 4
- Outside Diameter: 24.4000 in
- Bore Type: Bushed
- Bushing Series: F
- Bore Diameter: Bushing Required
- Material: Cast Iron
- Length Through Bore: 3.625 in
- Face Width: 4.3750 in
- Bushing Bore Range: 1.0000 to 4.0000 in
- Pitch Diameter: 24 in
- Overall Width: 4 3/8 in
- Pulley Construction: Arm / Spoke
- Weight: 116.90 lbs
- Mounting Type: STD
- Type: Arm/Spoke Type A-3
- Bushing Type: F
- Suitable For Use With: C Cross Section Belt
