MARTIN 6J 7/8 QUADRA-FLEX COUPLING FLANGE
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: 6J7/8
IMS Product Code: 2148054
Packaging: Sold Individually
Description:

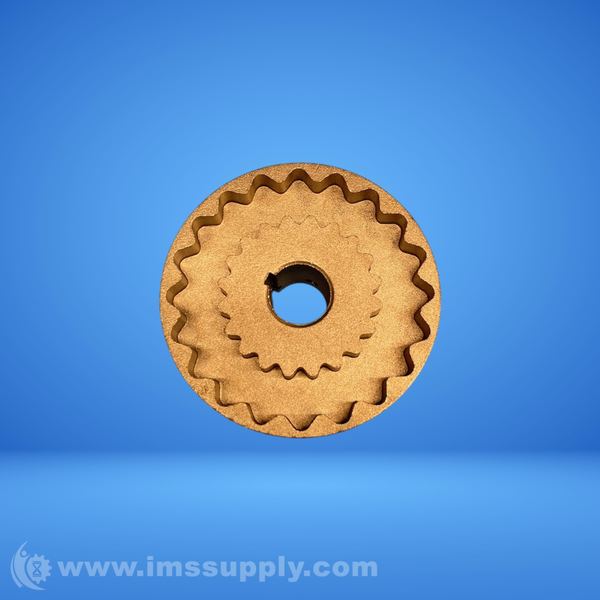

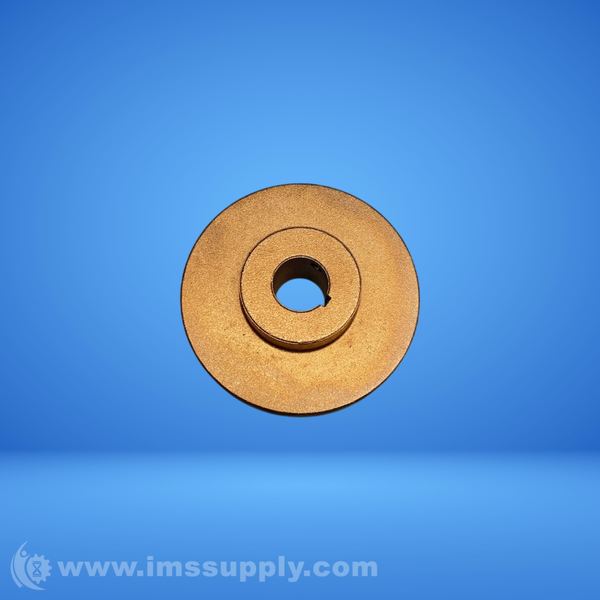

Martin 6J 7/8 Quadra-Flex Coupling Flange
Steel Spacer Flange, Size 6, 0.875in Bore, Quadraflex Series
Specifications
- Hub Flange Type Code: J
- Coupling Size Code: 6
- Bore Type: Bored to Size
- Bore Diameter: 0.875in
- Hub Type: Spacer Flange
- Flange Diameter: 4in
- Length Through Bore: 3.3125in
- Coupling Overall Length: 3-5/16in
- Hub End Outside Diameter: 1-15/16in
- Torque Capacity: 1800in
- Max Rpm: 6000rpm
- Horsepower @ 100 RPM: 0.71 (TPR) hp, 2.9 (Hytrel) hp
- Series: Quadraflex
- Material: Steel
- Outside Diameter: 4in
- Product Type: Sleeve Coupling Flanges
- Coupling Size: 06
- Hub Diameter: 1-15/16in
- Hub Length: 19/32in
- Keyway Size: 3/16 x 3/32in
- Maximum Speed: 6000rpm
- Screw Size: 1/4-20 x 1/4in
- Type: Bored-to-Size Type J
