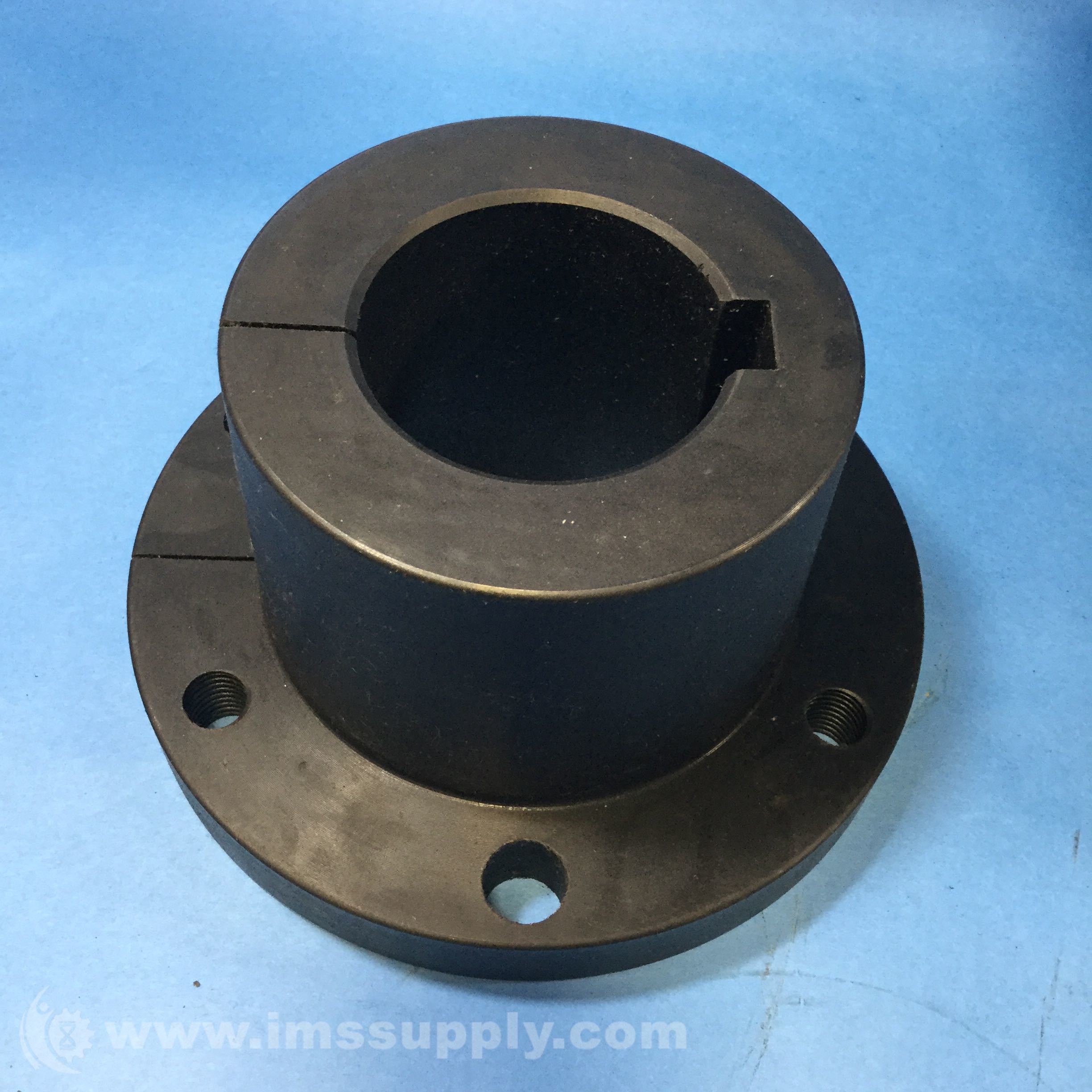

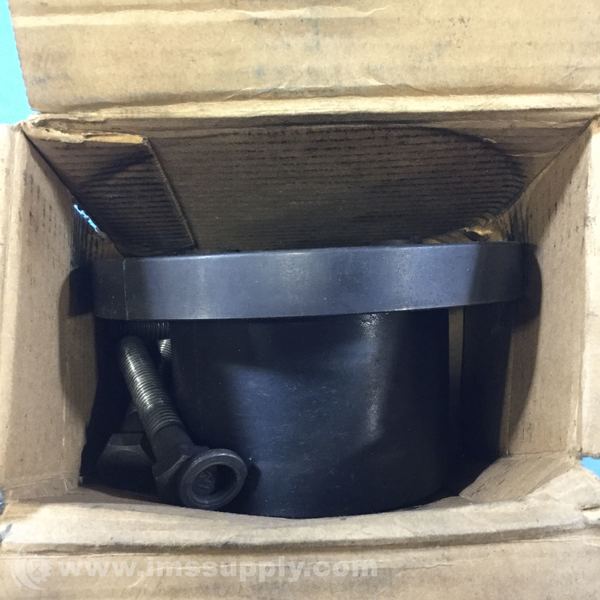

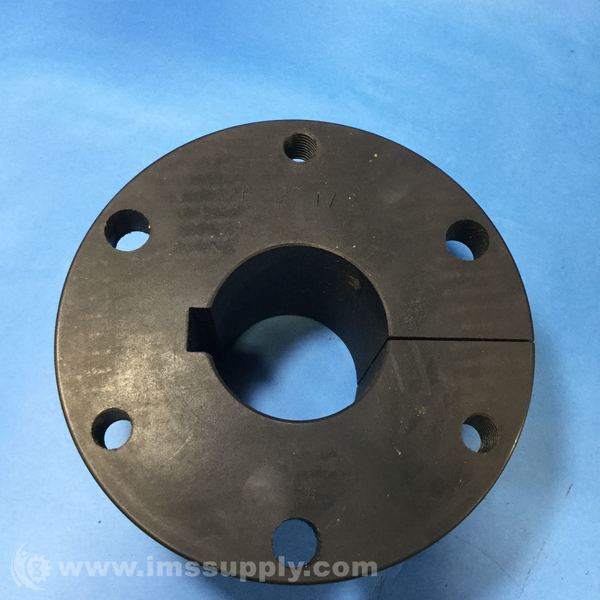

MARTIN F 2 1/2 BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: F 2 1/2
IMS Product Code: 1791727
Packaging: Sold Individually
Description:
Martin F 2 1/2 Bushing
Specifications:
- Bore Diameter: 2.5 in
- Screw Torque: 900 in-lbs
- Flange Outside Diameter: 6.625 in
- Barrel Diameter: 4.437 in
- Flange Thickness: 0.8125 in
- Barrel Length: 2-13/16 in
- Length Through Bore: 3.625 in
- Bolt Circle Diameter: 5-5/8 in
- Bushing Size: F
- Number of Bolt Holes: 3
- Bore Type: Finished w/ Keyway
- Screw Thread Size: 9/16-12 in
- Keyway Size: 5/8 x 5/16 in
- Screw Length:3-5/8 in
- Material: Cast Iron
- Mounting Type:Reverse
