MARTIN JA 1 BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: JA 1
IMS Product Code: 1842015
Packaging: Sold Individually
Description:

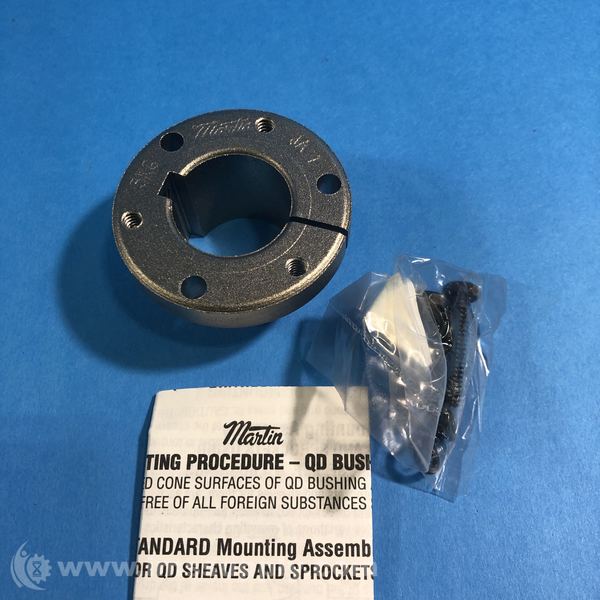

Martin JA 1 Bushing
Steel bushing with 1 inch bore and 1/4 x 1/8 inch keyway.
Specifications
- Bore Size: 1"
- Keyway: 1/4" x 1/8"
- Material: Steel
- Flange Diameter: 2.000 in.
- Bore Type: Standard
- Length Thru Bore: 1.063 in.
- Finished Bore Size: 1.000 in.
- Cap Screw Bolt Circle: 1.665 in.
- Key Way Size: 1/4 X 1/8 in.
- Number of Mounting Cap Screws: 3
- Min Bore Size: 1.000 in.
- Cap Screw Size: 10-24 X 1 in.
- Max Bore Size: 1.125 in.
- Weight: 0.35 lbs.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 17 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships today if ordered in the next 15 hours and 17 minutes.
