MARTIN P8014M115-J HIGH TORQUE SPROCKET
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: P8014M115-J
IMS Product Code: 1791748
Packaging: Sold Individually
Description:

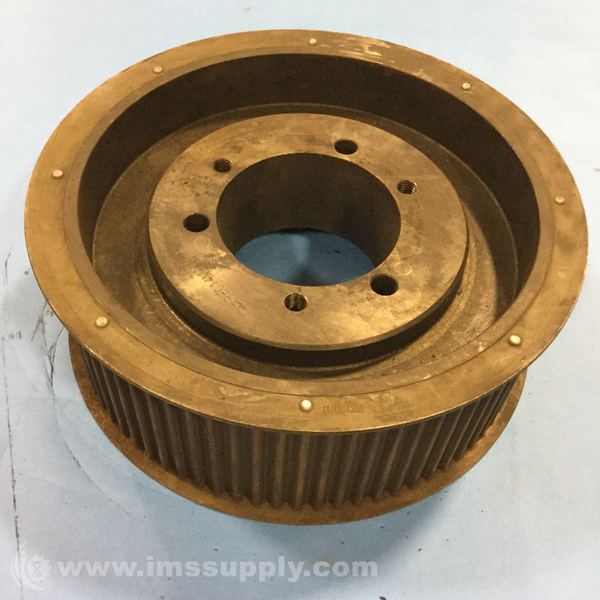

Martin P8014M115-J High Torque Sprocket
Martin HTS® High Torque Sprocket, Web Type DF-2, QD Bushed Bore Type, 1-1/4 to 4-1/2 in Bore Dia, 13.9295 in Outside Dia, 14.036 in Pitch Dia, 80 Grooves, 0.55118 in Pitch, 5-1/4 in Face Width, 14.63 in Flange Dia, J Bushing, Cast Iron
Specifications
- Belt Pitch: 0.55118
- Belt Type: 14MM
- Belt Width: 4.5276 in
- Bore Diameter: 1-1/4 to 4-1/2 in
- Bore Type: QD Bushed
- Bushing Series: J
- Face Width: 5-1/4 in
- Flange Outside Diameter: 14.625 in
- Hub Diameter: 9 in
- Length Through Bore: 3.193 in
- Material: Cast Iron
- Number of Flanges: 2
- Number Of Hubs: 2
- Number Of Teeth: 80
- Outside Diameter: 13.9295 in
- Pitch Diameter: 14.036 in
- Pulley Construction: Webbed
- Sprocket Type: HTS - High Torque Sprocket
- Type: Web Type DF-2
- Weight: 87.00 lbs
- Suitable For Use With: RPP®, RPP® Plus®, Hawk Pd® and HTD® belts
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 12 minutes.
