MARTIN R2 2 5/8 SPLIT TAPER BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: R2 2 5/8
IMS Product Code: 1841895
Packaging: Sold Individually
Description:

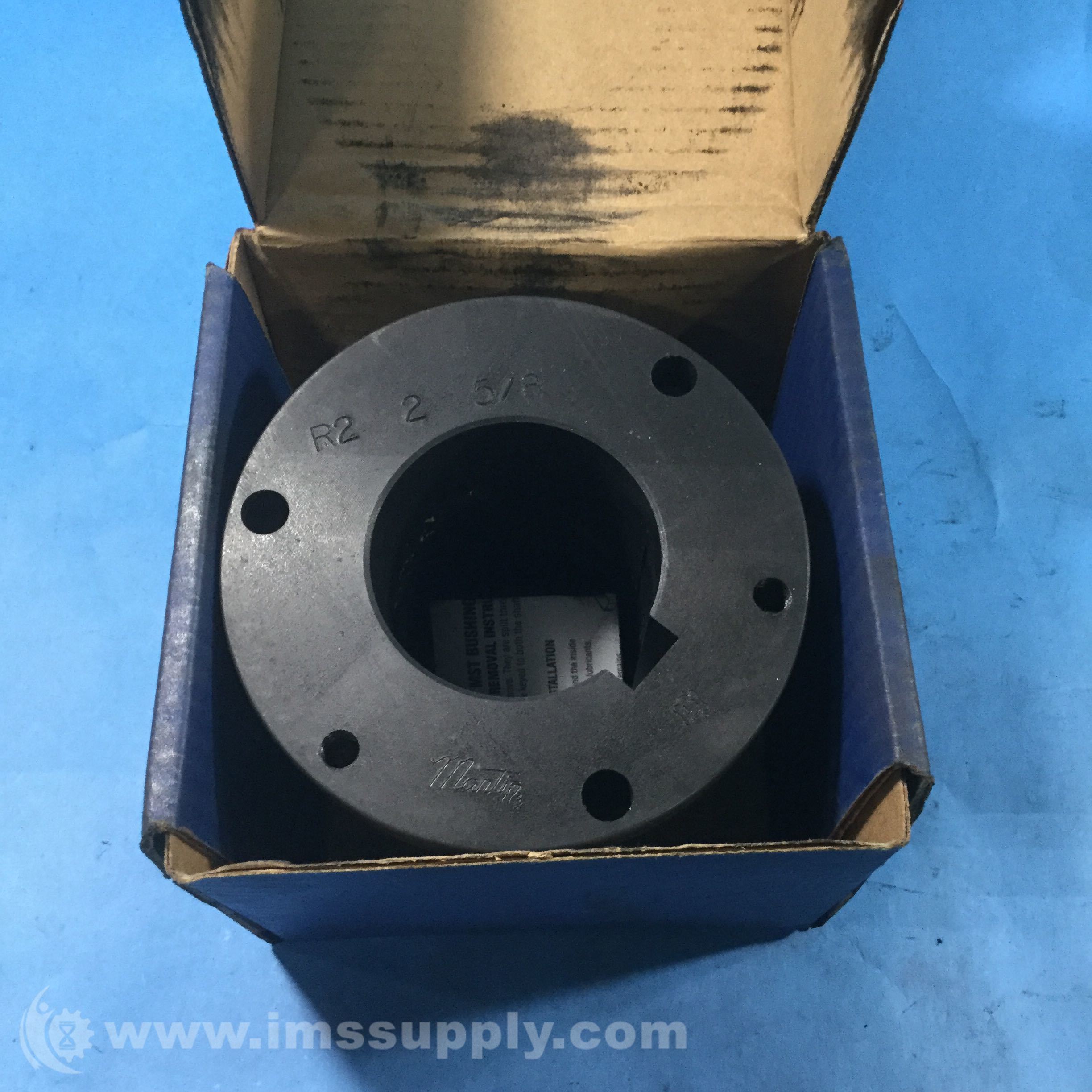

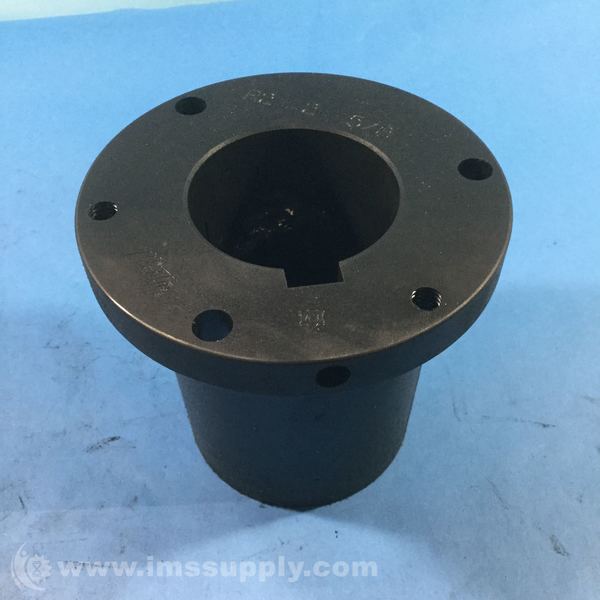

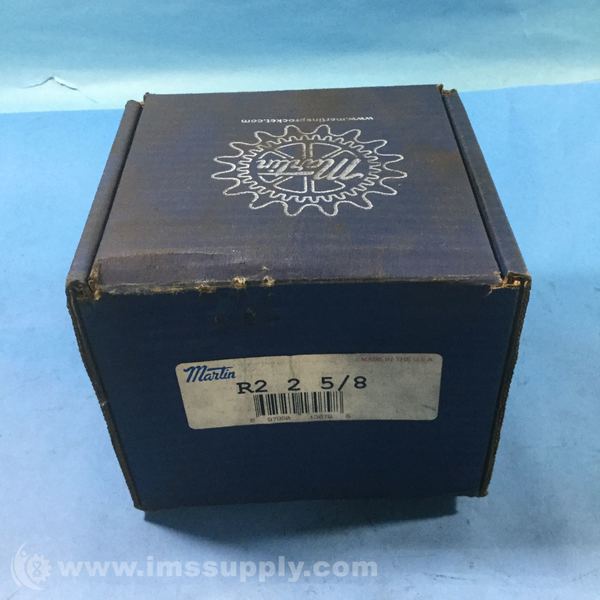

Martin R2 2 5/8 Split Taper Bushing
R2 Bushing, 2.6250 in Bore, 5.375 in Flg OD, 4.875 LTB, DUCTILE IRON Material
Specifications
- Bushing Size: R2
- Bore Type: Finished w/ Keyway
- Bore Diameter: 2.6250 in
- Keyway Size: 5/8 x 5/16 in
- Material: DUCTILE IRON
- Flange Outside Diameter: 5.375 in
- Flange Thickness: 0.625 in
- Flange Type: Solid Flange
- Length Through Bore: 4.875
- Barrel Diameter Large End: 4 in
- Bolt Circle Diameter: 4.62 in
- Number Of Bolt Holes: 3
- Screw Thread Size: 3/8 in
- Screw Length: 1-3/4 in
- Mounting Type: Conventional
- Product Type: Split Taper Bushings
- Weight: 11.00 lbs
- Screw Torque: 348 in
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 26 minutes.
