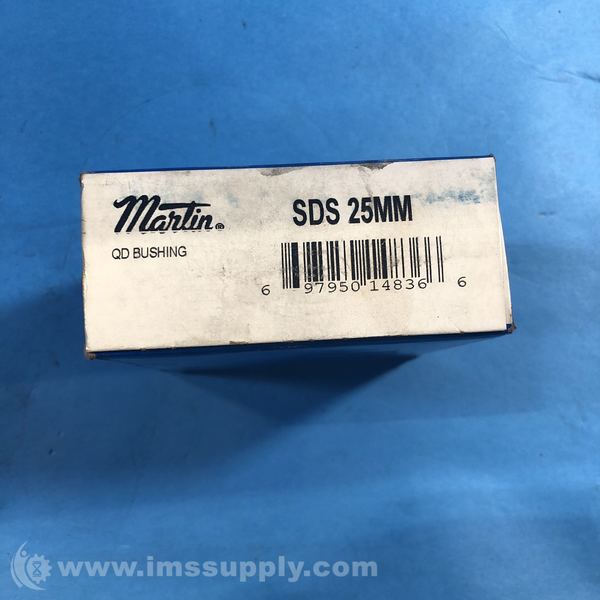

MARTIN SDS 25MM CAST IRON BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: SDS 25MM
IMS Product Code: 1907444
Packaging: Sold Individually
Description:
Martin SDS 25MM Cast Iron Bushing
Cast iron bushing with 25 mm bore, finished with keyway, and reverse mounting type.
Specifications
- Bushing Size: SDS
- Bore Type: Finished w/ Keyway
- Keyway Size: 8 x 7 mm
- Bore Diameter: 25 mm
- Flange Outside Diameter: 3.187 in
- Flange Thickness: 0.5 in
- Length Through Bore: 1.375 in
- Material: Cast Iron
- Screw Torque: 108 in
- Barrel Diameter: 2.187 in
- Barrel Length: 0.875 in
- Bolt Circle Diameter: 2-11/16 in
- Number Of Bolt Holes: 3
- Screw Thread Size: 1/4-20 in
- Screw Length: 1-3/8 in
- Mounting Type: Reverse
- Weight: 2.10 lbs
