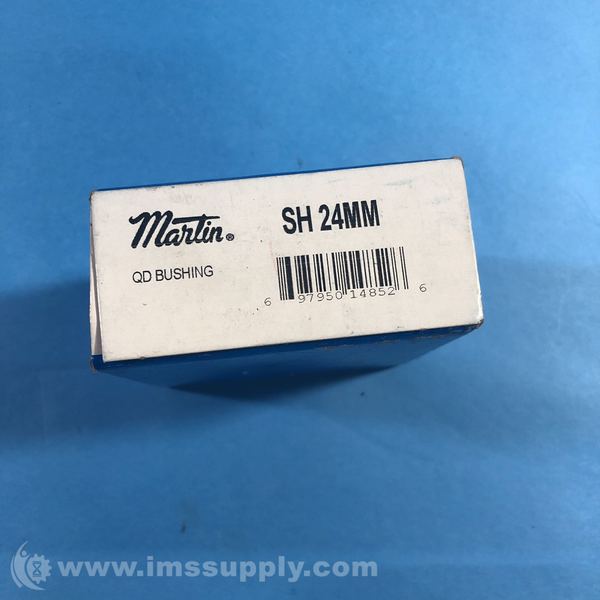

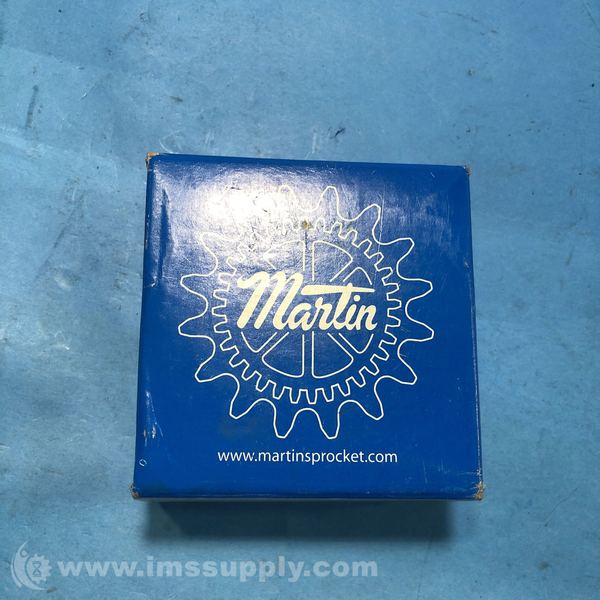

MARTIN SH 24MM QD BUSHING
Quick Overview
Manufactured By: MARTIN
Manufacturer Part Number: SH 24MM
IMS Product Code: 1907402
Packaging: Sold Individually
Description:
Martin SH 24MM QD Bushing
Quick Disconnect Bushing, 24 mm Bore, Steel Material
Specifications
- Bushing Size: SH
- Bore Type: Finished w/ Keyway
- Keyway Size: 3.3 x 8 mm
- Bore Diameter: 24 mm
- Flange Diameter: 2.688 in
- Flange Thickness: 0.438 in
- Length Through Bore: 1.313 in
- Material: Steel
- Torque Rating: 3500 in-lb
- Bolt Circle Diameter: 2-1/4 in
- Number of Bolt Holes: 3
- Screw Size: 1/4-20 x 1-3/8 in
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 14 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 14 minutes.
