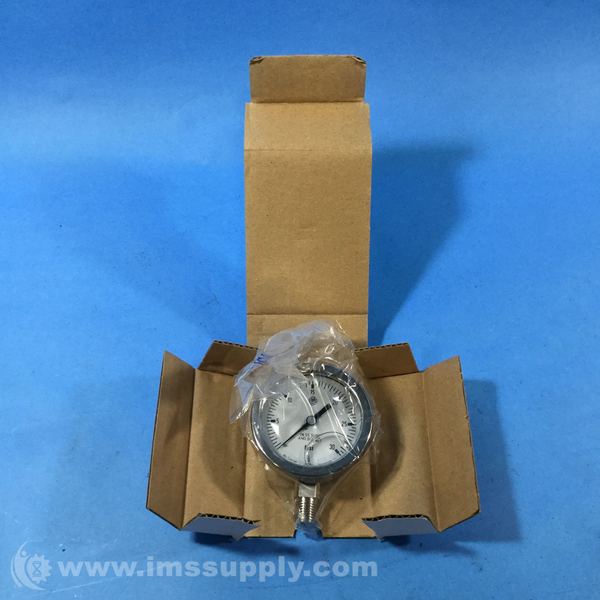

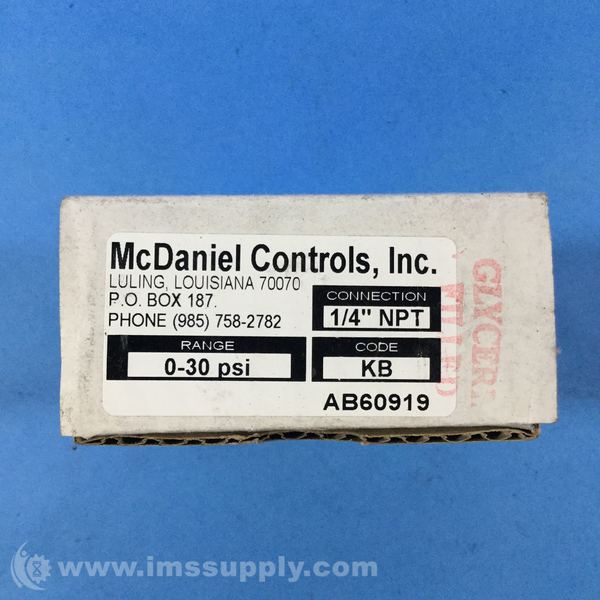

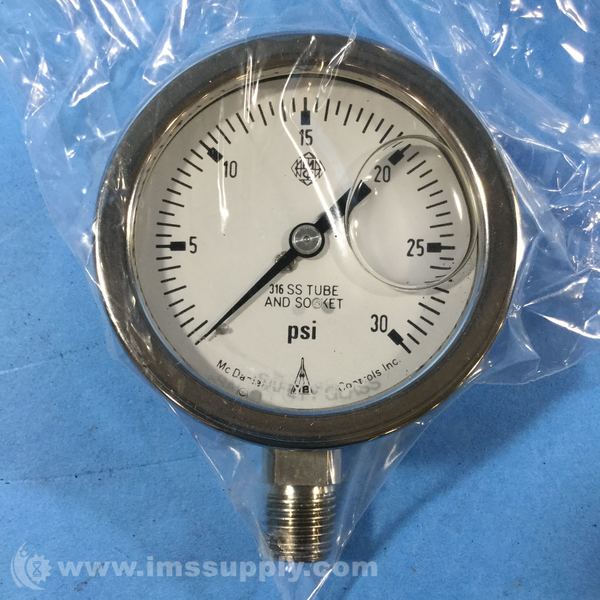

MCDANIEL CONTROLS KB MODEL K GAUGE, 2-1/2" SS, 0-30PSI, 1/4" NPT
Quick Overview
Manufactured By: MCDANIEL CONTROLS, INC.
Manufacturer Part Number: KB
IMS Product Code: 1792053
Packaging: Sold Individually
Description:
Mcdaniel Controls KB Model K Gauge, 2-1/2" SS, 0-30psi, 1/4" NPT
Specifications:
- Dial size: 2 1/2 inch (63mm)
- Fillable: Yes
- Connection: 1/4" NPT Standard (1/8" NPT available on special request)
- Case: 304 Stain.Steel
- Internals: 316 Stainless Steel
- Wetted parts: 316 Stainless Steel Heavy Duty Connection, Socket and Bourdon Tube
- Accuracy: 1% FULL SCALE ASME B40.1 Grade 1A (1-½% Full Scale Low Pressure, 15k and 20k ranges)
- Ranges: Up to 20,000 psi (Selected range: 0-30 psi )
- Mount: Standard Bottom Connection , C-Center back connected , L-Lower Back Connection , P-Front Flange Panel Mount/lower back connection , R-Rear Flange-(For Wall Mounting) , U-Panel Mount/lower back u-clamp
