MCGILL CCFE 1 3/4 SB CROWNED CAM FOLLOWER
Quick Overview
Manufactured By: MCGILL
Manufacturer Part Number: CCFE 1 3/4 SB
IMS Product Code: 2153471

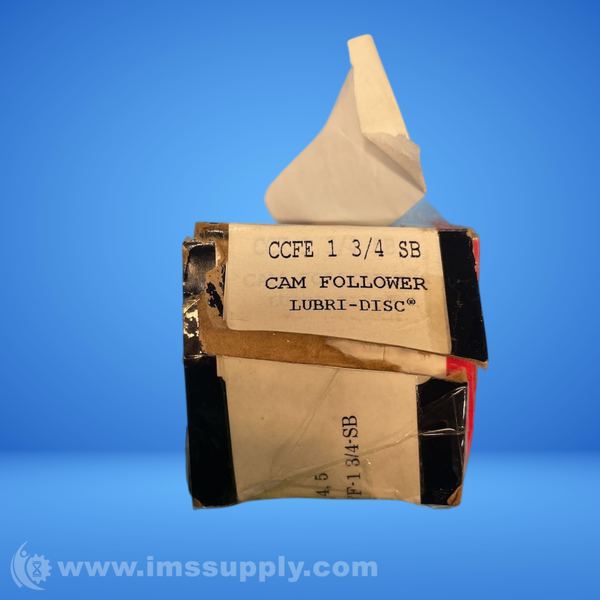

Packaging: Sold Individually
Description:

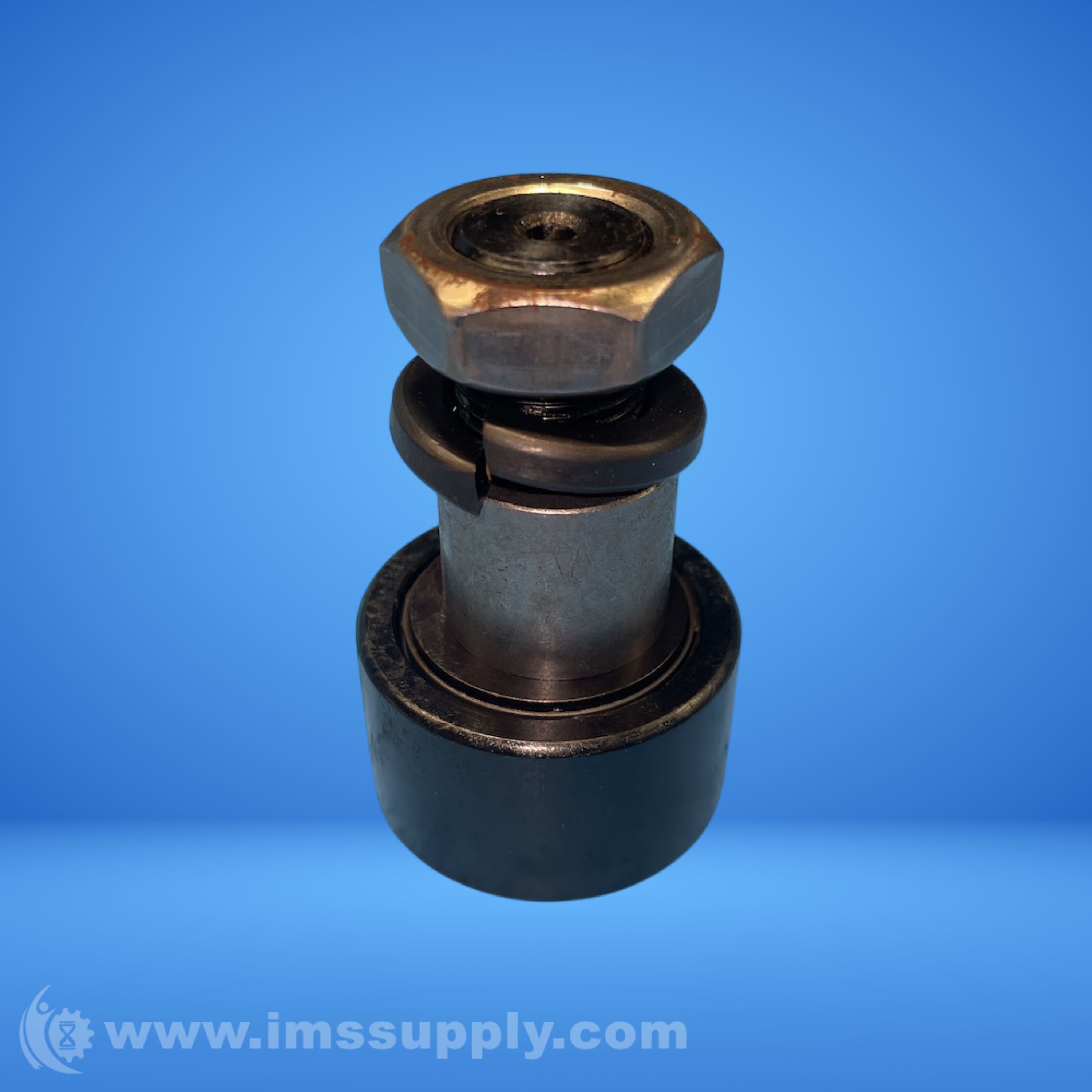

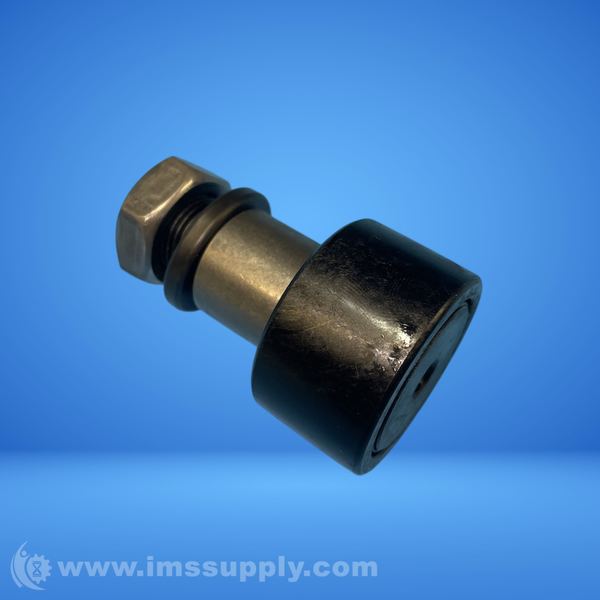

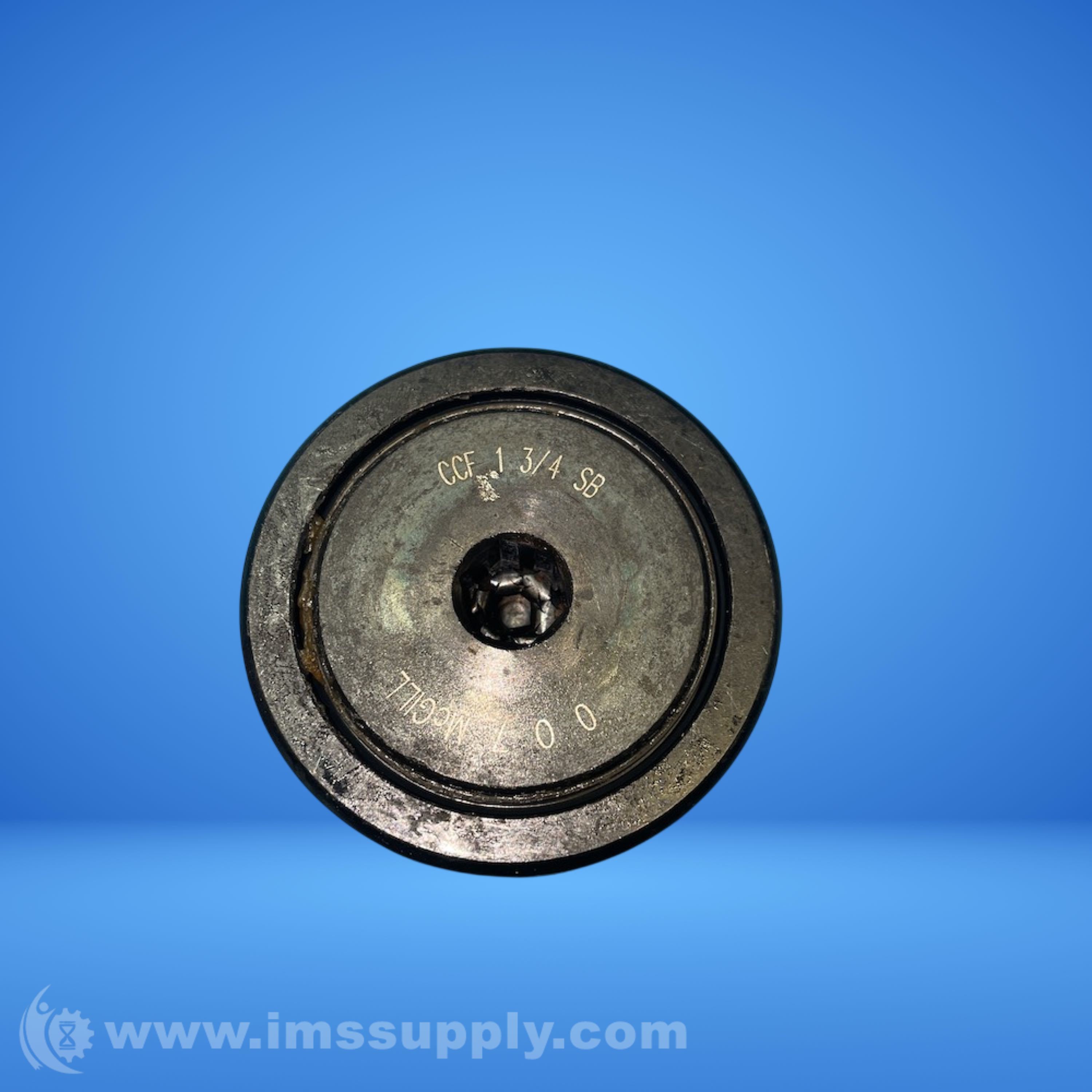

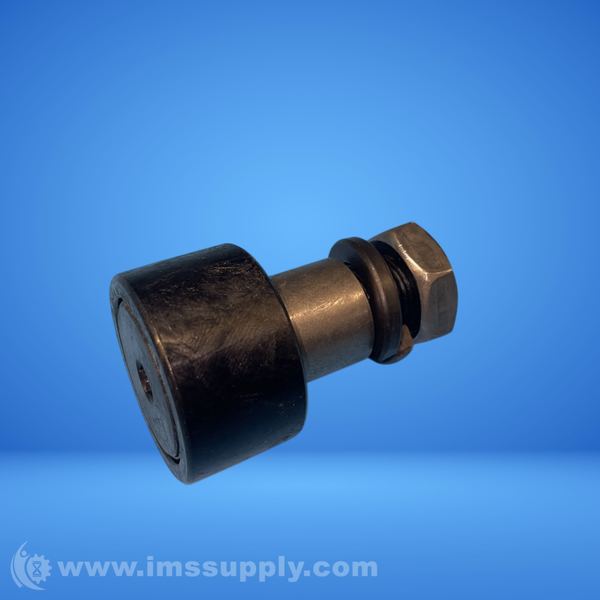

McGill CCFE 1 3/4 SB Crowned Cam Follower
Crowned cam follower with 1.75 inch roller diameter, 1 inch roller width, 0.75 inch stud diameter, and 3/4-16 thread. Made of bearing steel with black oxide finish. Sealed with LUBRI-DISC seal and features eccentric stud adjustment.
Specifications
- roller diameter: 1.75 in
- roller width: 1 in
- stud diameter: 0.75 in
- stud length: 1.75 in
- thread size: 3/4-16
- material: bearing steel
- finish coating: black oxide finish
- closure type: sealed
- head type: hex hole
- radial dynamic load capacity: 6385 lbf
- radial static load capacity: 6000 lbf
- max rpm: 2200 rpm
- series: inch CAMROL (CF)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 27 minutes.
