MCGILL CF 1 1/2 B CAM FOLLOWER
Quick Overview
Manufactured By: MCGILL
Manufacturer Part Number: CF-1-1/2-B
IMS Product Code: 1862584
Packaging: Sold Individually
Description:

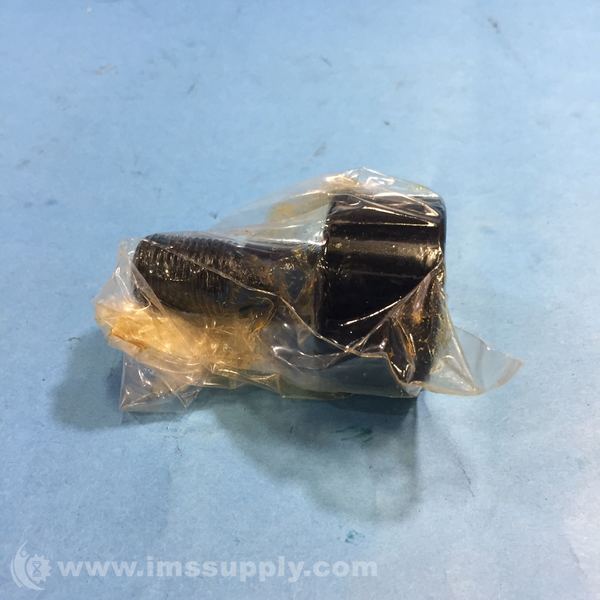

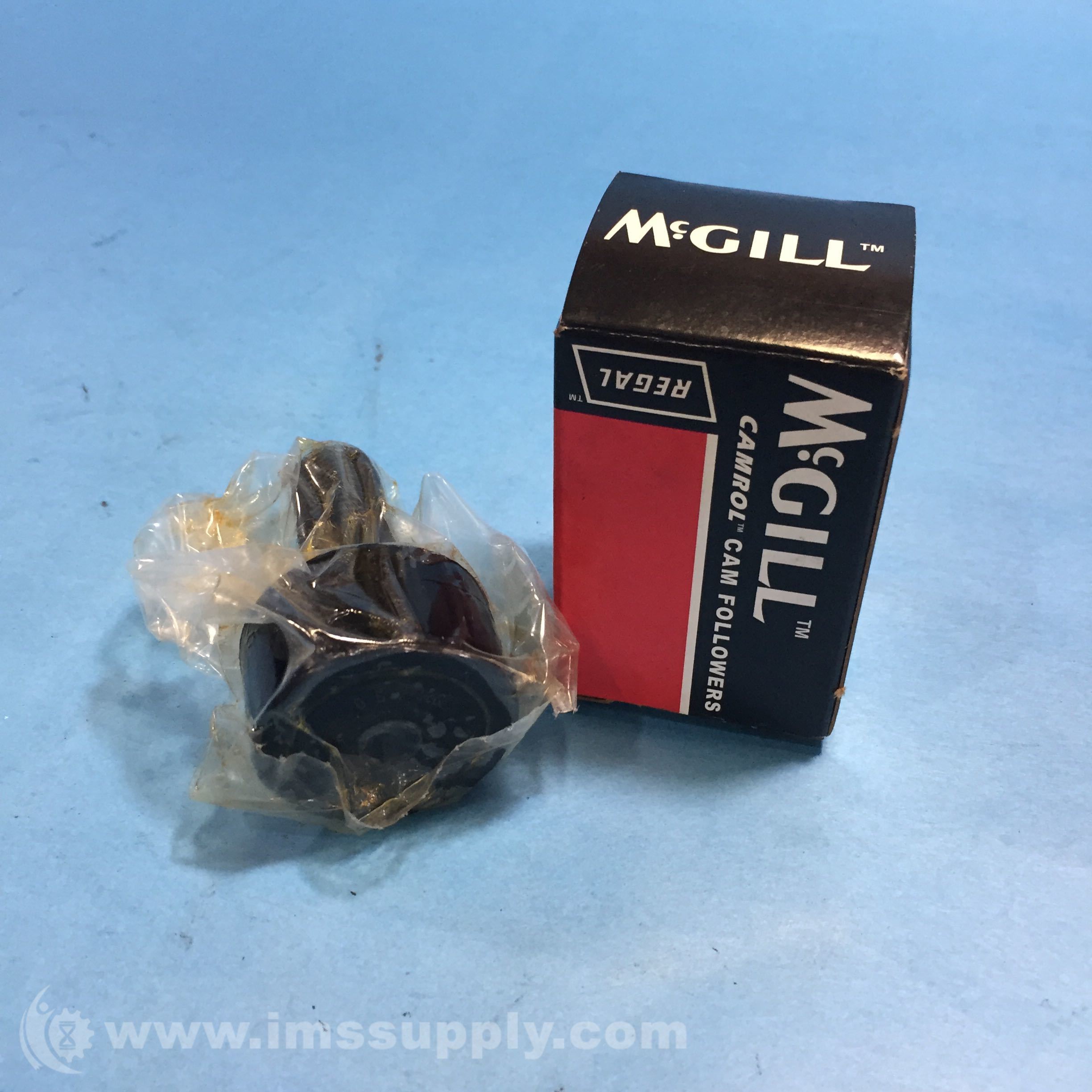

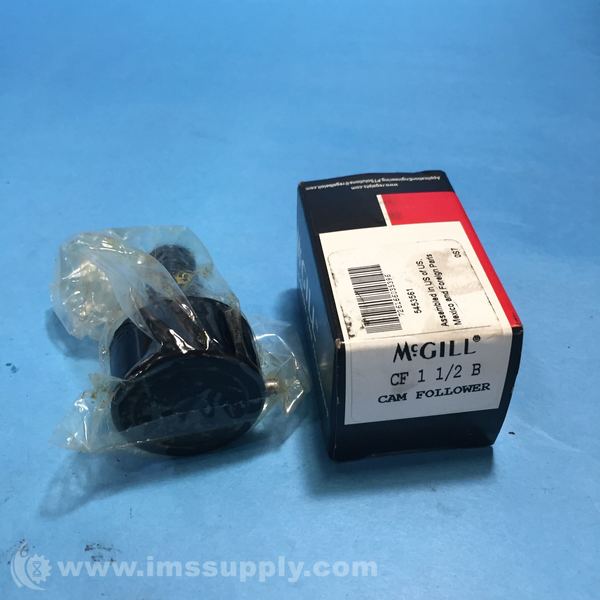

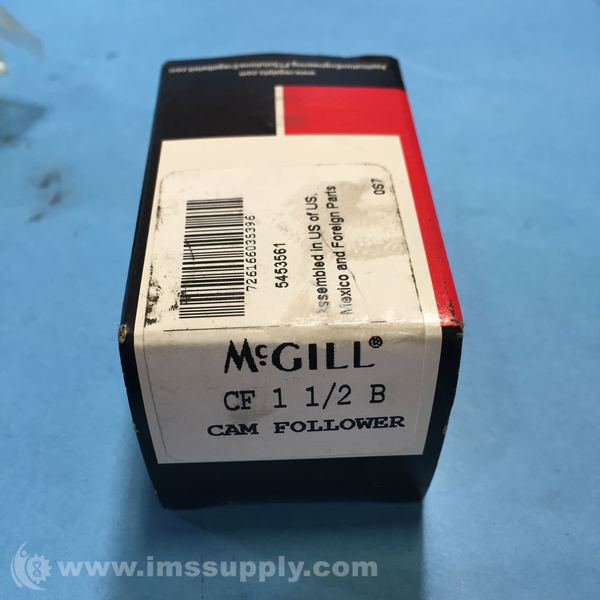

McGill CF 1 1/2 B Cam Follower
Stud type cam follower with 1.5 inch roller diameter, bearing steel material, and black oxide finish.
Specifications
- Series: Inch CAMROL (CF)
- Roller Diameter: 1.5 in
- Roller Width: 0.875 in
- Stud Diameter: 0.25 in
- Stud Type: Standard
- Closure Type: Open
- Head Type: Hex Hole
- Thread Size: 5/8-18
- Radial Dynamic Load Capacity: 4840 lbf
- Radial Static Load Capacity: 5640 lbf
- Max Rpm: 2500 rpm
- Material: Bearing Steel
- Finish Coating: Black Oxide Finish
- Ability to Relubricate: Yes
- Lubrication Fitting Size: 0.1875 in
- Lubrication Hole Location: Stud side
- Minimum Thread Length: 0.75 in
- Oil Hole Center: 0.375 in
- Tolerance Class: P0 Equivalent
- Weight: 0.54 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
