MCGILL CF 9/16 S FLAT CAM FOLLOWER
Quick Overview
Manufactured By: MCGILL
Manufacturer Part Number: CF 9/16 S
IMS Product Code: 1803187
Packaging: Sold Individually
Description:

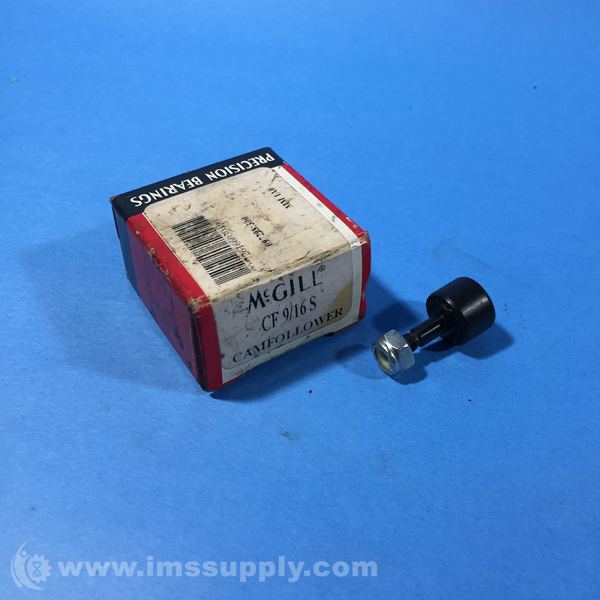

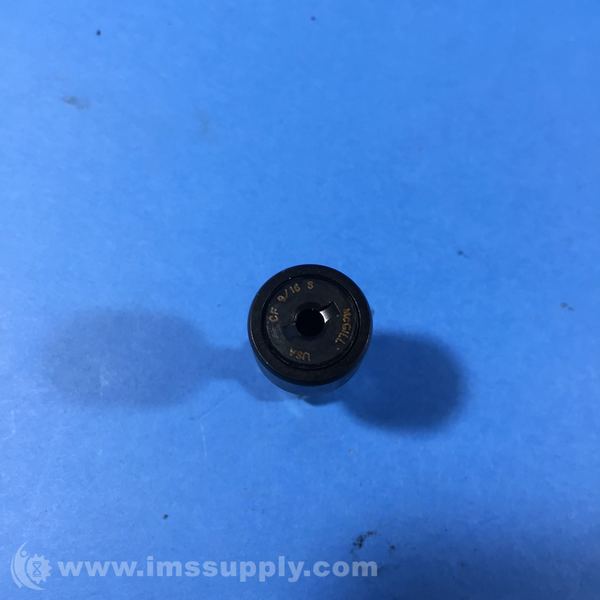

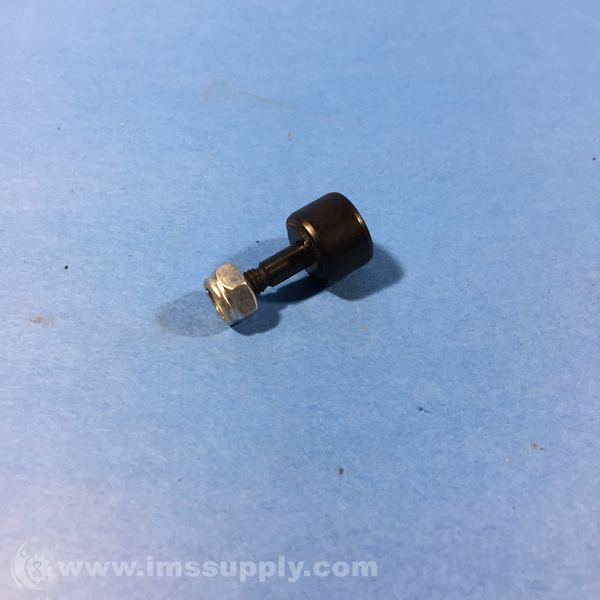

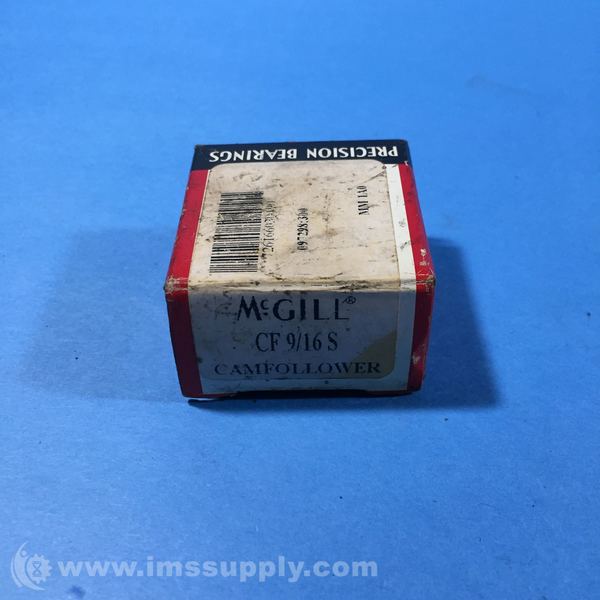

McGill CF 9/16 S Flat Cam Follower
Flat Cam Follower - Inch CAMROL (CF) Series, 0.5625 in Roller Dia, 0.3750 in Roller Width, 0.1875 in Stud Dia, Sealed, Bearing Steel Material
Specifications
- Series: Inch CAMROL (CF)
- Bearing Element: Needle Rollers
- Roller Shape: Flat
- Roller Diameter: 0.5625 in
- Roller Width: 0.3750 in
- Roller Material: Bearing Steel
- Stud Diameter: 0.1875 in
- Stud Type: CF - Standard Stud
- Closure Type: Sealed
- Head Type: Screwdriver Slot
- Thread Size: 10-32
- Radial Dynamic Load Capacity: 680 lbf
- Radial Static Load Capacity: 300 lbf
- Max Rpm: 10000 rpm
- Finish Coating: Black Oxide Finish
- Lubrication Hole Location: Stud End
- Weight: 0.03 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships on Friday, January 2, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
