MCGILL CF5/8S FLAT CAM FOLLOWER
Quick Overview
Manufactured By: MCGILL
Manufacturer Part Number: CF5/8S
IMS Product Code: 2144847
Packaging: Sold Individually
Description:
McGill CF5/8S Flat Cam Follower
Flat Cam Follower - Inch CAMROL (CF) Series, 0.6250 in Roller Dia, 0.4375 in Roller Width, 0.2500 in Stud Dia, Sealed, Bearing Steel Material
Specifications
- Bearing Element: Needle Rollers
- Roller Shape: Flat
- Roller Diameter: 0.6250 in
- Roller Width: 0.4375 in
- Roller Material: Bearing Steel
- Stud Diameter: 0.2500 in
- Stud Type: CF - Standard Stud
- Closure Type: Sealed
- Head Type: Screwdriver Slot
- Thread Size: 1/4-28
- Radial Dynamic Load Capacity: 955 lbf
- Radial Static Load Capacity: 600 lbf
- Max Rpm: 9200 rpm
- Finish Coating: Black Oxide Finish
- Lubrication Hole Location: Stud End
- Series: Inch CAMROL (CF)
- Weight: 0.06 lbs
- Ability to Relubricate: Yes
- Clamping Torque: 35 in-lbf
- Height: 1.75
- Length: 1.75
- Lubrication Fitting Size: 0.125 in
- O.D. Configuration: Cylindrical
- Stud Length: 0.75 in
- Tolerance Class: P0 Equivalent
- Rolling Element: Needle Roller
- Basic Dynamic Rating: 955
- Dynamic Radial Rating: 955
- Limiting Speed: 9200
- Static Limit Load: 600

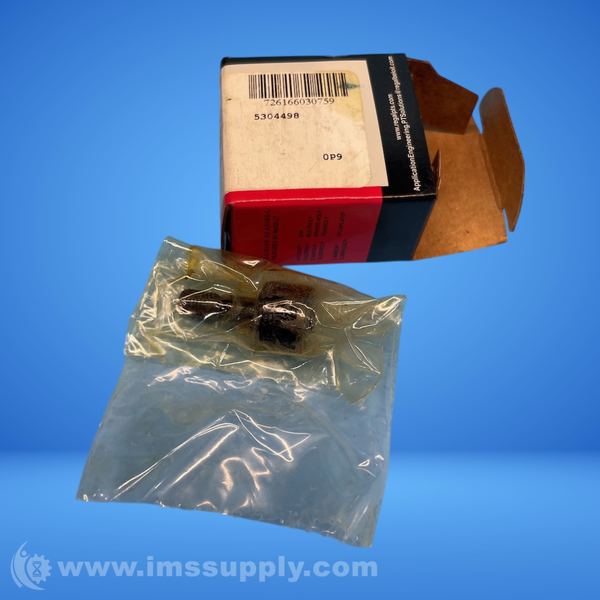

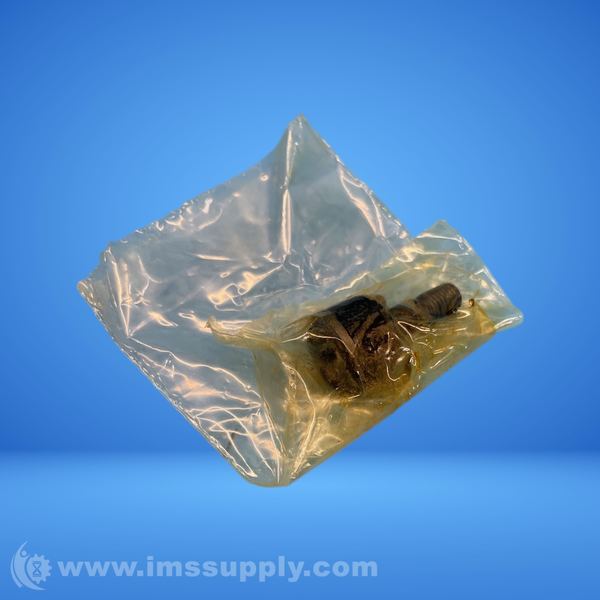

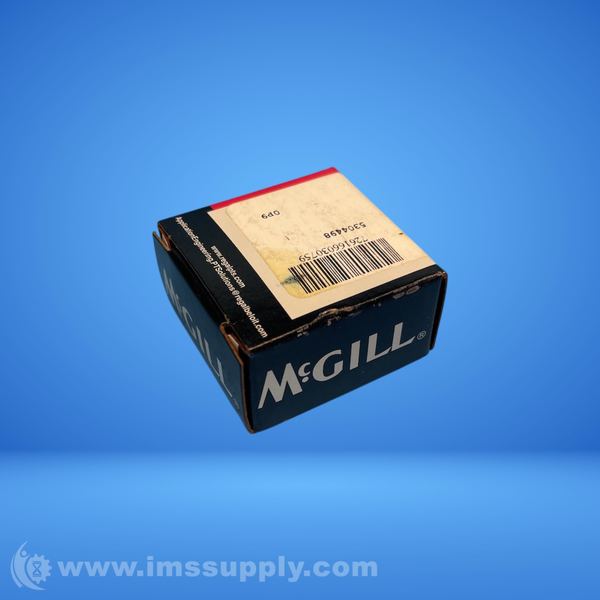

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 7 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
