MCGILL CFE 1 1/4 SB FLAT CAM FOLLOWER
Quick Overview
Manufactured By: MCGILL
Manufacturer Part Number: CFE 1 1/4 SB
IMS Product Code: 1906167
Packaging: Sold Individually
Description:

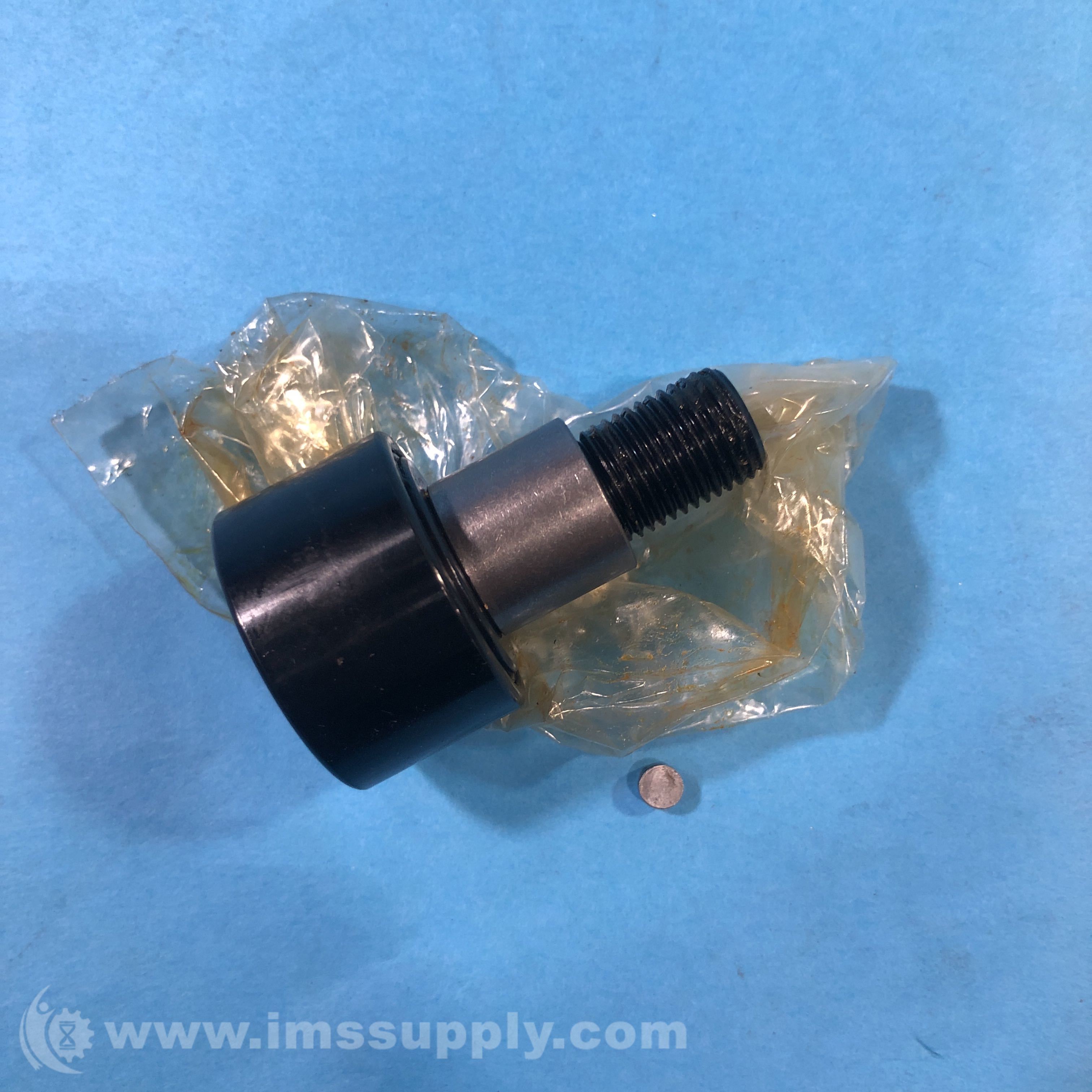

McGill CFE 1 1/4 SB Flat Cam Follower
Flat cam follower with 1.25 inch roller diameter, 0.75 inch roller width, and 0.5 inch stud diameter. Made of bearing steel with black oxide finish, sealed with LUBRI-DISC seal, and featuring a hex hole head.
Specifications
- Bearing Element: Needle Rollers
- Roller Shape: Flat
- Roller Diameter: 1.2500 in
- Roller Width: 0.7500 in
- Roller Material: Bearing Steel
- Stud Diameter: 0.5000 in
- Stud Type: CF - Standard Stud
- Closure Type: Sealed
- Head Type: Hex Hole
- Thread Size: 1/2-20
- Radial Dynamic Load Capacity: 3930 lbf
- Radial Static Load Capacity: 2300 lbf
- Max Rpm: 3100 rpm
- Finish Coating: Black Oxide Finish
- Lubrication Hole Location: Stud Side
- Series: Inch CAMROL (CF)
- Weight: 0.33 lbs
- Ability to Relubricate: Yes
- Adjustment: Eccentric Bushing
- Bushing Length: 0.625 in
- Clamping Torque: 350 in-lbf
- Eccentricity: 0.03 in
- Lubrication Fitting Size: 0.1875 in
- Minimum Thread Length: 0.63 in
- Stud Length: 1.25 in
- Width: 3.56 in
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 7 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
