MEAN WELL NDR-120-12 DIN RAIL POWER SUPPLY
Quick Overview
Manufactured By: MEAN WELL
Manufacturer Part Number: NDR-120-12
IMS Product Code: 2136957
Packaging: Sold Individually
Description:

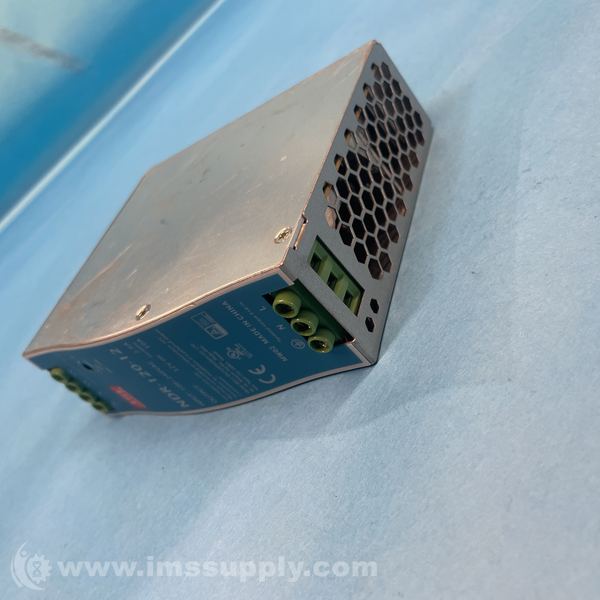

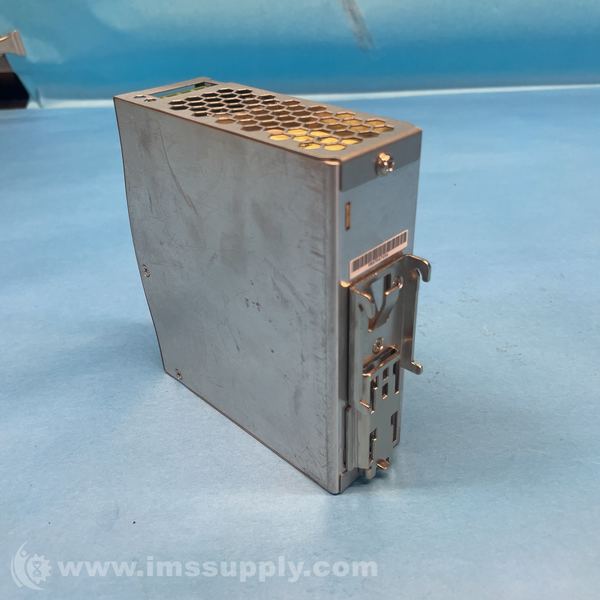

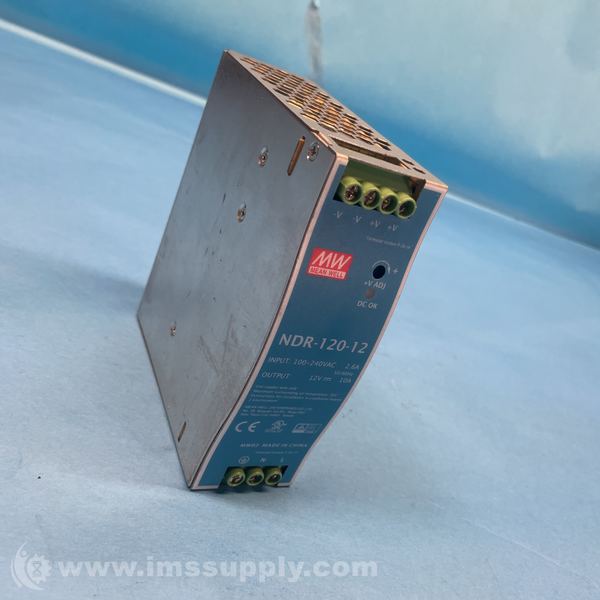

Mean Well NDR-120-12 DIN Rail Power Supply
Single Output Industrial DIN Rail Power Supply 12 Volts 10 Amps 120 Watts
Specifications
- input voltage: 90 ~ 264 vac
- output voltage: 12 vdc
- output max current: 10 amps
- max power: 120 watts
- operating temperature range: -20 ~ +70 degrees celsius
- dimensions: 125.2 x 63 x 113.5 mm
- efficiency: 89%
- universal ac input / full range: true
- protections: short circuit / overload / over voltage / over temperature
- cooling: free air convection
- din-rail mountable: true
- ul approval: ul 508
- industry immunity level: en61000-6-2 (en50082-2)
- full load burn-in test: 100%
- series: ndr-120
- form factor: din rail
- mounting method: din-rail mount
- type: ac-dc
- number of output voltages: 1
- max output power: 120 watts
- min input voltage: 90 vac
- max input voltage: 264 vac
- max output current: 10 amps
- ip rating: no ip assigned
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
