MELTRIC 33-18043-972 DS20 INLET
Quick Overview
Manufactured By: MELTRIC
Manufacturer Part Number: 33-18043-972
IMS Product Code: 1758905
Packaging: Sold Individually
Description:

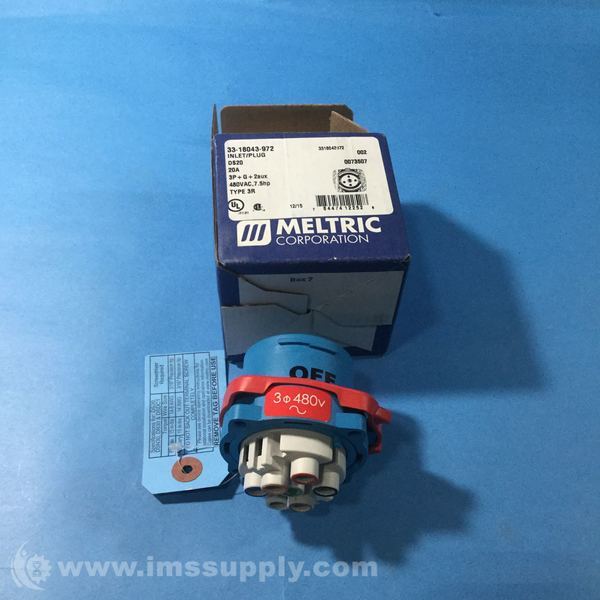

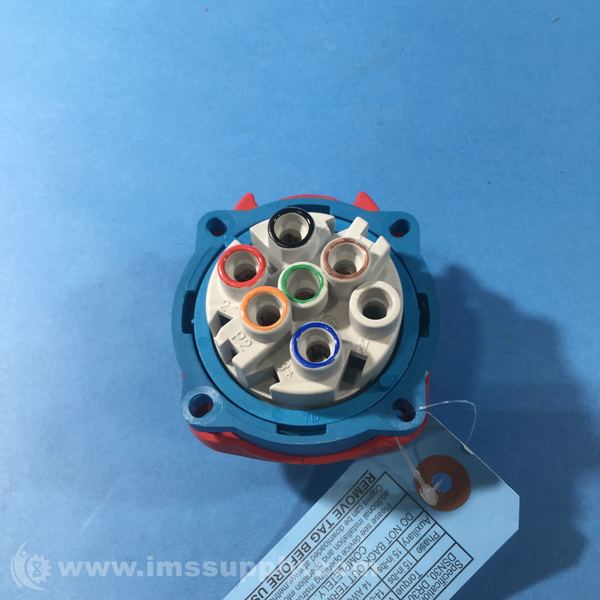

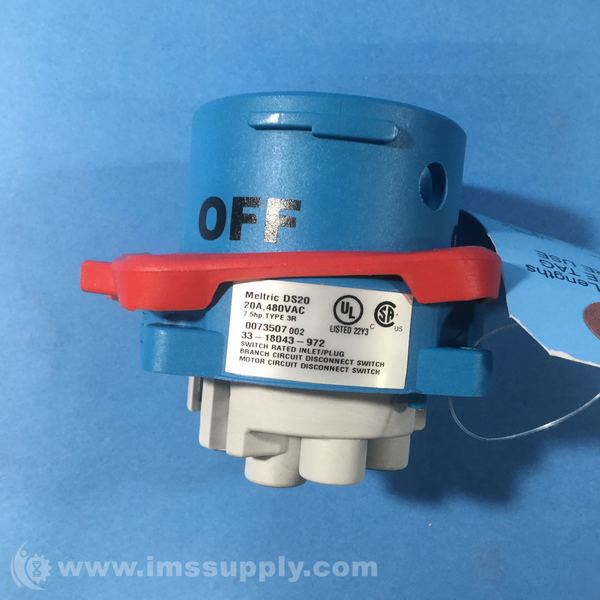

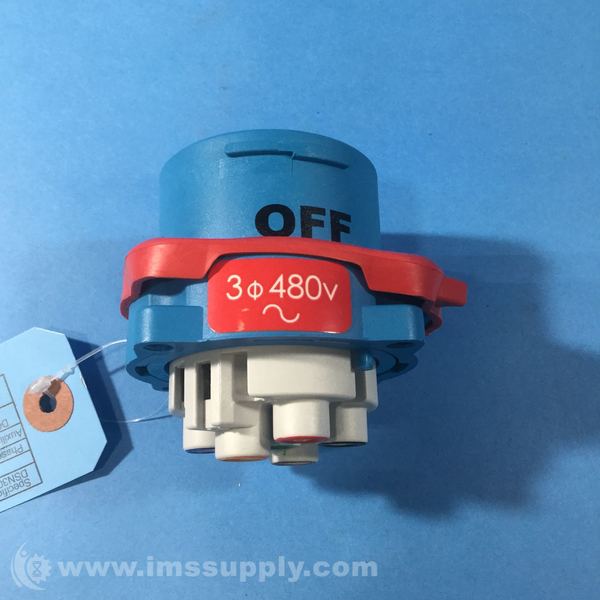

Meltric 33-18043-972 DS20 Inlet
Switch-Rated DS20 Inlet, 480 VAC, 20A, Blue Poly, 3P+G, 7.5 HP
Specifications
- Rated Current: 20 A
- Rated Voltage: 480 VAC
- Horsepower Rating: 7.5 hp
- Contact Configuration: 3P+G
- Auxiliary Contacts: +2 AUX
- Environmental Rating: Type 3R IP 54
- Short Circuit Rating: 100 kA - CLOSE & WITHSTAND
- Impact Rating: IK09
- Material: POLY
- Color: BLUE
- Minimum Operating Temperature: -40F -40C
- Maximum Operating Temperature: 140F 60C
- Wiring Capacity - Phase Contacts: 14 AWG – 8 AWG SCREW TERMINAL
- Applicable Standards: UL 2682 UL 1682 cCSAus C22.2 No. 182.1-13
- Accessory Size: 2
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 37 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 37 minutes.
