MERSEN FSPDB3A POWER DISTRIBUTION BLOCK
Quick Overview
Manufactured By: MERSEN
Manufacturer Part Number: FSPDB3A
IMS Product Code: 2155779
Packaging: Sold Individually
Description:

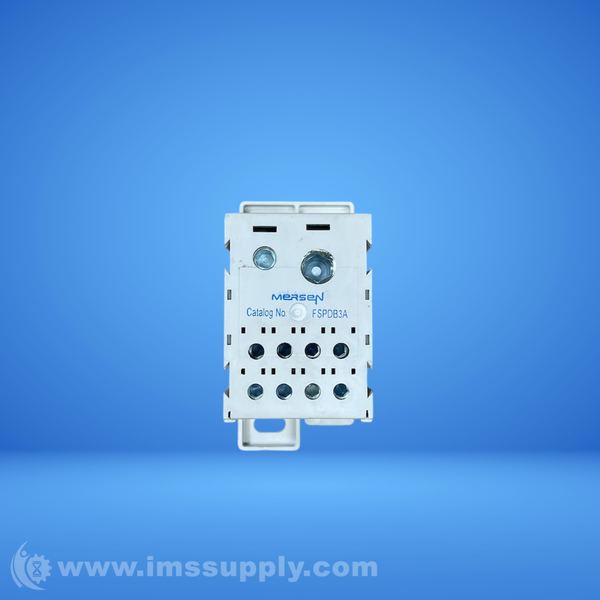

Mersen FSPDB3A Power Distribution Block
A finger-safe power distribution block with 600 VAC voltage rating, 310 A current rating, and IP20 protection rating. It has 1 pole, 2 primary connections, and 8 secondary connections. Made of tin-plated aluminum with nylon insulating material.
Specifications
- rated voltage AC UL: 1500 V
- rated voltage DC UL: 1500 V
- ampere rating (AL): 310 A
- ampere rating (CU): 310 A
- number of poles: 1-Pole
- connector material: Tin-plated Aluminum
- number of openings per pole (primary): 2
- number of openings per pole (secondary): 8
- connector type (primary): Box
- connector type (secondary): Box
- hole diameter (primary): 2 in
- hole diameter (secondary): 0.31 in

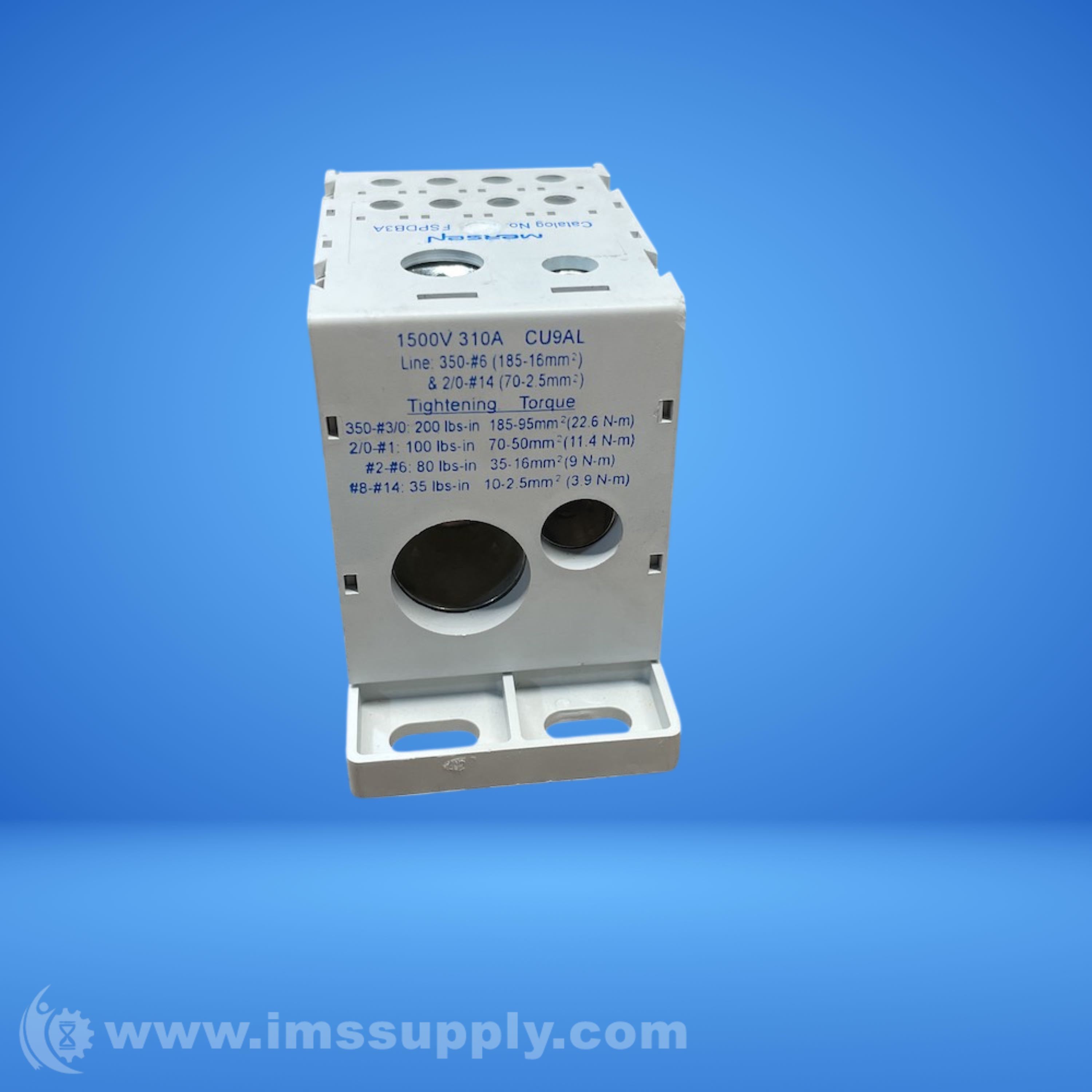

- torque rating (primary): 350-3/0 200; 2/0-#1 100; #2-#6 80; #8-#14 35

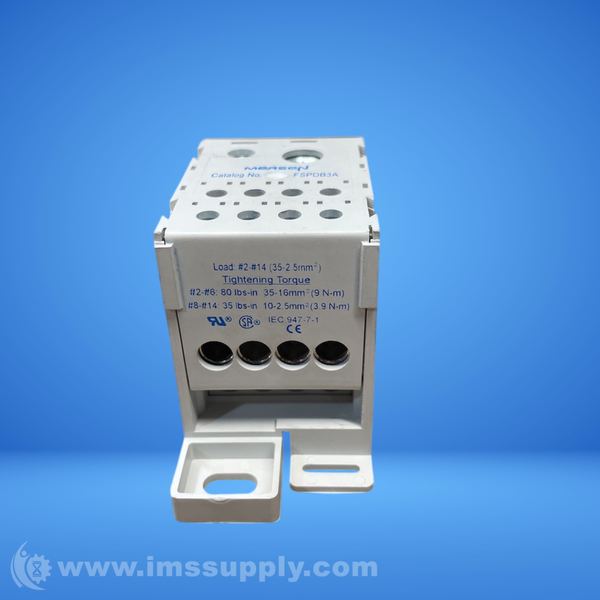

- torque rating (secondary): #8-#14 35
- wire range (primary): 350 mcm & 2/0 - #14
- wire range (secondary): #2 - #14
- installation mounting: Screw Mount or DIN Rail
- product width: 1.85 in
- product length: 3.97 in
- product height: 2.53 in
- product weight: 0.67 lb
- body/insulating material: Nylon
- protection rating: IP20
- color: Gray
