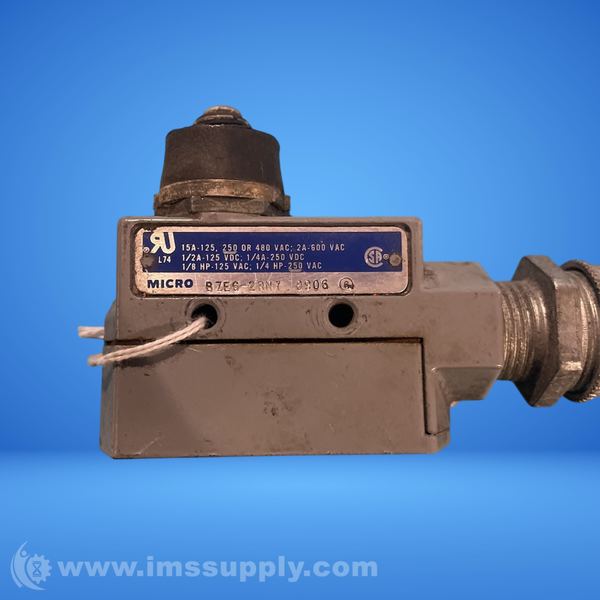

MICRO SWITCH BZE6-2RN7 LIMIT SWITCH
Quick Overview
Manufactured By: MICRO SWITCH
Manufacturer Part Number: BZE6-2RN7
IMS Product Code: 2150741
Packaging: Sold Individually
Description:
Micro Switch BZE6-2RN7 Limit Switch
Single-pole double-throw (SPDT) side-mount medium-duty enclosed Standard Limit Switch with 1NO/1NC contacts, top plunger actuator, and screw terminations.
Specifications
- Series: BZE6
- AC Contact Rating: 15 A @ 600 V
- Actuator Length: 0.97 in
- Actuator Location: Top
- Actuator Style: Plunger
- Body Configuration: Non Plug-In
- Body Depth: 1 in
- Body Height: 1.75 in
- Body Material: Metal
- Body Material Type: Metallic
- Body Width: 3.04 in
- Contact Form: 1NO/1NC
- DC Contact Rating: 2 A @ 250 V
- Differential Travel: 0.002 in
- Electrical Connection: Screw Terminals
- IP Rating: IP66
- Mounting Hole Diameter: 0.98 in
- Mounting Style: Surface
- NEMA Enclosure Rating: 1; 3; 4
- Number of Mounting Holes: 2
- Operating Force - Maximum: 24 ozf
- Operating Force - Minimum: 9 ozf
- Operating Temperature - Maximum: 160 degrees F
- Operating Temperature - Minimum: -25 degrees F
- Pretravel: 0.08 in
- Standards: CE; CSA; UL Listed
Used (Special):

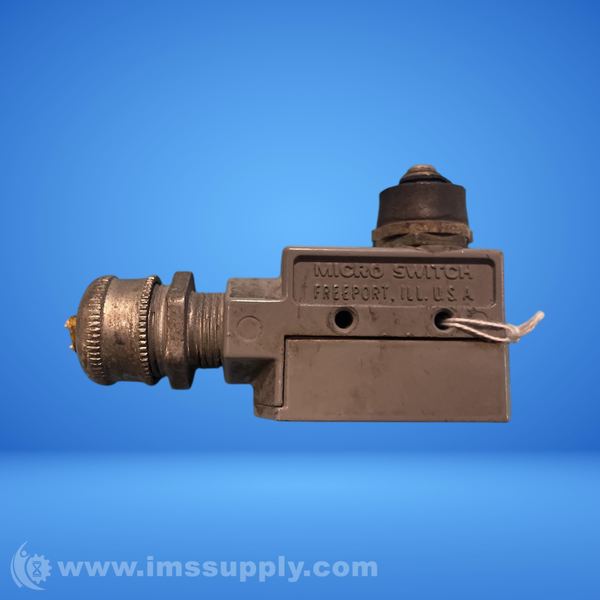

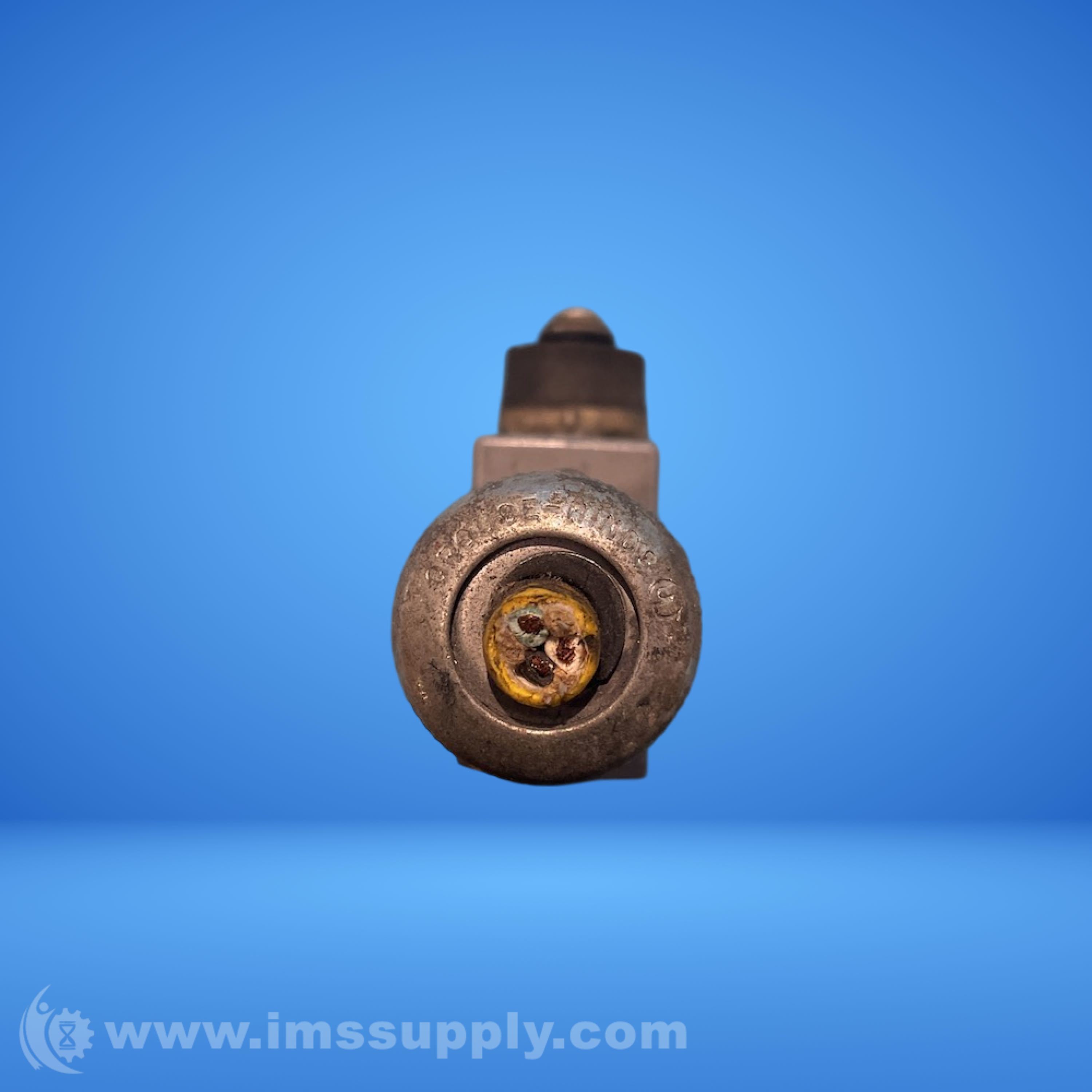

HAS A CROUSE HINDS ATTACHMENT
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):

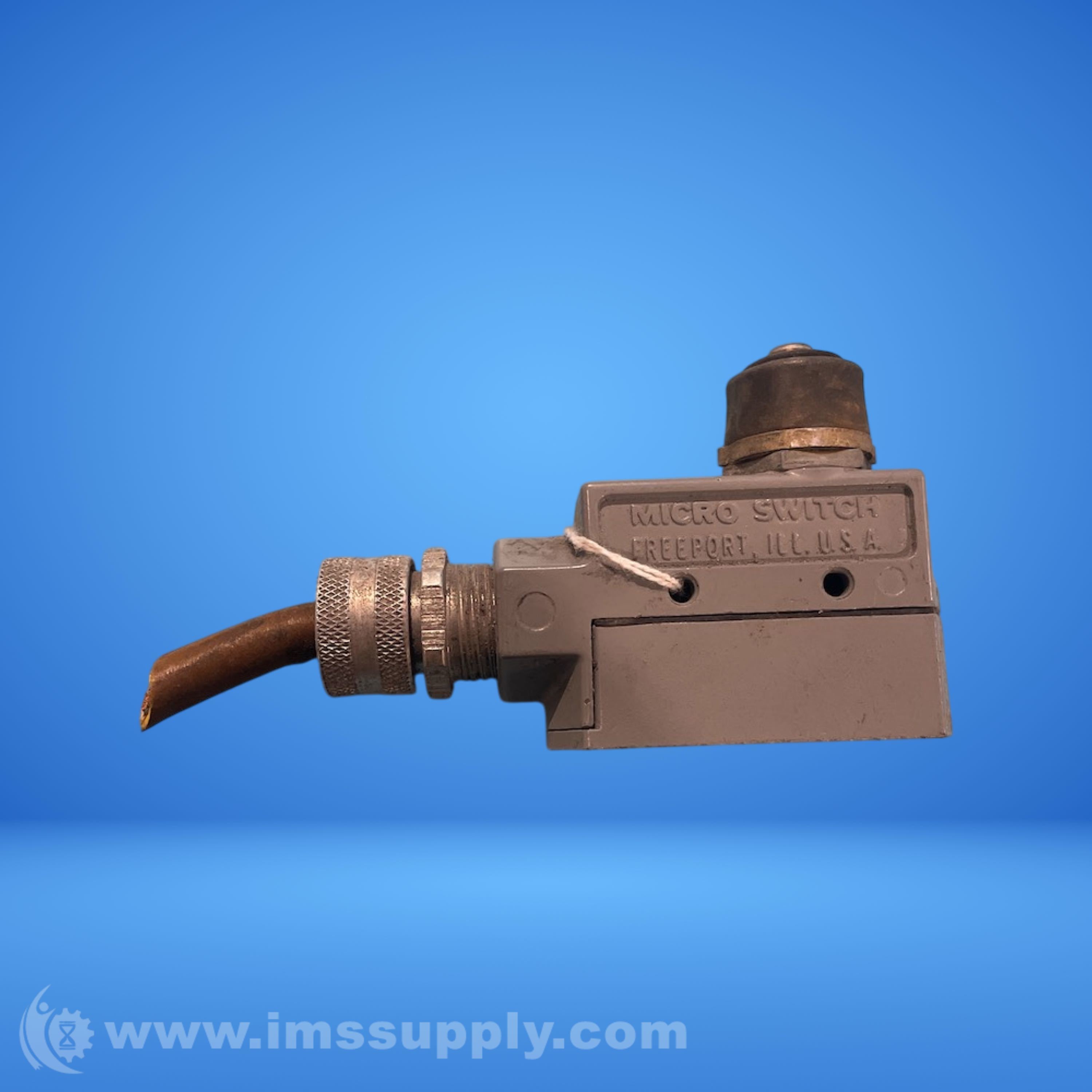

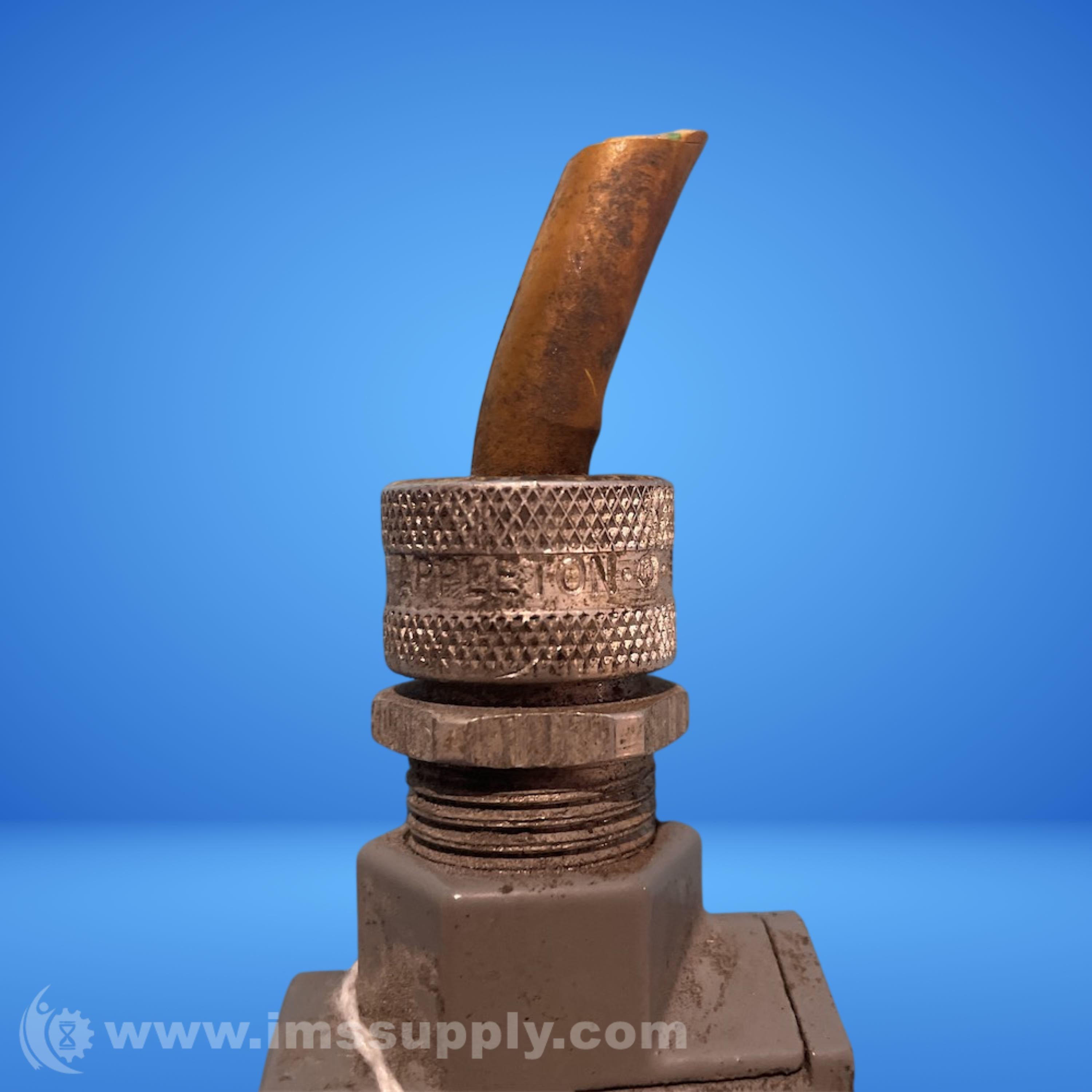

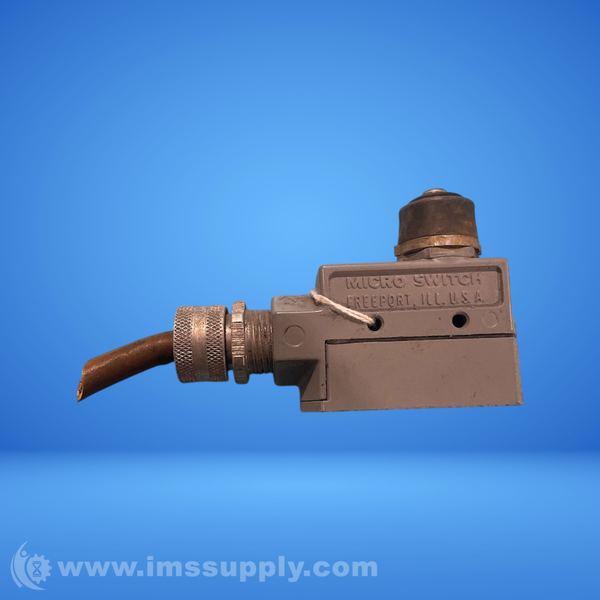

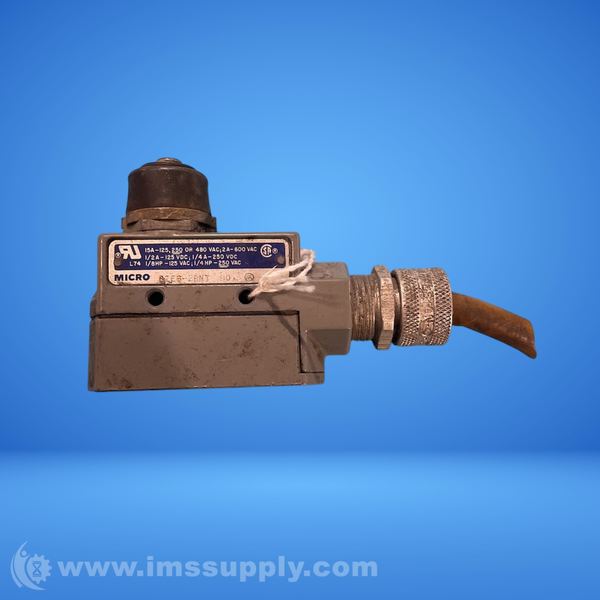

HAS AN APPLETON ATTACHMENT
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
