MICRO SWITCH LSXD3K EXPLOSION PROOF LIMIT SWITCH
Quick Overview
Manufactured By: MICRO SWITCH
Manufacturer Part Number: LSXD3K
IMS Product Code: 2134549
Packaging: Sold Individually
Description:

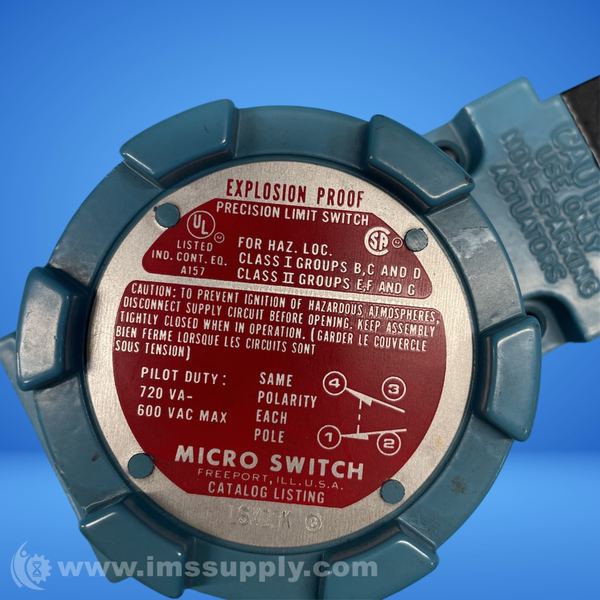

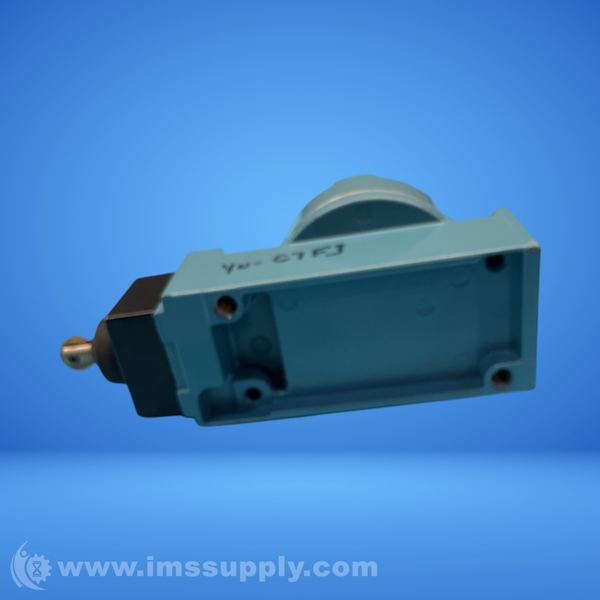

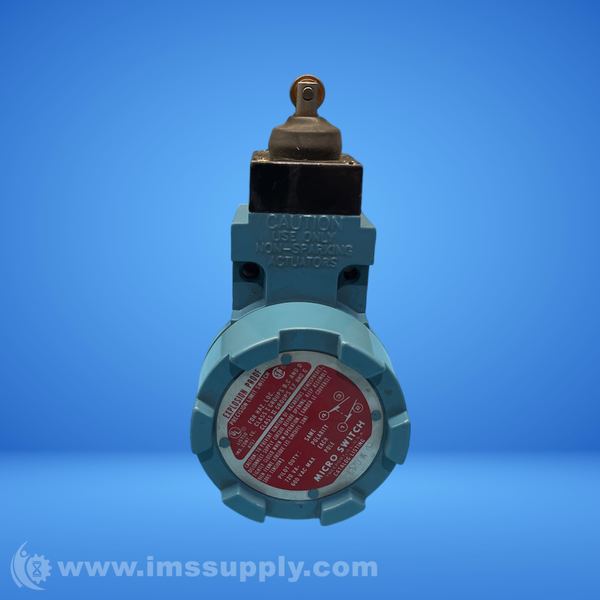

Micro Switch LSXD3K Explosion Proof Limit Switch
Explosion proof precision limit switch for hazardous locations, Class I Groups B, C, D and Class II Groups E, F, G. SPDT double break silver contacts, top roller plunger actuator, 1/2 inch NPT conduit entry.
Specifications
- actuator style: roller plunger
- actuator location: top
- contact rating: 10A @ 600VAC
- contact form: 1NC/1NO (SPDT)
- housing material: aluminum
- mounting: surface mount
- electrical connection: screw terminals
- operating temperature: -25C to 85C
- operating force: 17.8N
- pretravel: 1.78mm
- differential travel: 38mm
- dimensions: 50.8mm x 74.4mm x 116.8mm
- pilot duty: 720VA, 600VAC max
