MIKI PULLEY PSL-K-1-C PLS-K POSI-LOK KEYLESS SHAFT BUSHING
Quick Overview
Manufactured By: MIKI PULLEY
Manufacturer Part Number: PSL-K-1-C
IMS Product Code: 1761422
Packaging: Sold Individually
Description:

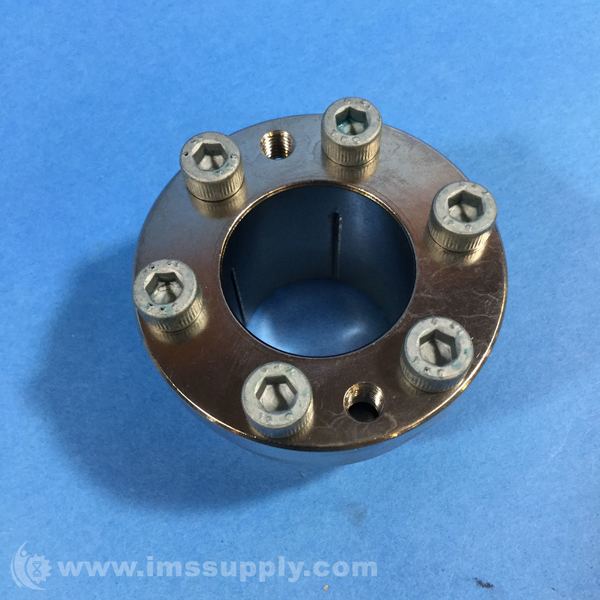

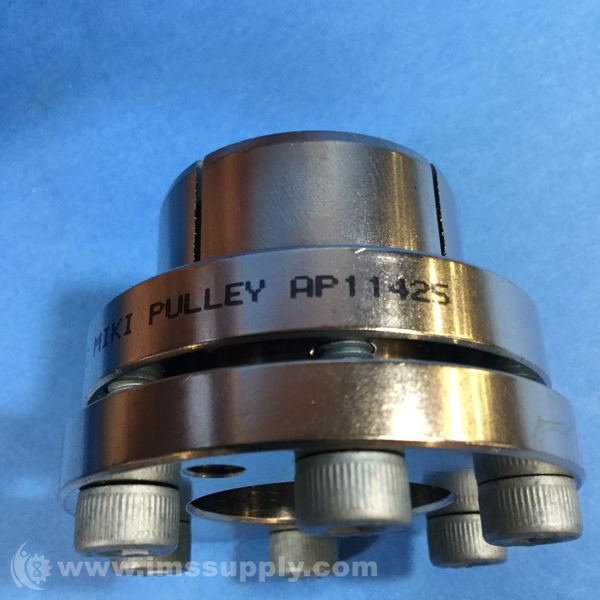

Miki Pulley PSL-K-1-C PLS-K Posi-Lok Keyless Shaft Bushing
Specifications:
- Part Number PSL-K-1-C
- Transmittable T: 177 ft-lbs
- Transmittable FA: 4,271 lbf
- Shaft Bore Diameter (d): 25.4mm (1.00")
- Shaft Tolerance Grade: h8
- Shaft Contact Pressure: 31,907 PSI
- Sleeve Diameter (D): 34 mm
- Hub Bore Tolerance Grade: H7
- Hub Contact Pressure: 23,205 PSI
- Sleeve Length (L): 16 mm
- Body Length (L1): 33 mm
- Overall Length (L2): 38 mm
- Upper Flange Length (L3): 6.5 mm
- Lower Flange Length (L4): 8 mm
- Upper Flange Diameter (D1): 50 mm
- Lower Flange Diameter (D2): 47 mm
- Bolt Circle (P): 40 mm
- Weight: 0.46 lb
- Polar Moment of Inertia: 17.8 x10⁻⁴ lb-ft²
- Actuation Screws (M1): M5 x 14
- Screws No.: 6
- Tightening Torque: 71 in-lb
- Detachment Screw Hole (M2): 2-M5
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
