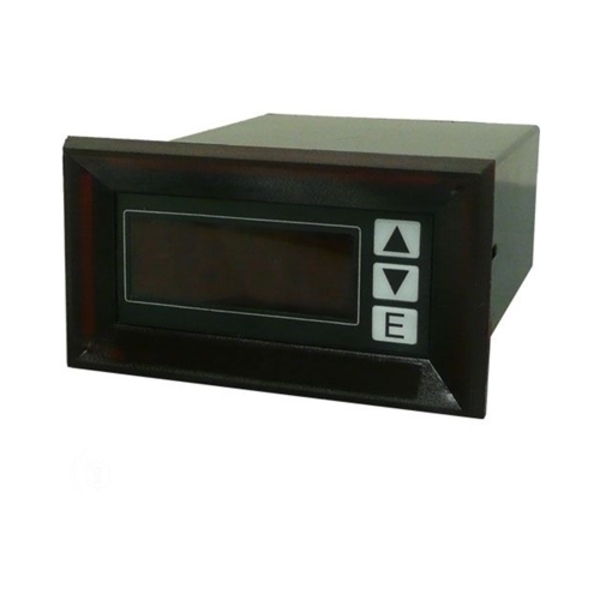

MINARIK DLC600 DISPLAY CLOSED LOOP PANEL MOUT 115/230 VOLT
Quick Overview
Manufactured By: MINARIK ELECTRIC CO
Manufacturer Part Number: DLC600
IMS Product Code: 1788267
Packaging: Sold Individually
Description:
Minarik DLC600 Display Closed Loop Panel Mout 115/230 Volt Ac Input 0-10 Volt Dc Output
Specifications:
- AC Line Voltage: 115 or 230 VAC ±10%, 50/60 Hz, Single Phase
- AC Line Power: 5.5 watts nominally
- Acceptable Feedback Sources: Hall Effect, Electromagnetic Pickup, 5 or 12 VDC NPN-type encoder or proximity switch, Encoder
- Analog Output Voltage Range: 0 + 10 VDC
- Power Supply Voltage for Feedback Devices: +5 VDC or
+12 VDC @ 10mA - Speed Regulation: 0.05%
- Feedback Frequency Range: 10 to 3000Hz
- Excellent Speed Regulation: 0.05% speed regulation of set speed provides for tight control throughout a 200:1 speed range.
- Pushbutton Programing: Three front panel pushbuttons provide quick and easy programming.
- 4-Digit LED Display: Red 0.5 inch (13 mm) wide digits for good visibility.
- Programmable Decimal Point: Makes specific application readouts easy.
- Inhibit Terminal: A low voltage,dry contact closure on the inhibit terminal will reduce the output to zero.
- Selectable Feedback Devices: Controls accept magnetic pickup, hall effect, inductive proximity sensor or encoder input.
- + 5 VDC or + 12VDC (10 mA) Power Supply: Provided to power feedback devices.
