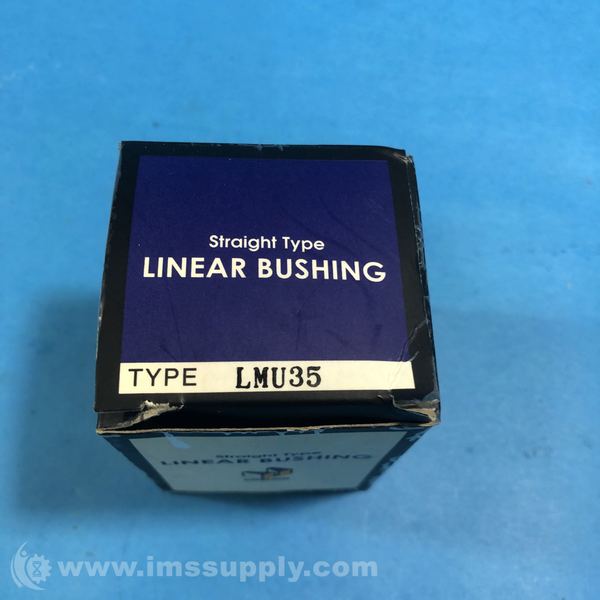

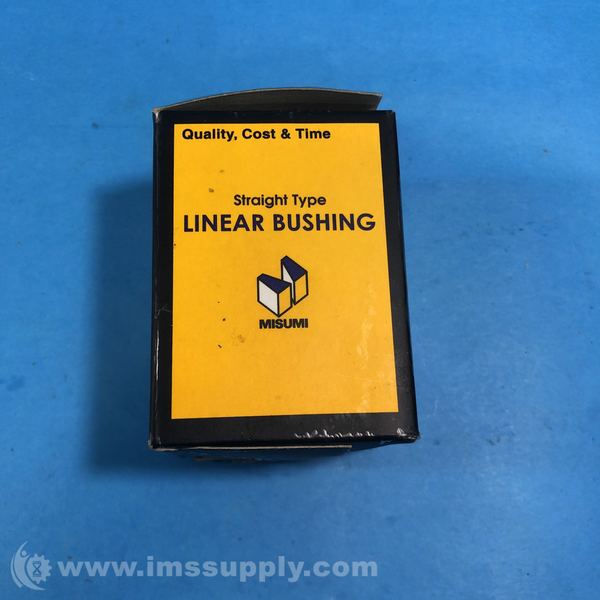

MISUMI LMU35 LINEAR BUSHING
Quick Overview
Manufactured By: MISUMI
Manufacturer Part Number: LMU35
IMS Product Code: 1919005
Packaging: Sold Individually
Description:
Misumi LMU35 Linear Bushing
Straight type linear bushing with a standard style, an inscribed circle diameter of 35 mm, and an overall length of 70 mm.
Specifications
- Product Type: Straight
- Motion: Linear Motion
- Style: Standard
- Outer Cylinder Material: 52100 Bearing Steel Equivalent
- Outer Cylinder Surface Finish: None
- For Shaft Diameter: 35 mm
- Overall Length: 70 mm
- Lubrication Type: No Grease (Rust Preventive Oil)
- Outer Diameter: 52 mm
- Ball Recirculating Type: Single
- Basic Dynamic Load Rating: 1670 N
- Basic Static Load Rating: 3140 N
- Precision: High Grade
- Inner Contact Circle Tolerance: -0.012 mm
- Eccentricity: 20 µm
- Ball Material: 52100 Bearing Steel Equivalent
- Retainer Material: Plastic (Duracon M90 Equivalent)
- Seals: With Seal
- Operating Ambient Temperature: -20 to 80 degrees C
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 5 In Stock
