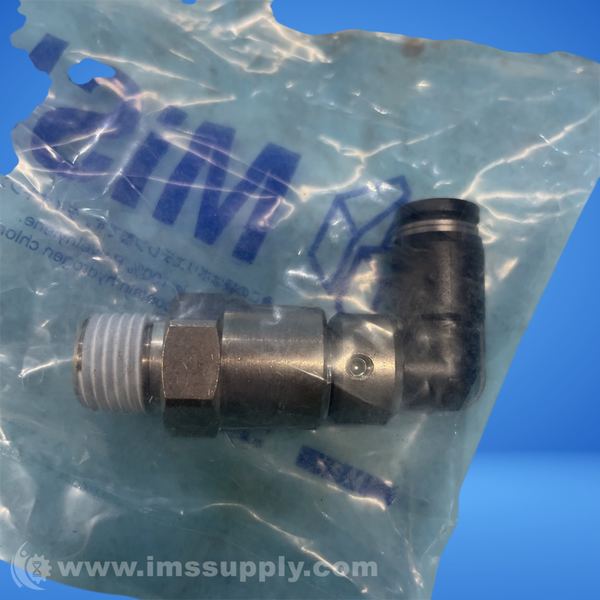

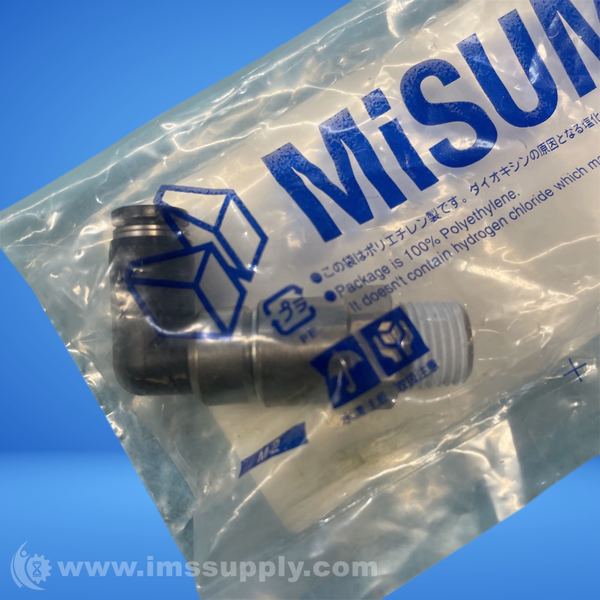

MISUMI RHTCNL6-2 90 DEGREE ELBOW FITTING
Quick Overview
Manufactured By: MISUMI
Manufacturer Part Number: RHTCNL6-2
IMS Product Code: 2127203
Packaging: Sold Individually
Description:
Misumi RHTCNL6-2 90 Degree Elbow Fitting
A 90-degree elbow fitting used for connecting tubes to swivel and rotary parts.
Specifications
- Type: RHTCNL
- D: 6
- Nominal of connection screw: 2(R1/4)
- Thread Size M: R1/4
- A: 11
- B1: 22.8
- B2: 47.7
- E: 10.5
- L: 53
- P1: 12.5
- Width Across H: 16.6
- Allowable Revolutions: 1200 rpm
- Turning Torque: 150 g-cm
- Effective Sectional Area: 10 mm2
- Mass: 53 g
- Applicable Fluid: Air
- Operating Temperature Range: 0~60 degrees C
- Max. Operating Pressure: 1MPa
- Operating Vacuum Level: -100kPa
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 10 minutes.
