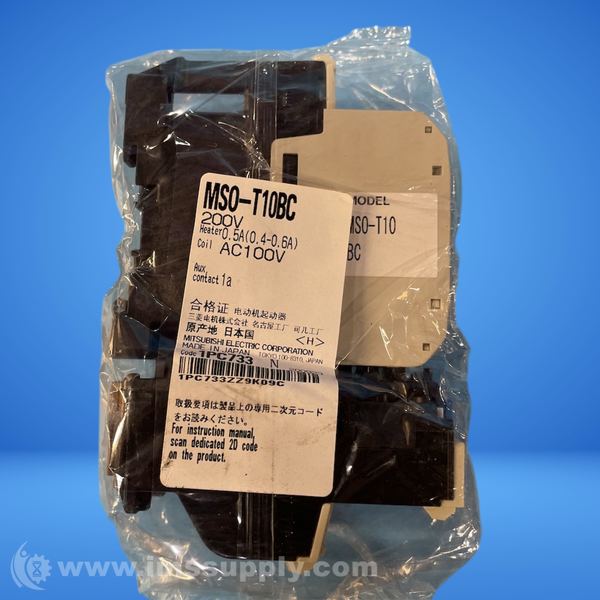

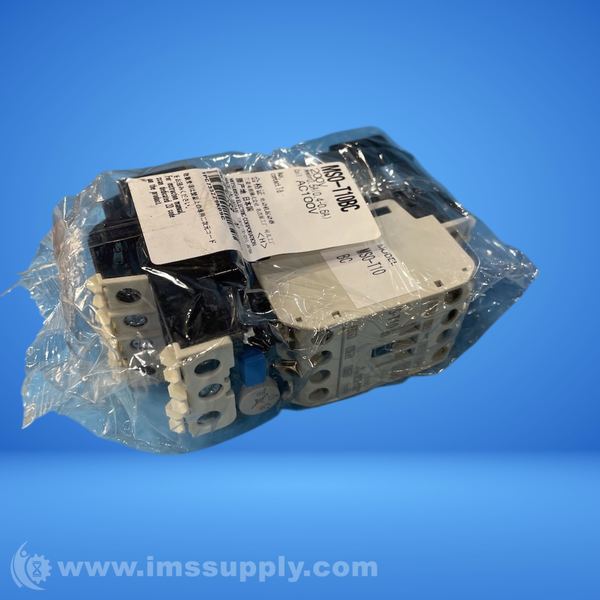

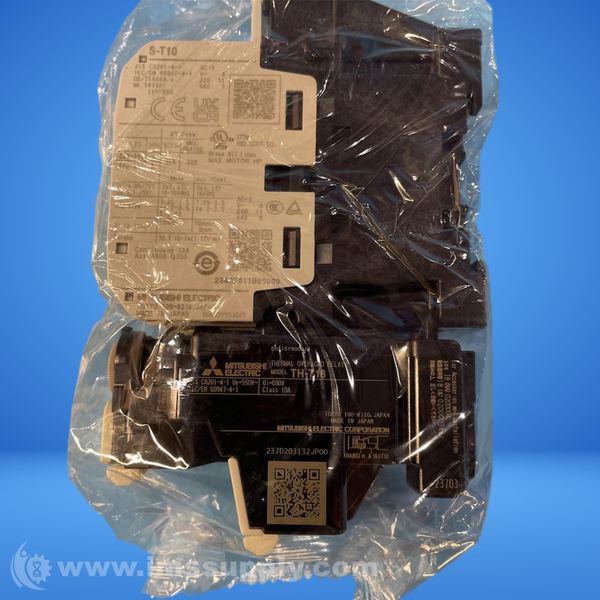

MITSUBISHI MSO-T10BC MAGNETIC MOTOR STARTER
Quick Overview
Manufactured By: MITSUBISHI ELECTRIC
Manufacturer Part Number: MSO-T10BC
IMS Product Code: 2162997
Packaging: Sold Individually
Description:
Mitsubishi MSO-T10BC Magnetic Motor Starter
Non-reversing electromagnetic contactor/switch with thermal overload relay, AC100V coil voltage, 200V rated voltage, 2.2kW rated capacity.
Specifications
- Series: MSO-T
- Type: Non-reversing
- Rated Capacity: 2.2 kW
- Motor Capacity: 0.75 kW
- Auxiliary Contact: 1a
- Frame: T10
- Coil Rated Voltage: AC100V
- Main Circuit Voltage: 200V
- Dimensions: 46mm x 79mm x 115mm
- Weight: 0.36 kg
- Mounting Method: IEC 35mm rail
- Frequency: 50/60 Hz
- Rated Insulation Voltage: 690V
- Rated Operating Current: 11A
- Mechanical Durability: 10 million cycles
- Electrical Durability: 2 million cycles
- Ambient Temperature: -10�C to 40�C
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 0 minutes.
