MITSUBISHI QD77MS4 SIMPLE MOTION UNIT
Quick Overview
Manufactured By: MITSUBISHI ELECTRIC
Manufacturer Part Number: QD77MS4
IMS Product Code: 2164760
Packaging: Sold Individually
Description:

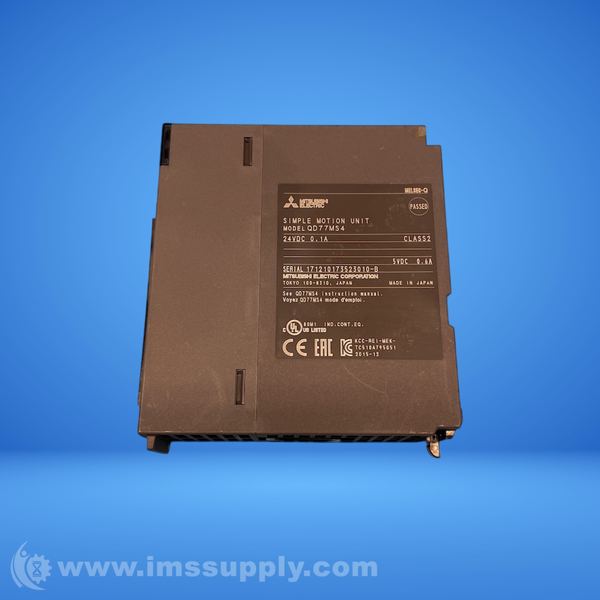

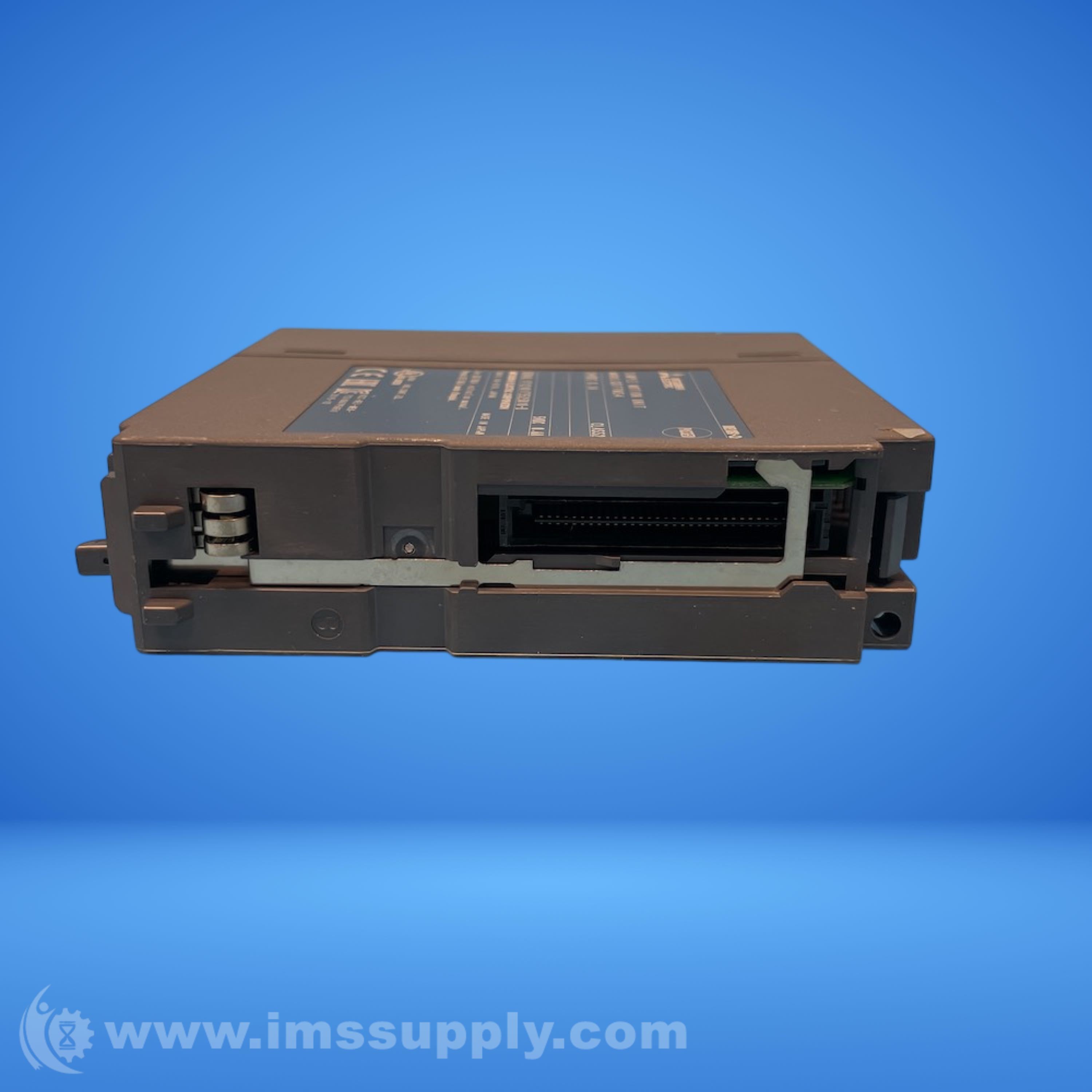

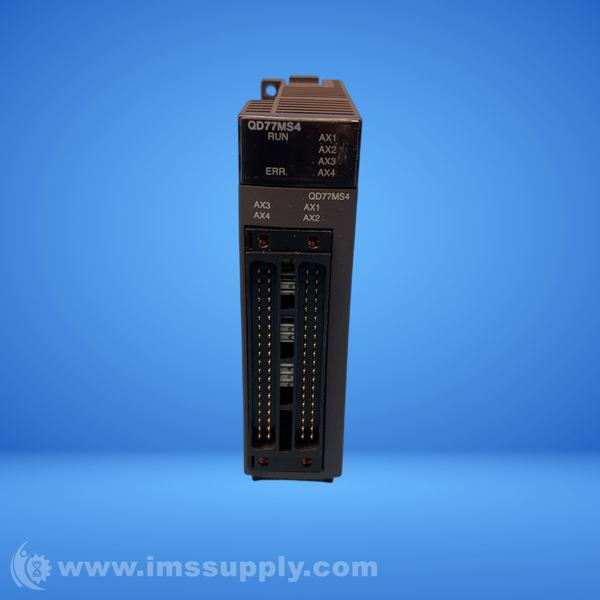

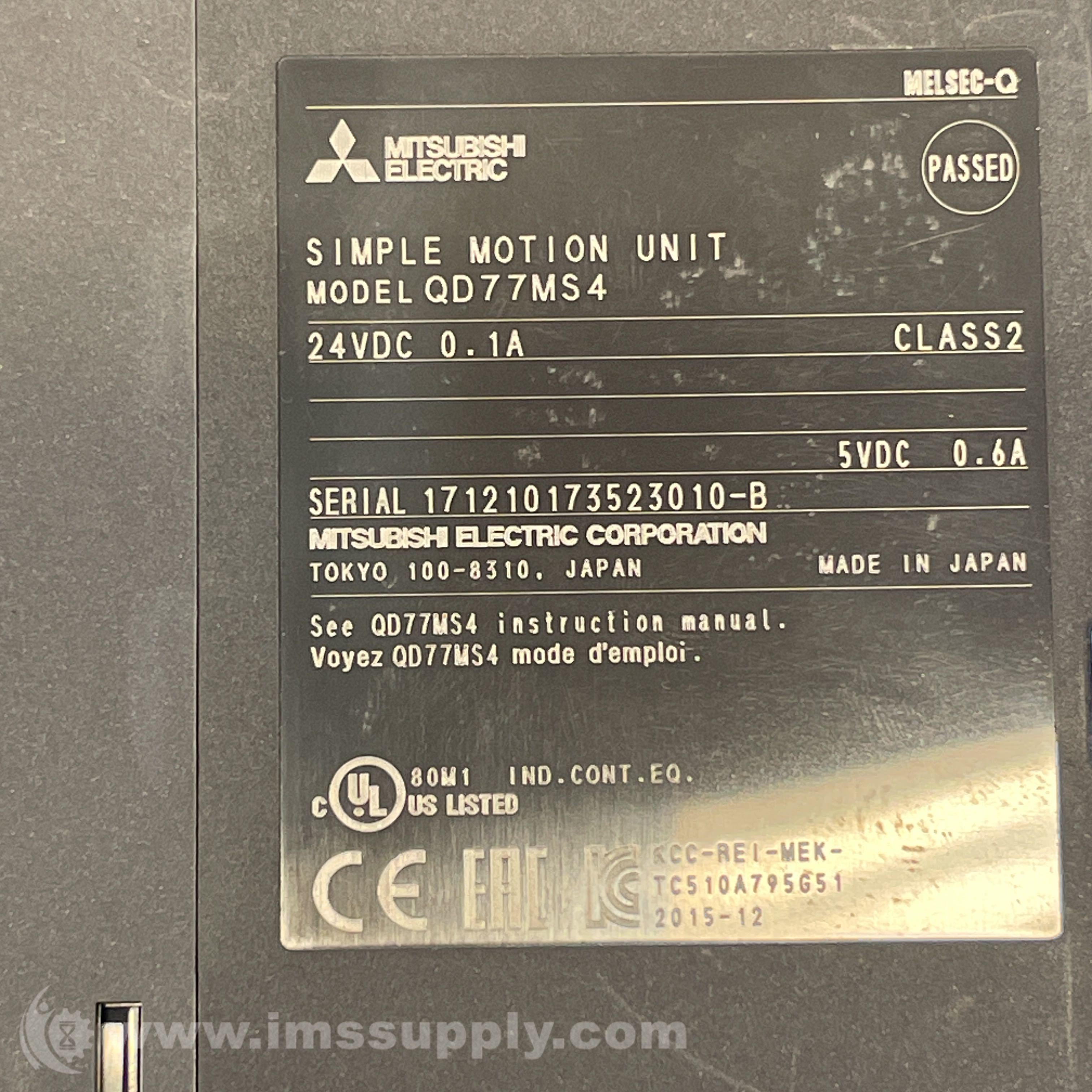

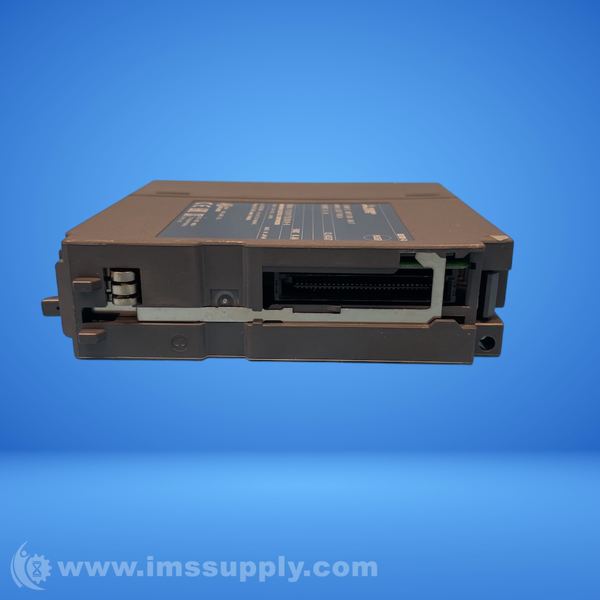

Mitsubishi QD77MS4 Simple Motion Unit
Mitsubishi Electric QD77MS4 is a Simple Motion module for the MELSEC-Q series programmable controllers. It allows for advanced motion control, including synchronous control and cam control, using sequence programs. The module supports up to 4 axes of control and offers various functions like linear interpolation and speed/torque control.
Specifications
- Number of control axes: 4 axes
- Operation cycle: 0.88ms/1.77ms
- Control method: PTP (Point To Point) control, path control (both linear and arc can be set), speed control, speed-position switching control, position-speed switching control, speed-torque control
- Control unit: mm, inch, degree, PLS
- Number of occupied I/O points: 32 (I/O assignment: Intelligent function module 32 points)
- Internal current consumption (5 V DC): 0.6 A
- Supply Voltage: 24 V DC
- Communication Port: SSCNET III/H
- Mounting Type: Rack Mount
- Weight: 0.16 Kg
- Dimensions (W x H x D): 27.4 x 98 x 90 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
