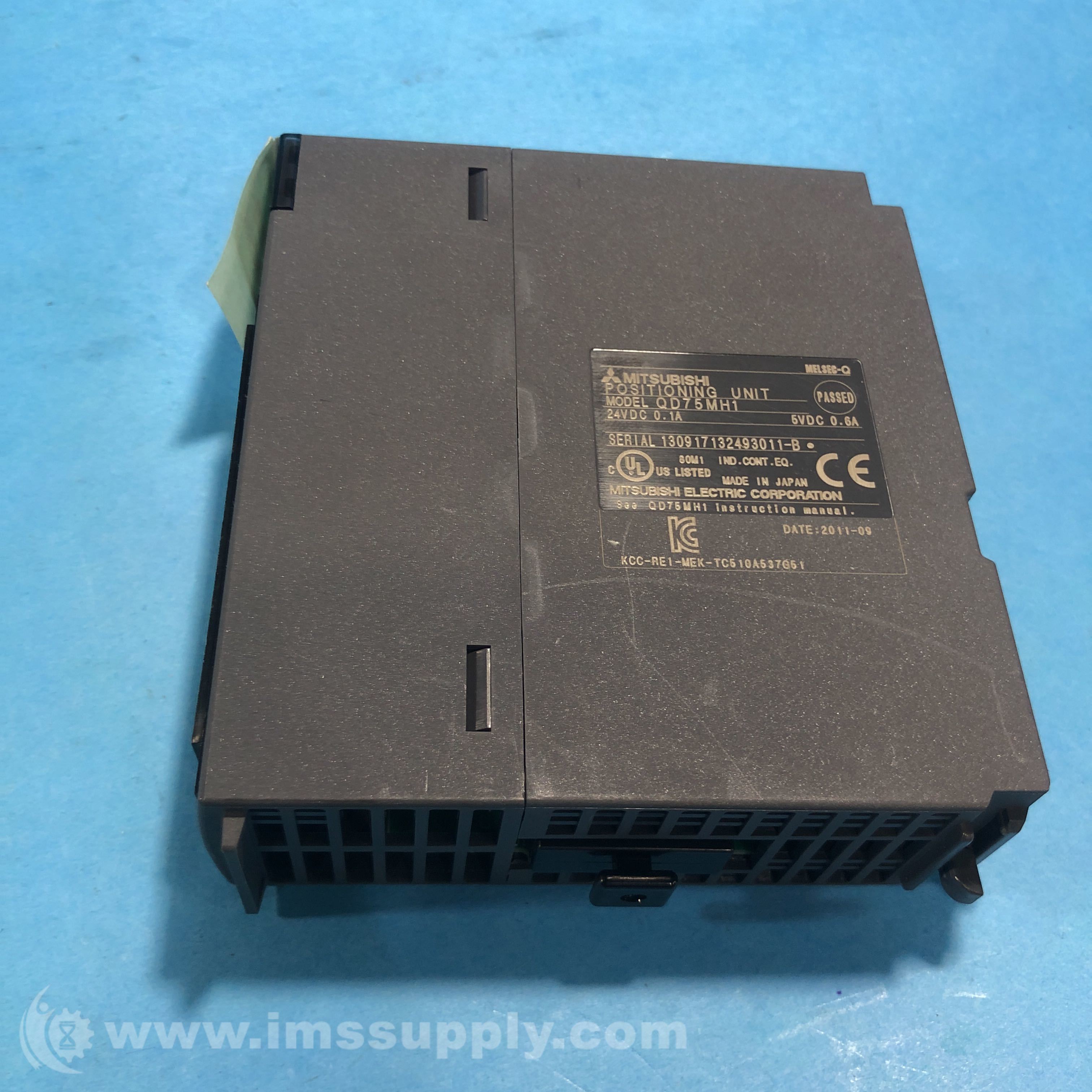

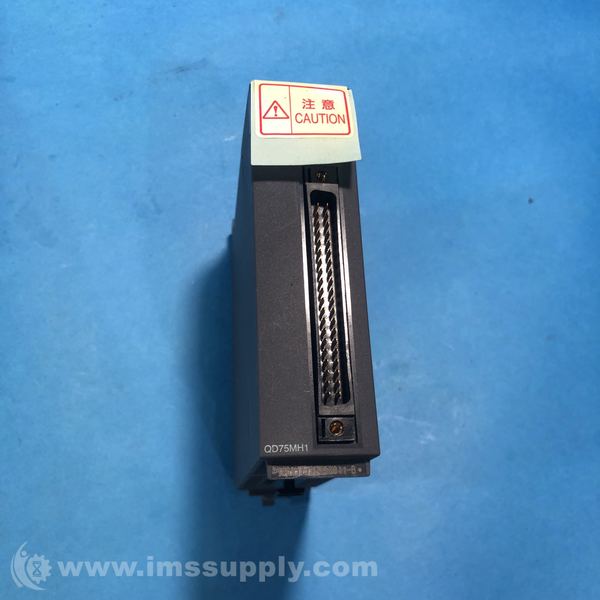

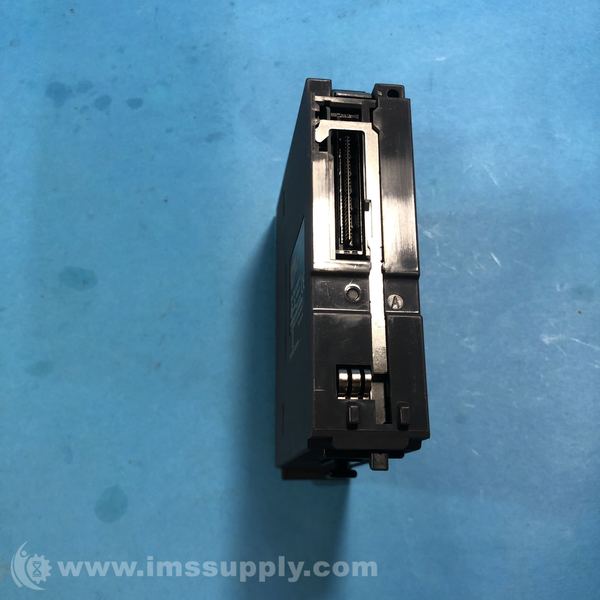

MITSUBISHI QD75MH1 POSITIONING MODULE
Quick Overview
Manufactured By: MITSUBISHI
Manufacturer Part Number: QD75MH1
IMS Product Code: 1919426
Packaging: Sold Individually
Description:
Mitsubishi QD75MH1 Positioning Module
1-axis positioning module with SSCNET III connectivity, supporting Mitsubishi general purpose servo amplifiers. Operates at 24 VDC with various control and signal interfaces.
Specifications
- Type: Positioning Module
- Maximum control axis number: 1 axis
- Number of positioning data: 600 data / axis
- Calculation cycle: 1.77 ms
- Interface with servo amplifier: High-speed serial communication method (SSCNET III)
- Connectable servo amplifier: Mitsubishi general purpose servo amplifier (MR-J3 - B)
- Emergency stop input: 24 VDC level 1 point / unit
- External signal interface: Upper limit . Lower limit . Near point dog . Stop . Speed ??/ position switching signal DC 24 V level 5 points / shaft
- Manual signal pulsar interface: A phase / B phase DC 5 V level 1 point / unit
- Control unit: mm, inch, degree, pulse
- Voltage: 24 VDC
- Country of Origin: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 30 minutes.
