MITSUBISHI QD75P2 POSITIONING MODULE
Quick Overview
Manufactured By: MITSUBISHI
Manufacturer Part Number: QD75P2
IMS Product Code: 1919397
Packaging: Sold Individually
Description:

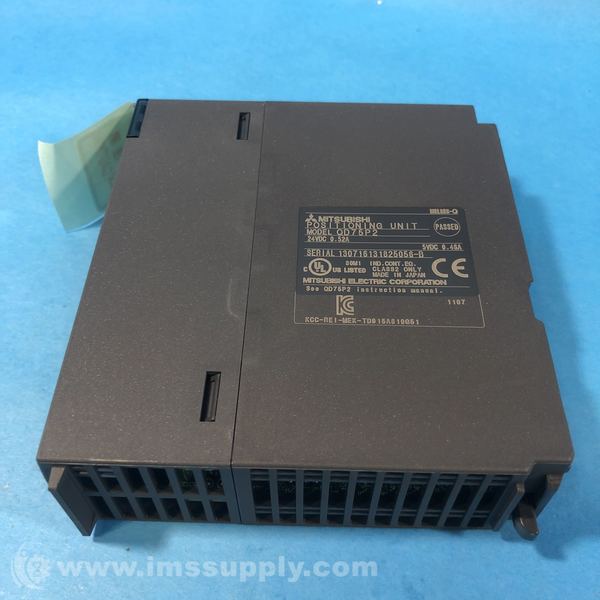

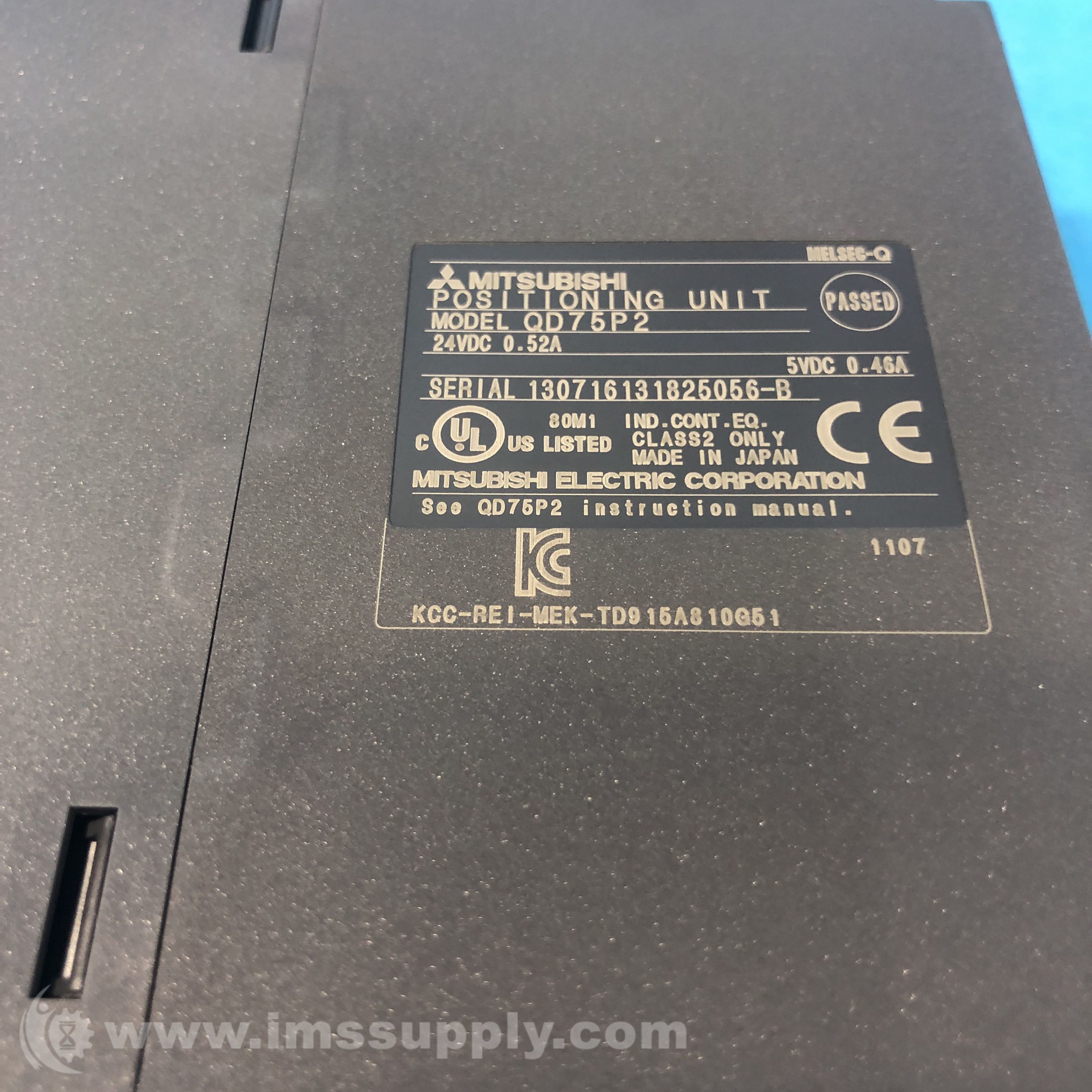

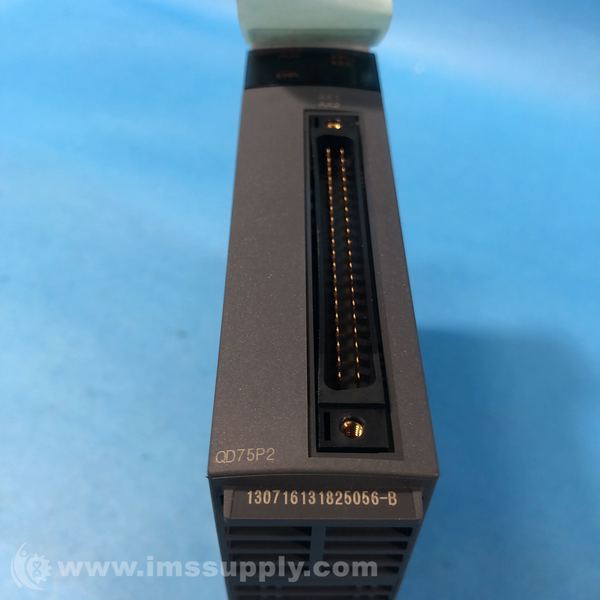

Mitsubishi QD75P2 Positioning Module
Mitsubishi QD75P2 is a positioning module designed for precise control of up to 2 axes. It supports various control systems including PTP, path control, speed control, and switching between speed and position. The module offers flexible configuration options with 600 data points per axis and battery-less backup for parameters and data.
Specifications
- Number of Control Axes: 2 axes
- Interpolation Function: 2-axis linear interpolation, 2-axis circular interpolation
- Control System: PTP control, path control, speed control, speed-position switching control, position-speed switching control
- Control Unit: mm, inch, degree, pulse
- Positioning Data: 600 data/axis
- Positioning Range: -214748364.8 to 214748364.7 µm, -21474.83648 to 21474.83647 inch, 0 to 359.99999 degree, -2147483648 to 2147483647 pulse
- Speed Command: 0.01 to 20000000 mm/min, 0.001 to 2000000 inch/min, 0.001 to 2000000 degree/min, 1 to 1000000 pulse/s
- Acceleration/Deceleration Process: Automatic trapezoidal and S-pattern acceleration/deceleration
- Internal Current Consumption: 0.46A (5VDC)
- Max Output Pulse: 200kpps
- Dimensions: 1.0 in x 4.0 in x 3.5 in (2.5 cm x 10.2 cm x 8.9 cm)
- Weight: 0 lbs 3.2 oz (0.1 kg)
- Country of Origin: Japan
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
