MOELLER DILM32-10(RDC24) 3-POLE CONTACTOR
Quick Overview
Manufactured By: MOELLER ELECTRIC
Manufacturer Part Number: DILM32-10(RDC24)
IMS Product Code: 2133817
Packaging: Sold Individually
Description:

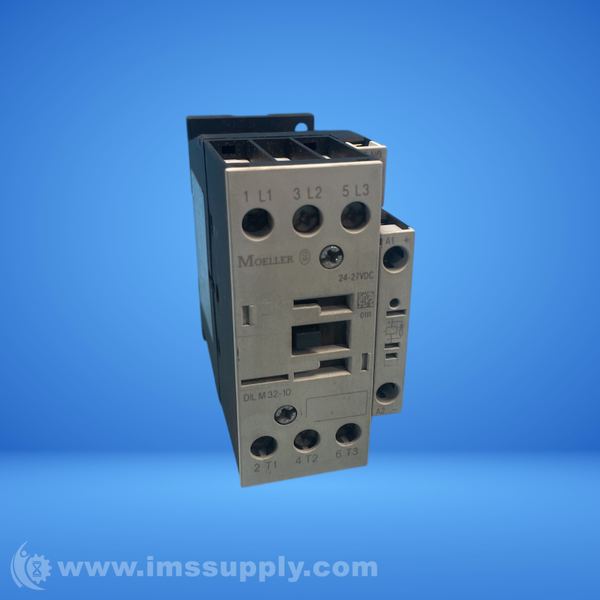

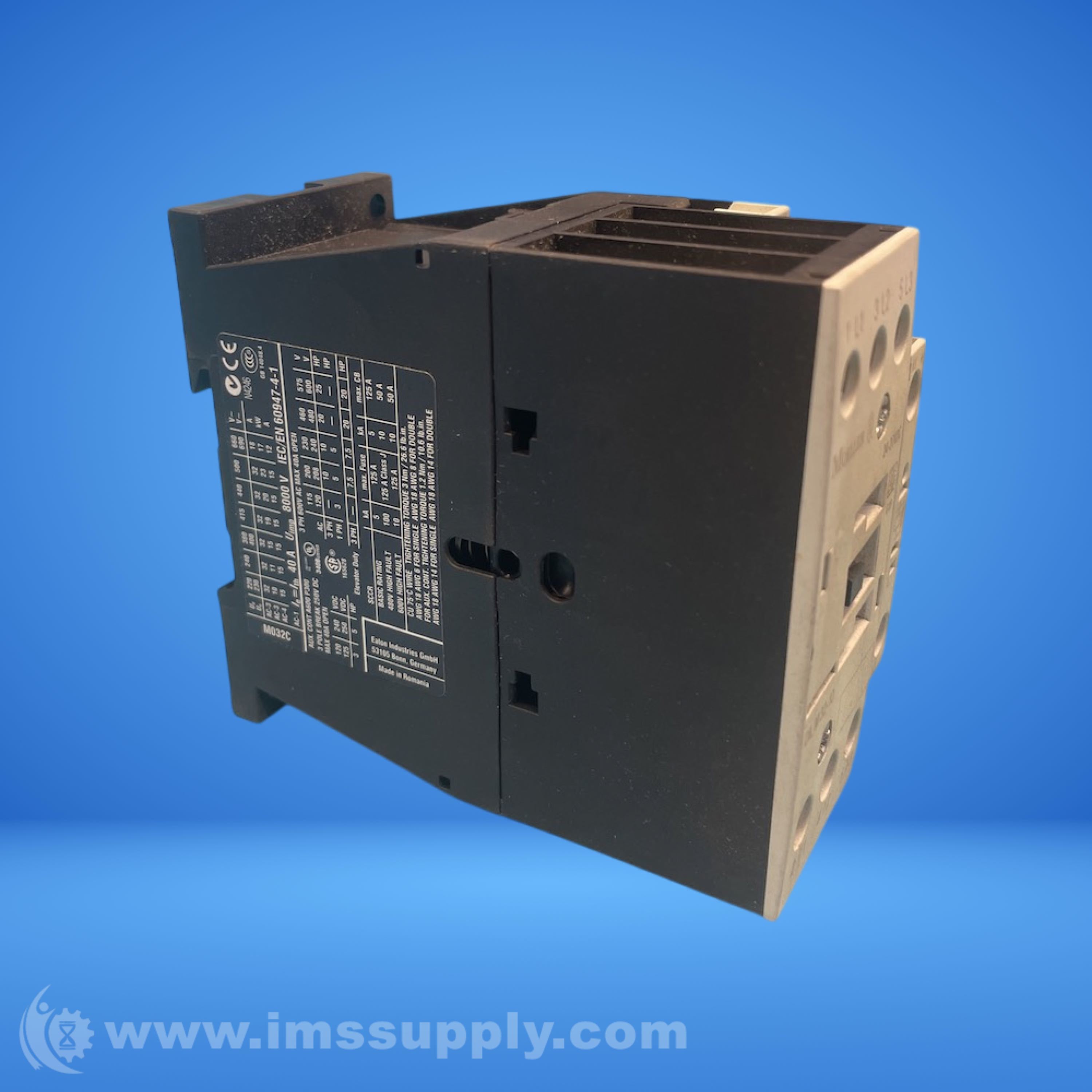

Moeller DILM32-10(RDC24) 3-Pole Contactor
3-pole IEC rated contactor for controlling electric motors, rated 32 AMPS AC-3, with 24V DC coil and 1 normally open auxiliary contact.
Specifications
- Coil Voltage: 24 volt DC
- AMP Rating: 32 AMPS AC-3, 40 AMPS AC-1
- Auxiliary Contacts: 1 normally open (N.O.)
- Maximum Horsepower Three Phase: 10 HP @ 230V, 20 HP @ 460V
- Mechanical Life: 10,000,000 operations
- Insulation Voltage: 690 Vac
- Degree of Protection: IP20
- Short-circuit Protection Rating: 20A (Type 2 coordination, 400V; gG/gL 500V)
- Standards: IEC/EN 60947, VDE 0660, UL, CSA, CCC, RoHS
New - Open Box:

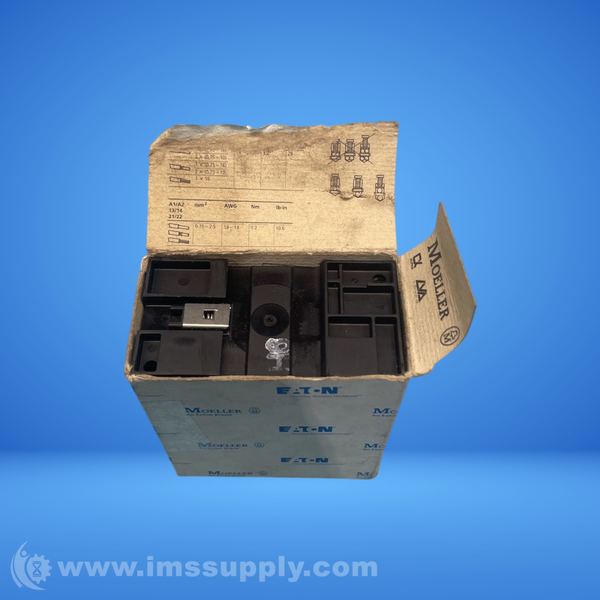

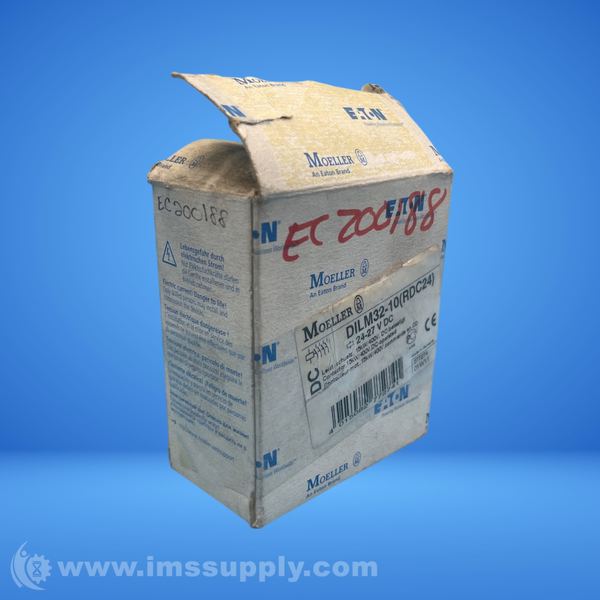

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
