MOELLER PKZM0-1.6 MANUAL MOTOR PROTECTOR
Quick Overview
Manufactured By: MOELLER ELECTRIC
Manufacturer Part Number: PKZM0-1.6
IMS Product Code: 1877562
Packaging: Sold Individually
Description:

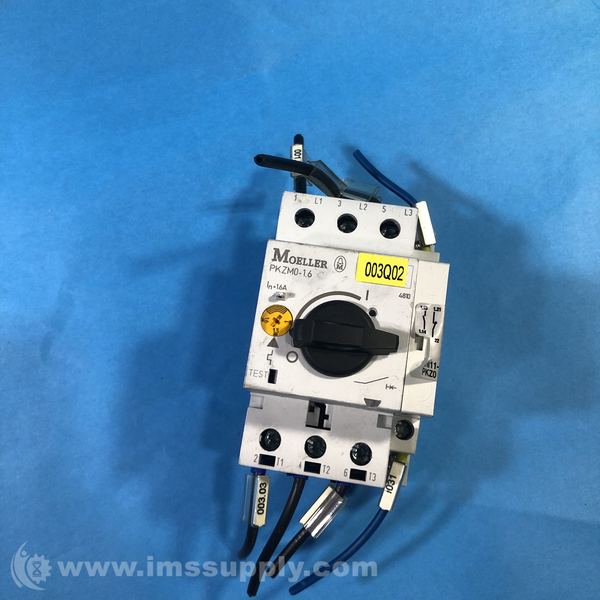

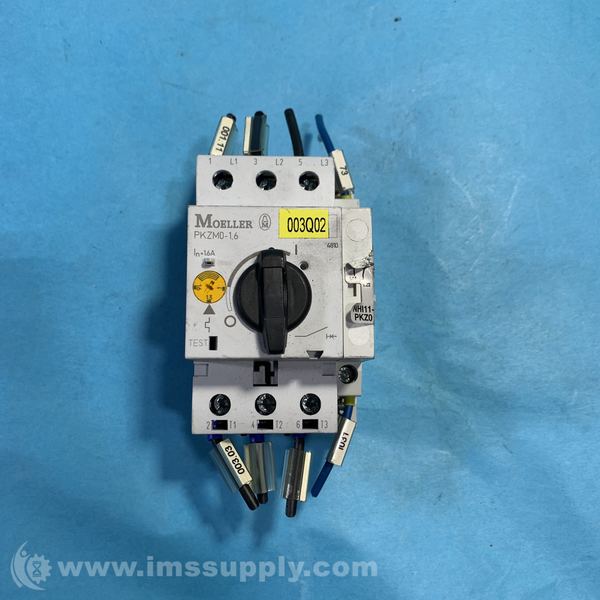

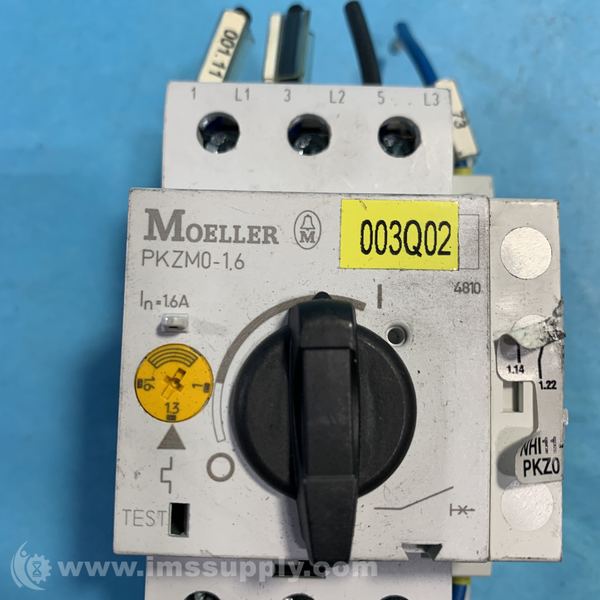

Moeller PKZM0-1.6 Manual Motor Protector
Adjustable thermal-magnetic motor protection device with rotary handle and screw terminals, rated for 600V AC, 1.6A maximum.
Specifications
- AMP Range: 1 to 1.6 AMPS
- Tripping Characteristic: Class 10
- Phase Loss Sensitivity: Yes
- Terminals: Screw
- Overload Release Adjustable: 1 - 1.6 AMPS
- Rated Un-interrupted Current: 1.6
- Setting: 1 - 1.6
- Maximum HP Three Phase 480V: 0.75
- Brand: Moeller
- MPN: PKZM0-1.6
- Poles: 3
- Amperage: 1.6A
- Thermal Adjustment Range: 1 - 1.6A
- Magnetic Trip Response: 22A
- Voltage Rating: 600V AC
- UL/CSA Short-Circuit Current Rating: 50 kA @ 600V AC
- Max. Listed Branch Circuit Protective Fuse: 600A
- Max. Listed Branch Circuit Protective Breaker: 600A
- UL/CSA Motor HP Rating @ 230V: 0.75 Hp
- Certifications: UL Listed, CSA Certified
- Degree of Protection: IP20
- Rated Impulse Withstand Voltage: 690v
- Rated Frequency: 40-60Hz
- Lifespan, Electrical: 100,000 operations
- Lifespan, Mechanical: 100,000 operations
- Short Circuit Release Tolerance: +/- 20%
- Type: Manual Motor Starter
- Country of Origin: Germany
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
