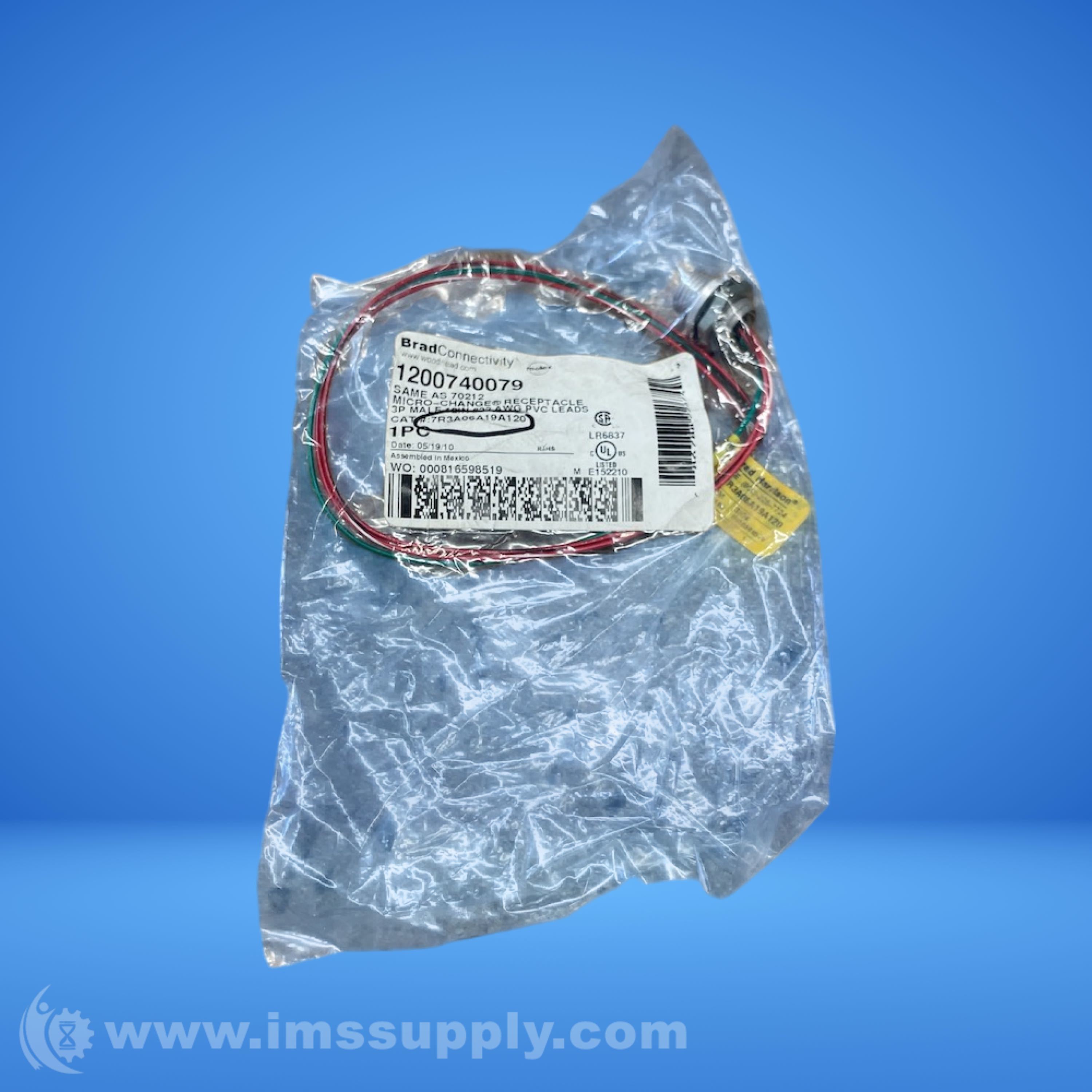

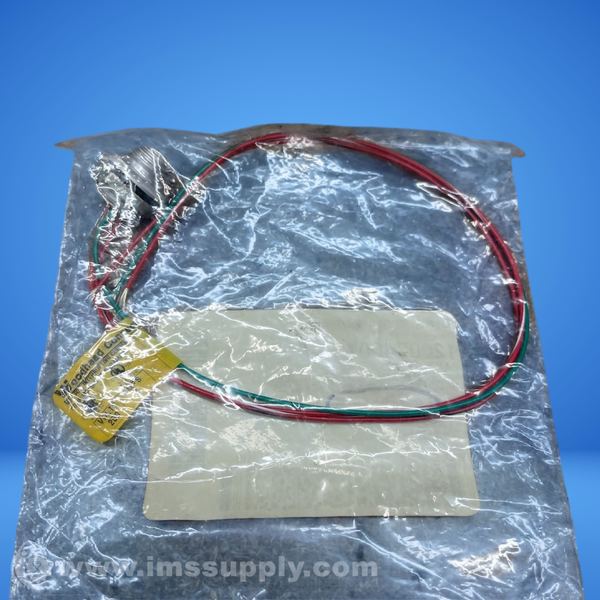

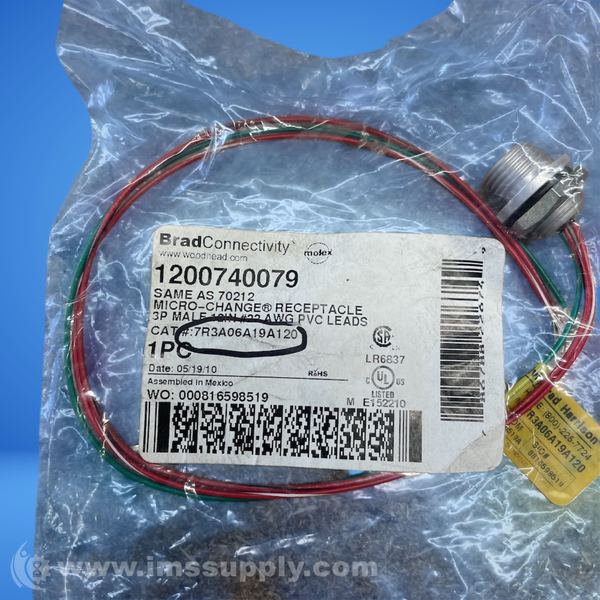

MOLEX 7R3A06A19A120 MICRO RECEPTACLE
Quick Overview
Manufactured By: MOLEX
Manufacturer Part Number: 7R3A06A19A120
IMS Product Code: 2148800
Packaging: Sold Individually
Description:
Molex 7R3A06A19A120 Micro Receptacle
Male, Micro Receptacle Straight Dual Keyway 250VAC/DC 4A
Specifications
- Type: Male, Micro Receptacle
- Connector Mating Size: 1/2 in-20 UNF
- Keyway: Dual Keyway
- Angle: Straight
- Poles: 3-Pole
- Wire-Pin Code: Auto Color Code
- Wire-Pin Colors: Green, Red/Blk, Red/Wht
- Voltage: 250VAC/DC
- Amps: 4A
- Material: Aluminum Shell
- Termination Type: Wire Leads
- Termination Size: 12.00" 22 AWG
- Mounting Size: 1/4"-18 NPT Mount
- Application/Rating - NEMA: NEMA 6P
- Application/Rating - IEC: IP 68
- Manufacturer Series: Micro-Change
