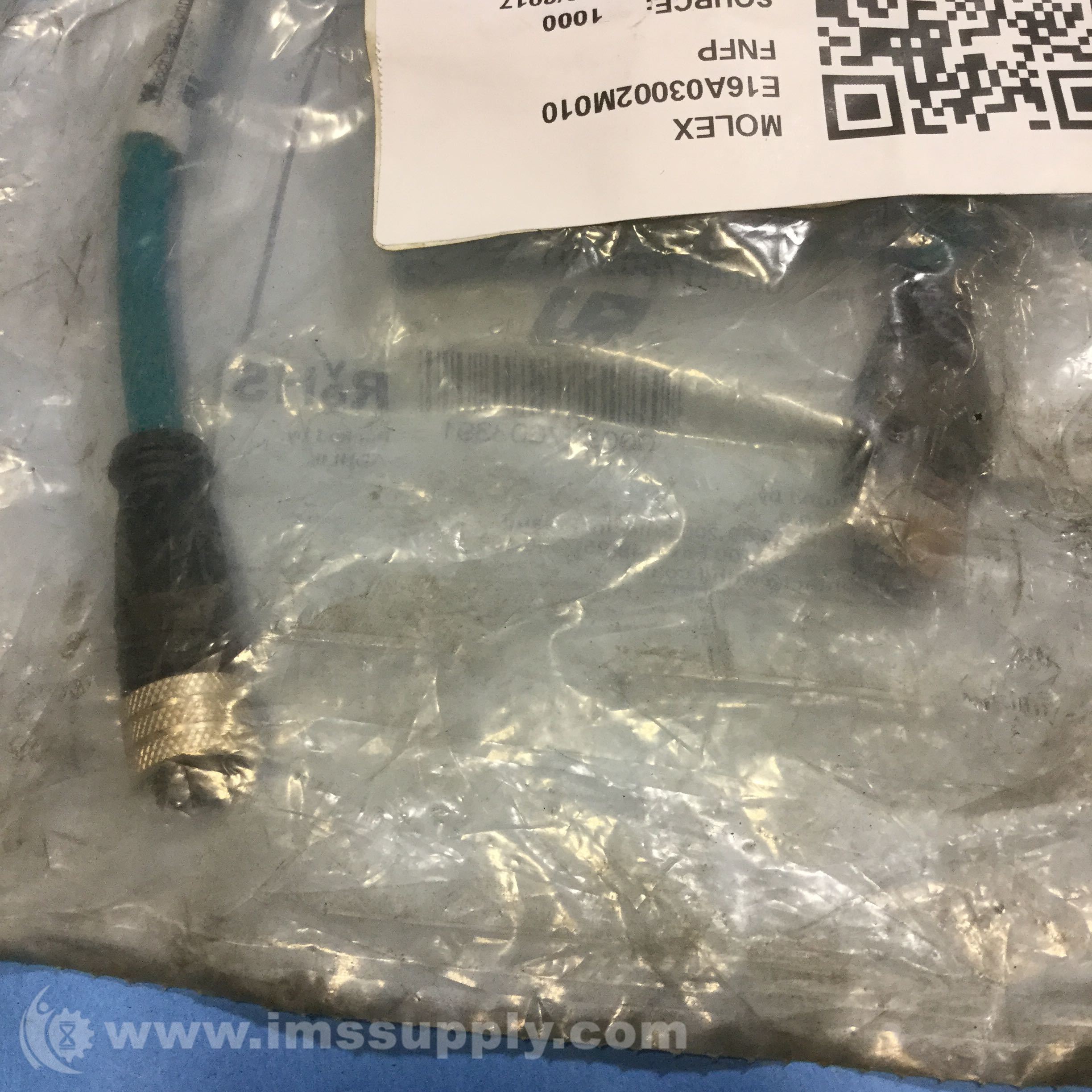

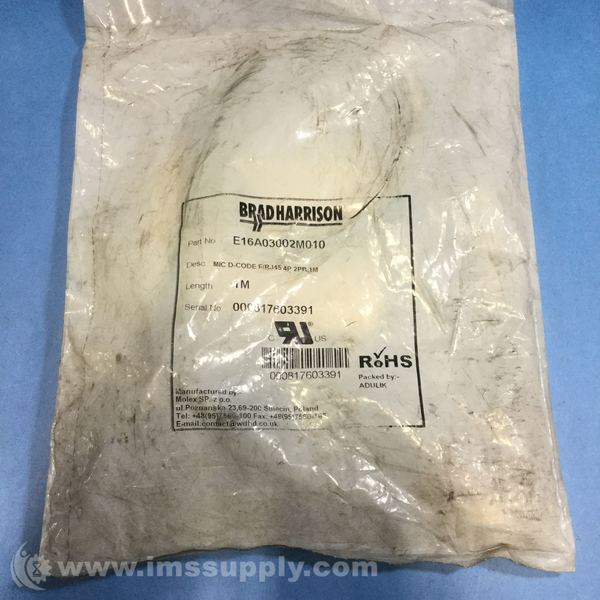

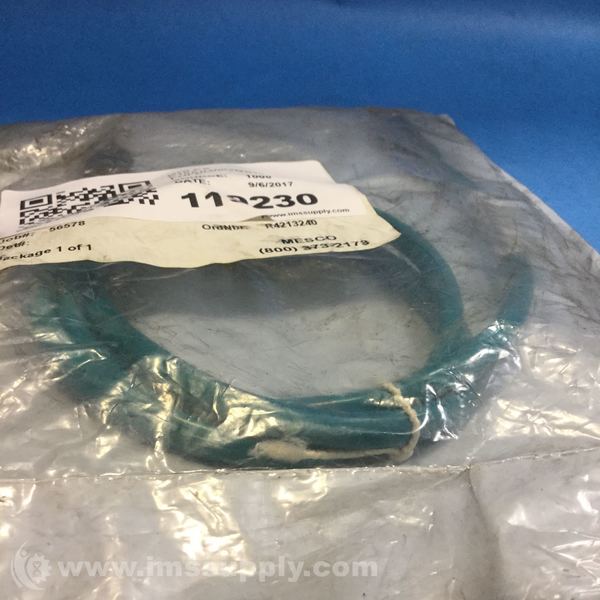

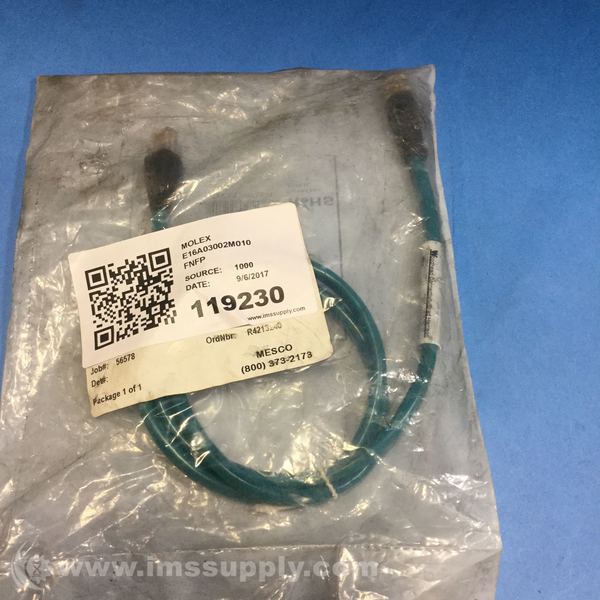

MOLEX E16A03002M010 ETHERNET CORDSET
Quick Overview
Manufactured By: MOLEX
Manufacturer Part Number: E16A03002M010
IMS Product Code: 1752821
Packaging: Sold Individually
Description:
Molex E16A03002M010 Ethernet Cordset
Double-ended industrial cordset with Micro-Change (M12) female straight connector and Brad RJ-45 male straight connector, 4 poles, 26 AWG, PVC cable, 1m length
Specifications
- Cordset Type: Double Ended
- Connection A: Micro-Change (M12) - Female Straight
- Connection B: Brad RJ-45 - Male Straight
- Wire Size (AWG): 26 AWG
- Cable Diameter: 6.35 mm, 0.250 in
- Cable Length: 1.00 m, 3.28 ft
- Cable Jacket Color: Blue Green
- Wire/Cable Type: Shielded-Stranded
- Max Current: 1.5 A
- Max Voltage: 125 V
- Number Of Poles: 4
- Keyway Type: D-coded
- IP Rating: IP67
- Coupling Style: Threaded
- Operating Temperature Range: -13 to 167 degrees F
- Material Cable Jacket: PVC
- Material Connector Body: PUR
- Material - Contact: Copper Alloy
- Material Coupling Nut: Nickel-Plated Brass
- Material - O-Ring: Fluoro-Elastomer
- Material Plating Mating: Gold over Nickel
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 10 minutes.
