MORSE 500A-1 TL TORQUE LIMITER
Quick Overview
Manufactured By: MORSE
Manufacturer Part Number: 500A-1 TL
IMS Product Code: 2148386
Packaging: Sold Individually
Description:

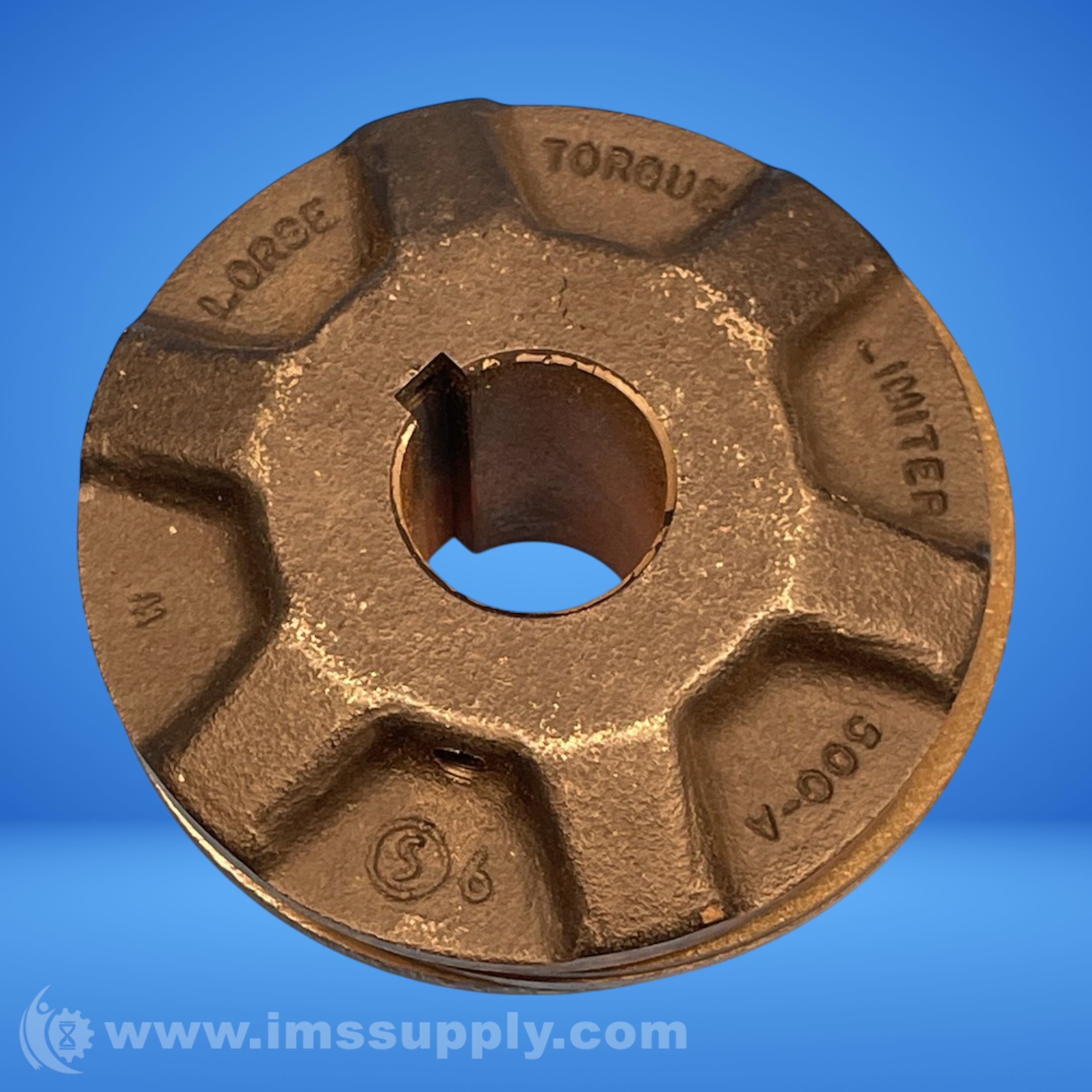

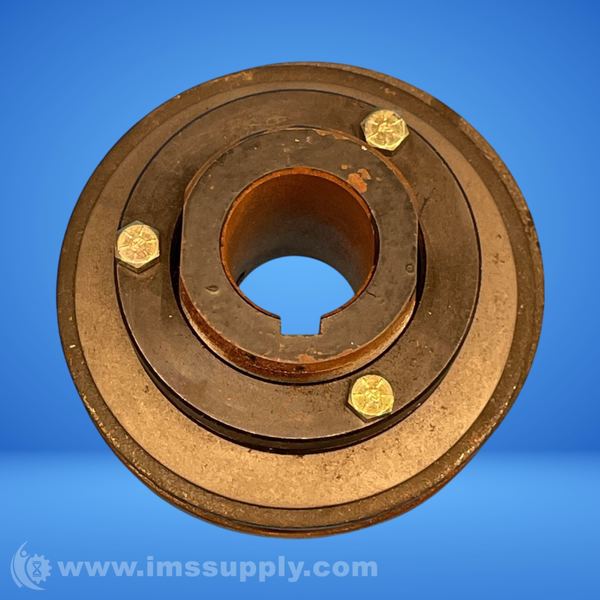

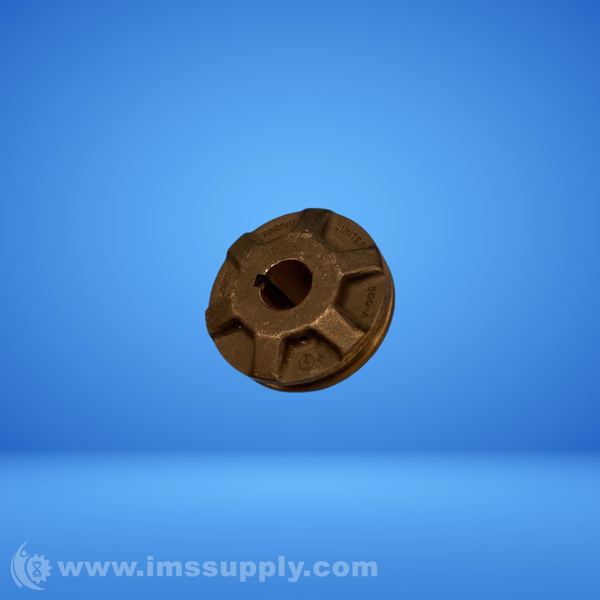

Morse 500A-1 TL Torque Limiter
Torque limiter with finished bore and keyway, various bore diameters, 5 inch outside diameter, 155 ft-lbs torque capacity, 1000-1400 rpm max.
Specifications
- Bore Type: Finished w/ Keyway
- Torque Capacity: 155 ft-lbs
- Outside Diameter: 5.0000 in
- Max Rpm: 1000-1400 rpm
- Overall Length: 3.0000 in
- Series: 500A
- Backlash: Zero
- Pilot Size: 2.878/2.880 in
- Torque Range: 35 to 155 ft-lbs
- Weight: 6.5-7.76 lbs
