More Views

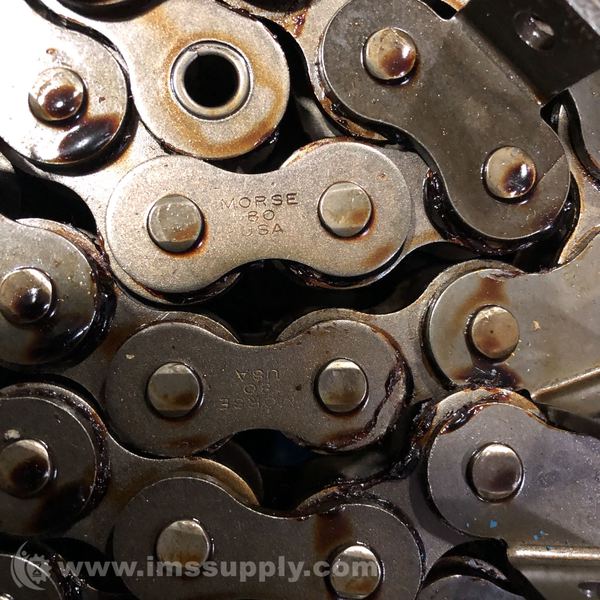

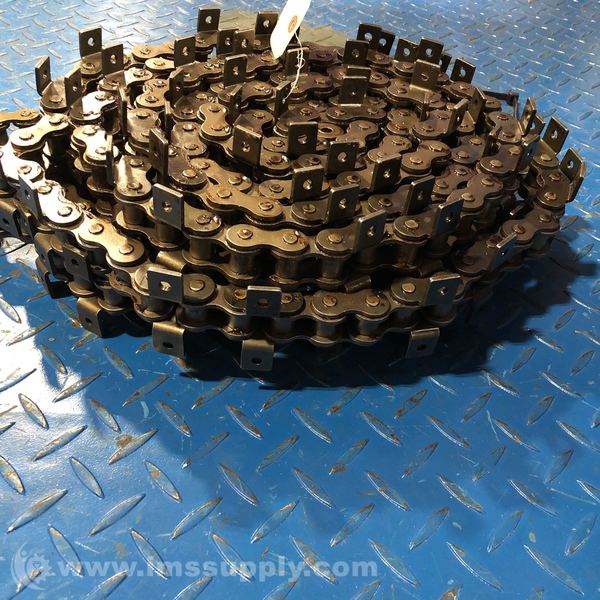

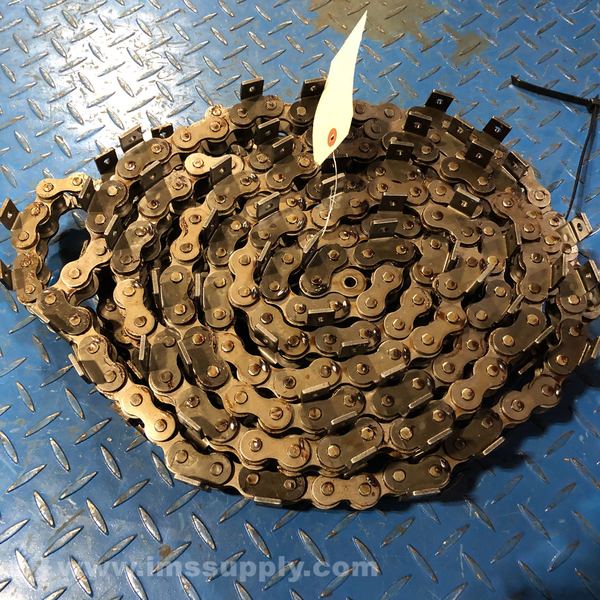

MORSE 80 DOUBLE STRAND ROLLER CHAIN
Quick Overview
Manufactured By: MORSE
Manufacturer Part Number: 80
IMS Product Code: 1915217
Packaging: Sold Individually
Description:
Morse 80 Double Strand Roller Chain
Double strand ANSI roller chain link with 1 inch pitch and cotter pin connecting link.
Specifications
- Chain Construction: Part (CL, Ol, RL)
- Chain Type: ANSI
- Material: Carbon Steel
- Rated Working Load: 2900 lbs
- Pin Length (Lc): 1.21 in
- Chain Series: 80, 80-2, 80-3, 80-4, 80-6, 80-8
- Roller Dia.: 5/8 in
- Type: Connecting (Master) Link
- Pin Diameter: 0.313 in
- Pin Length (Lr): 1.3 in
- Chain No.: 80
- Duty: Standard-Duty
- Roller Width: 0.63 in
- No. of Strands Across: 2
- Pin Material: Carbon Steel
- Chain Pitch: 1 in
- Link Plates Thickness: 0.13 in
- Link Type: Cotter Pin, Slip Fit
- Link Plates Height: 0.91 in
- Pin Overall Length: 2.432 in
- Weight: 0.255 LB
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, March 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
