MOXA AWK-1137C INDUSTRIAL WIRELESS CLIENT
Quick Overview
Manufactured By: MOXA
Manufacturer Part Number: AWK-1137C
IMS Product Code: 2155164
Packaging: Sold Individually
Description:

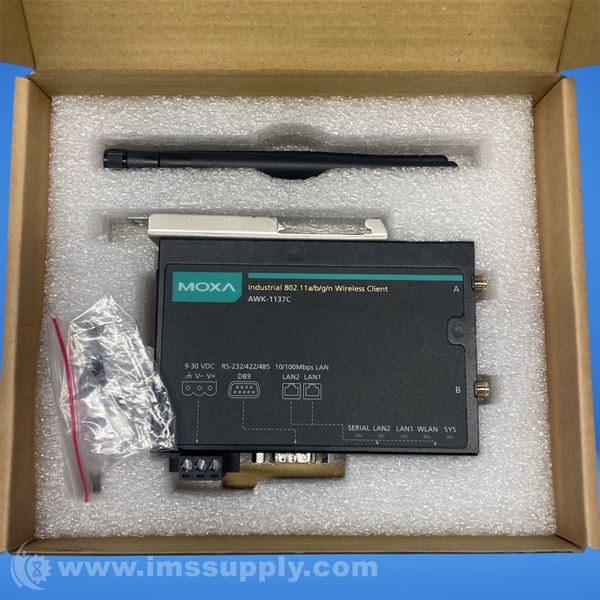

Moxa AWK-1137C Industrial Wireless Client
Entry-level industrial Wi-Fi 4 (802.11n) wireless clients
Specifications
- Input Voltage: 9 to 30 VDC
- Dimensions: 77.1 x 115.5 x 26 mm
- Weight: 470 g
- Housing: Metal
- IP Rating: IP30
- WLAN Standards: 2.4 GHz: 802.11n with 64 QAM support, 20/40 MHz; 5 GHz: 802.11n with 64 QAM support,20/40 MHz; WMM for QoS
- Frequency Band for US (20 MHz operating channels): 2.412 to 2.462 GHz (11 channels); 5.180 to 5.240 GHz (4 channels); 5.260 to 5.320 GHz (4 channels) DFS; 5.500 to 5.700 GHz (11 channels) DFS; 5.745 to 5.825 GHz (5 channels)
- Wireless Security: WEP encryption (64-bit and 128-bit); WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES); WPA/WPA2-Personal
- Transmission Rate: 2.4 GHz: Up to 144.4 Mbps; 5 GHz: Up to 300 Mbps
- Transmitter Power: US: 2.4 GHz: 26 dBm; 5 GHz (UNII-1): 23 dBm; 5 GHz (UNII-2): 23 dBm; 5 GHz (UNII-2e): 23 dBm; 5 GHz (UNII-3): 23 dBm; EU: 2.4 GHz: 18 dBm; 5 GHz (UNII-1): 23 dBm; 5 GHz (UNII-2): 23 dBm; 5 GHz (UNII-2e): 23 dBm; JP: 2.4 GHz: 18 dBm; 5 GHz (UNII-1): 23 dBm; 5 GHz (UNII-2): 23 dBm; 5 GHz (UNII-2e): 23 dBm
- Receiver Sensitivity for 802.11a (measured at 5.680 GHz): Typ. -90 @ 6 Mbps; Typ. -88 @ 9 Mbps; Typ. -87 @ 12 Mbps; Typ. -85 @ 18 Mbps; Typ. -81 @ 24 Mbps; Typ. -78 @ 36 Mbps; Typ. -74 @ 48 Mbps; Typ. -73 @ 54 Mbps
- Receiver Sensitivity for 802.11n (5 GHz): Typ. -69 dBm @ MCS7 20 MHz; Typ. -70 dBm @ MCS15 20 MHz; Typ. -64 dBm @ MCS7 40 MHz; Typ. -66 dBm @ MCS15 40 MHz
- WLAN Operation Mode: Client; Client-Router; Slave; Sniffer
- Antenna: External, 2/2 dBi; Omni-directional
- Antenna Connectors: 2 RP-SMA female
- 10/100BaseT(X) Ports (RJ45 connector): 2
- Standards: IEEE 802.3 for 10BaseT; IEEE 802.3u for 100BaseT(X); IEEE 802.1Q for VLAN Tagging
- Management: DHCP Server/Client; HTTP; IPv4; LLDP; SMTP; SNMPv1/v2c/v3; Syslog; TCP/IP; Telnet; UDP; Proxy ARP; VLAN; Wireless Search Utility; MXconfig; MXview One; MXview Wireless; Turbo Roaming Analyzer
- Routing: Port forwarding; Static Route; NAT
- Security: HTTPS/SSL; RADIUS; SSH
- Time Management: NTP Client; SNTP Client
- Firewall: Filter: ICMP; MAC address; IP protocol; Port-based
- Connector: DB9 male
- Serial Standards: RS-232, RS-422/485, RS-232/422/485
- Operation Modes: Disabled, Real COM, RFC2217, TCP Client, TCP Server, UDP
- Data Bits: 5, 6, 7, 8
- Stop Bits: 1, 1.5, 2
- Parity: None, Even, Odd, Space, Mark
- Flow Control: None, RTS/CTS, XON/XOFF
- Baudrate: 75 bps to 921.6 kbps
- Serial Data Log: 256 KB
- Serial Signals: RS-232: TxD, RxD, RTS, CTS, DCD, GND, DTR, DSR; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND; RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
- LED Indicators: SYS, LAN1, LAN2, WLAN, Serial
- Buttons: Reset button
- Operating Temperature: Standard models: 0 to 60°C; Wide temp. models: -40 to 75°C
- Storage Temperature (package included): -40 to 85°C
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- EMC: EN 61000-6-2/-6-4; EN 55032/35
- EMI: CISPR 22, FCC Part 15B Class A
- EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV; IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m; IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV; IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV; IEC 61000-4-6 CS: 10 V; IEC 61000-4-8 PFMF
- MTBF: 1,125,942 hrs
