N-TRON 508TX-A INDUSTRIAL ETHERNET SWITCH
Quick Overview
Manufactured By: N-TRON
Manufacturer Part Number: 508TX-A
IMS Product Code: 984412
Packaging: Sold Individually
Description:

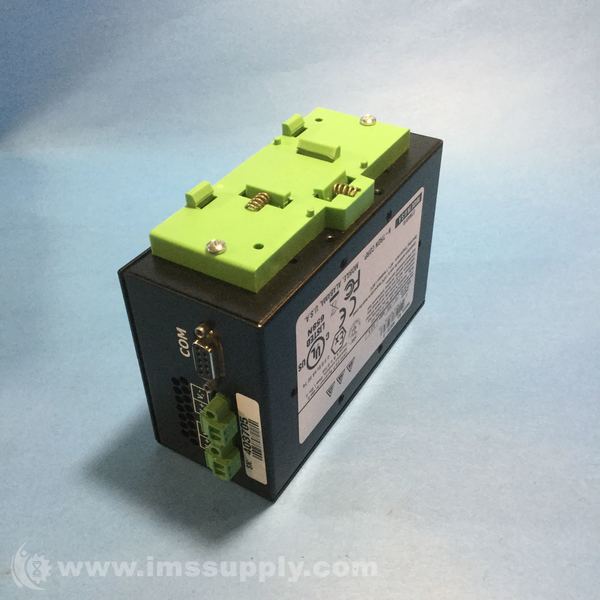

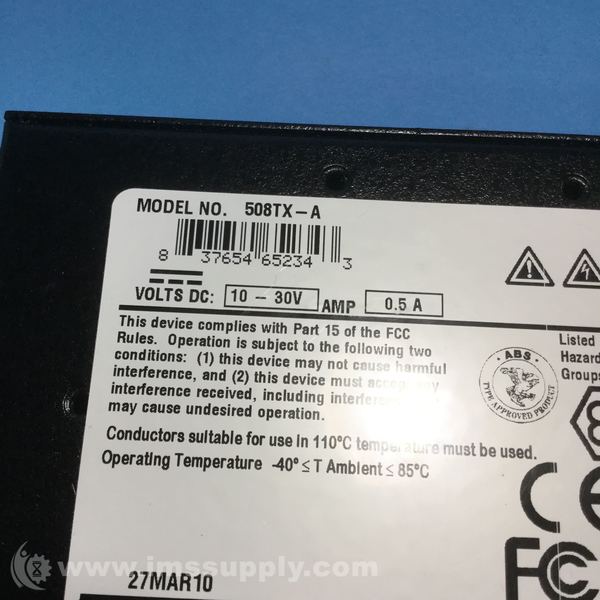

N-Tron 508TX-A Industrial Ethernet Switch
8-port industrial Ethernet switch with 10/100 Mbps ports, unmanaged, DIN rail mount, -40 to 85 degrees C operating temperature.
Specifications
- Ports: 8
- Speed: 10/100 Mbps
- Management: Unmanaged
- Power: 24V DC
- Operating Temperature: -40 to 85 degrees C
- Primary Port Style: RJ-45
- Primary Port Standard: 100Base-TX, 10Base-T
- Voltage: 10-30 VDC
- Nominal Voltage: 12 VDC, 24 VDC
- Power Over Ethernet (PoE): No
- Enclosure Composition: Metallic
- Mounting: DIN Rail
- Protection Rating: IP20
- Approvals: CE, cULus
- Net Weight: 1.485 lbs
- Number of MAC Addresses: 4,000
- Latency Typ.: 2.1 µS
- Switching Method: Store & Forward
- Height: 2.27 inches (5.76 cm)
- Width: 5.45 inches (13.85 cm)
- Depth: 3.44 inches (8.74 cm)
- Weight: 1.6 lbs (0.8 kg)
- Din-Rail: 35mm
- Redundant Input Voltage: 10-30V DC
- Input Current: 200 mA@24V
- Inrush: 9.0Amp/0.6ms@24V
- Operating Humidity: 10% to 95% (Non Condensing)
- Operating Altitude: 0 to 10,000 ft.
- Shock: 200g @ 10ms
- Vibration/Seismic: 50g, 5-200Hz, Triaxial
- MTBF: >2Million Hours
- 10BaseT: >Cat3 Cable
- 100BaseTX: >Cat5 Cable
- 10/100BaseTX: Eight RJ-45 Copper Ports
- Autosensing: 10/100BaseTX, Duplex, and MDIX
- Protection: ESD and Surge Protection on all Built-in Ports
- Throughput: Up to 2.6 Gb/s
- Power Inputs: Redundant Power Inputs (10-30 VDC)
- LED Indicators: Bi-Color LED's For Link, Speed, Activity & Duplex Status
- Management Features: IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, N-View Remote Monitoring Technology
New:

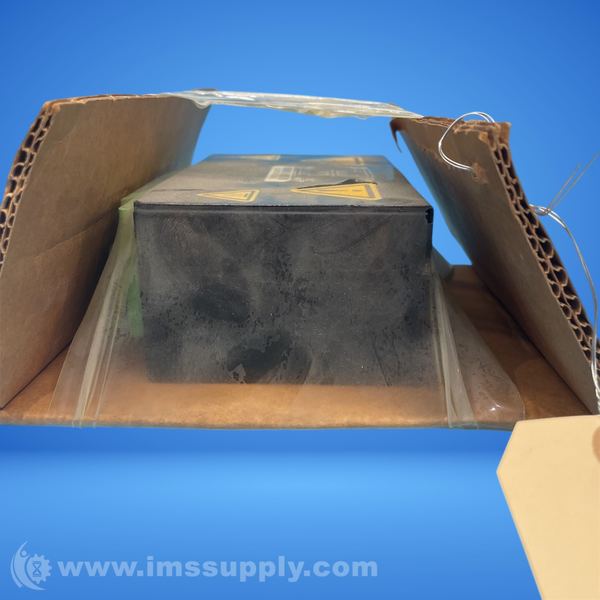

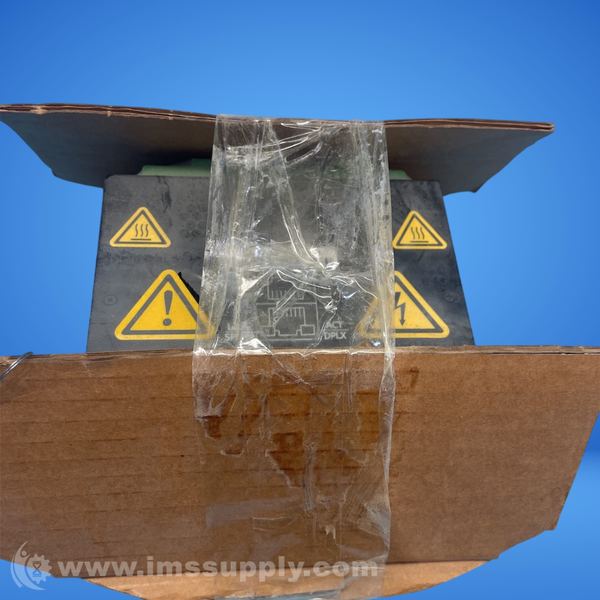

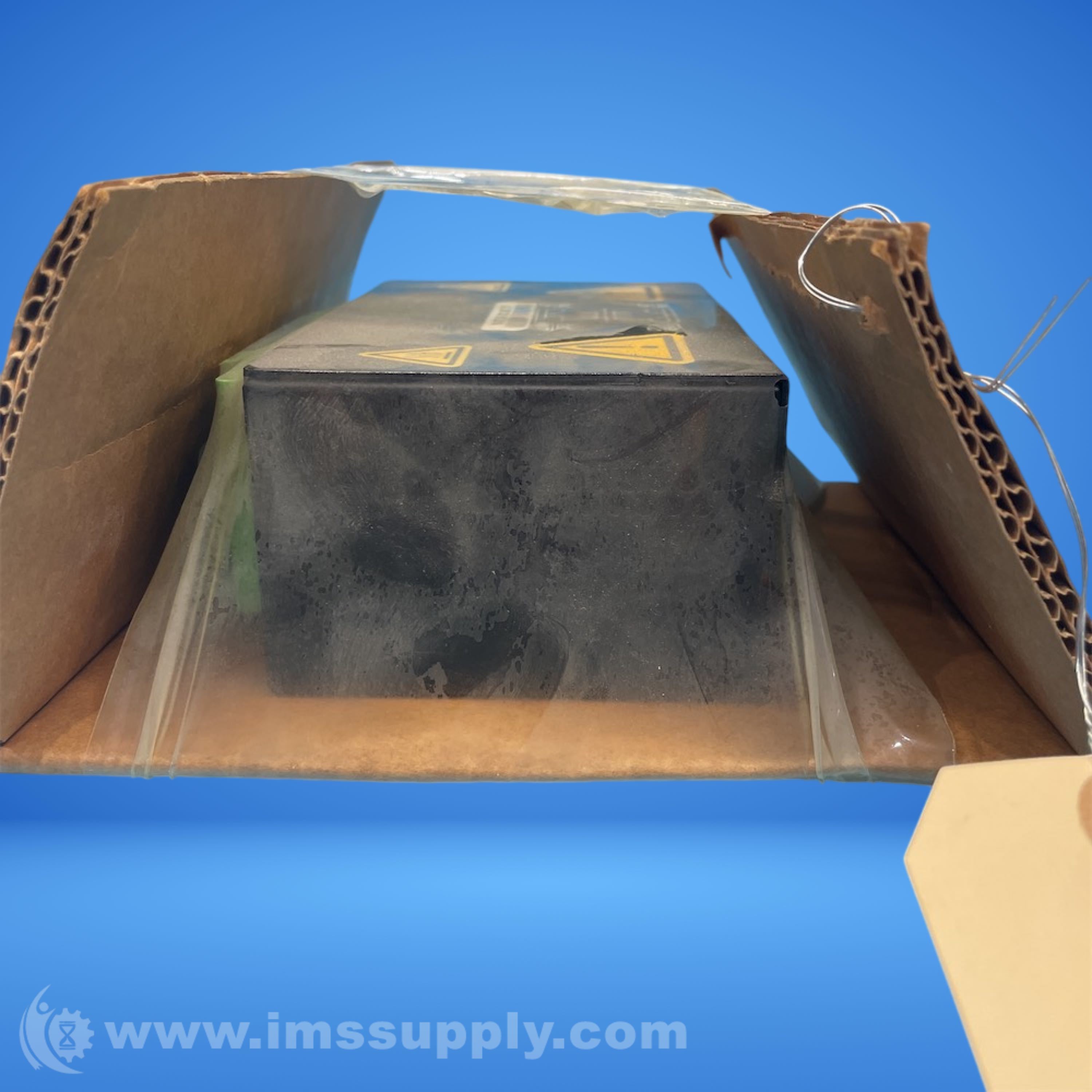

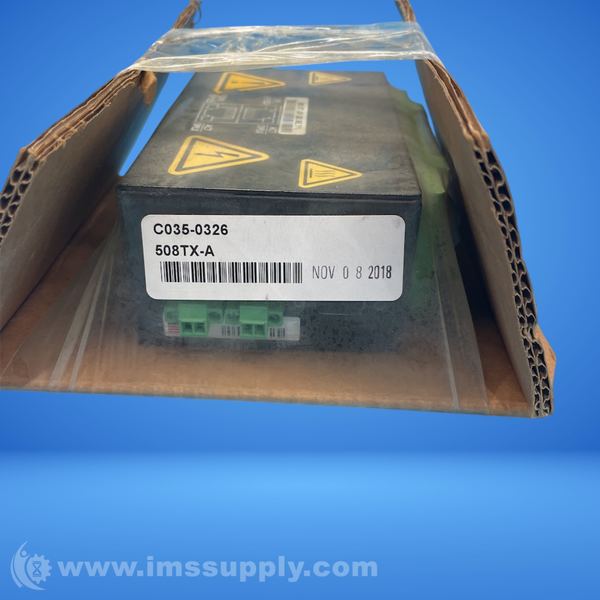

A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 25 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 11 hours and 25 minutes.
