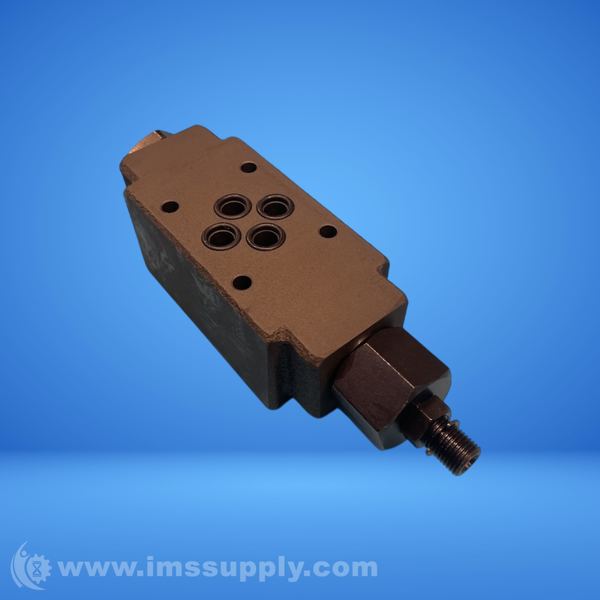

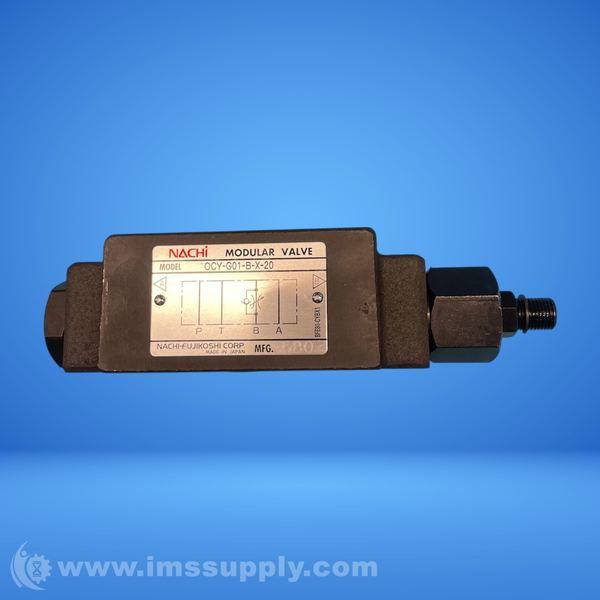

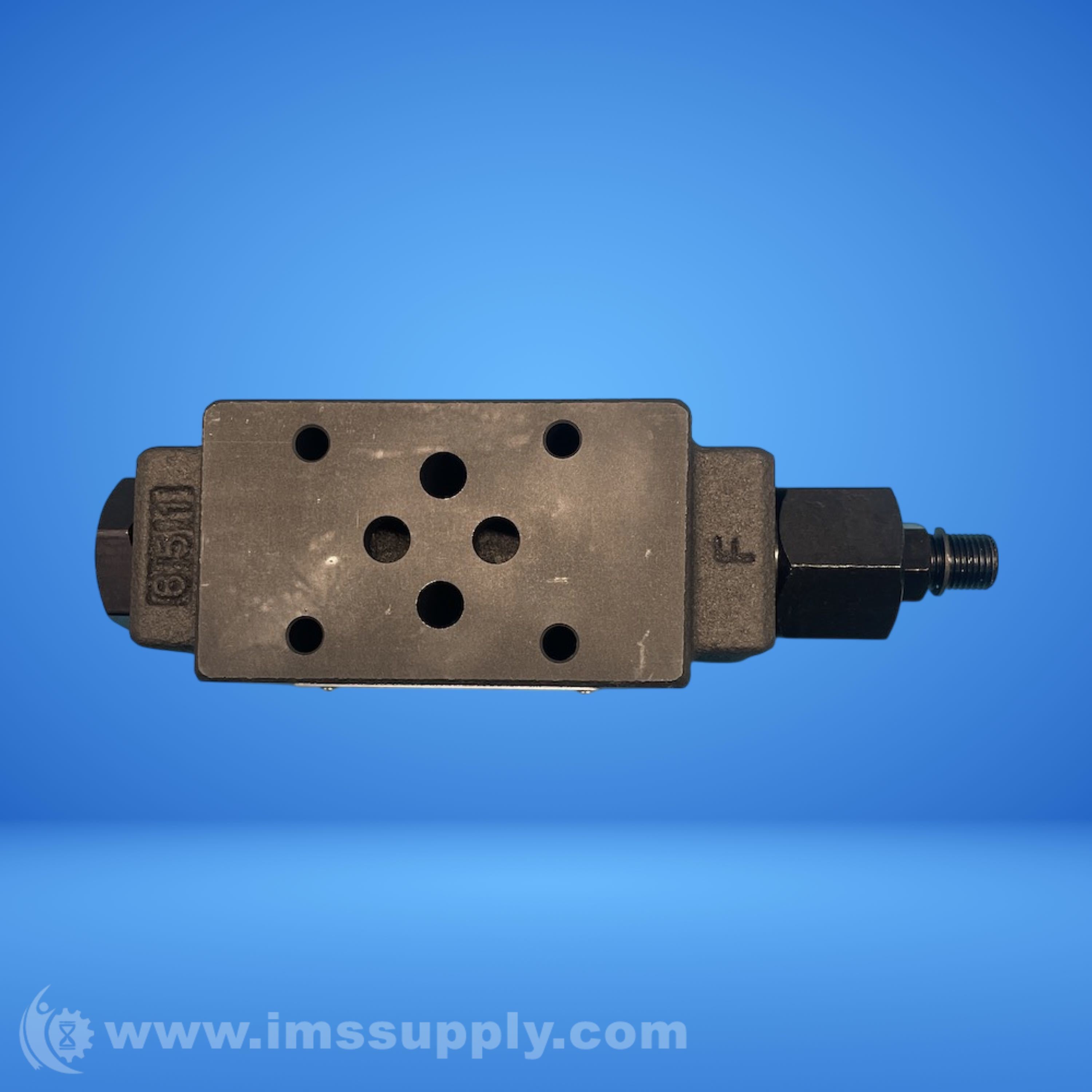

NACHI OCY-G01-B-X-20 MODULAR FLOW CONTROL VALVE
Quick Overview
Manufactured By: NACHI
Manufacturer Part Number: OCY-G01-B-X-20
IMS Product Code: 2144266
Packaging: Sold Individually
Description:
Nachi OCY-G01-B-X-20 Modular Flow Control Valve
Modular flow control valve with a built-in check valve used to control actuator speed and other applications where flow control in a specific line may be required.
Specifications
- Adjustment Type: Hand Screw
- Control Mechanism: Meter In
- Control Port: B port
- Design Number: 20
- Diameter: 01
- Flow Rating: 50
- Height: 1.81
- Length: 1.57
- Max. Operating Pressure: 25 MPa
- Maximum Control Flow Rate: 50 l/min
- Model: OCY: With check valve
- Mounting Method: Gasket Type
- Nominal Diameter (size): 1/8
- Pressure Rating: 3625
- Valve Interface: D03 (NG6)
- Valve Type: Modular (Stacking) Valve, Meter In
- Weight: 2.7 / 1.2, 2.8, 2.2 lbs
- Width: 7.48
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, December 1, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
