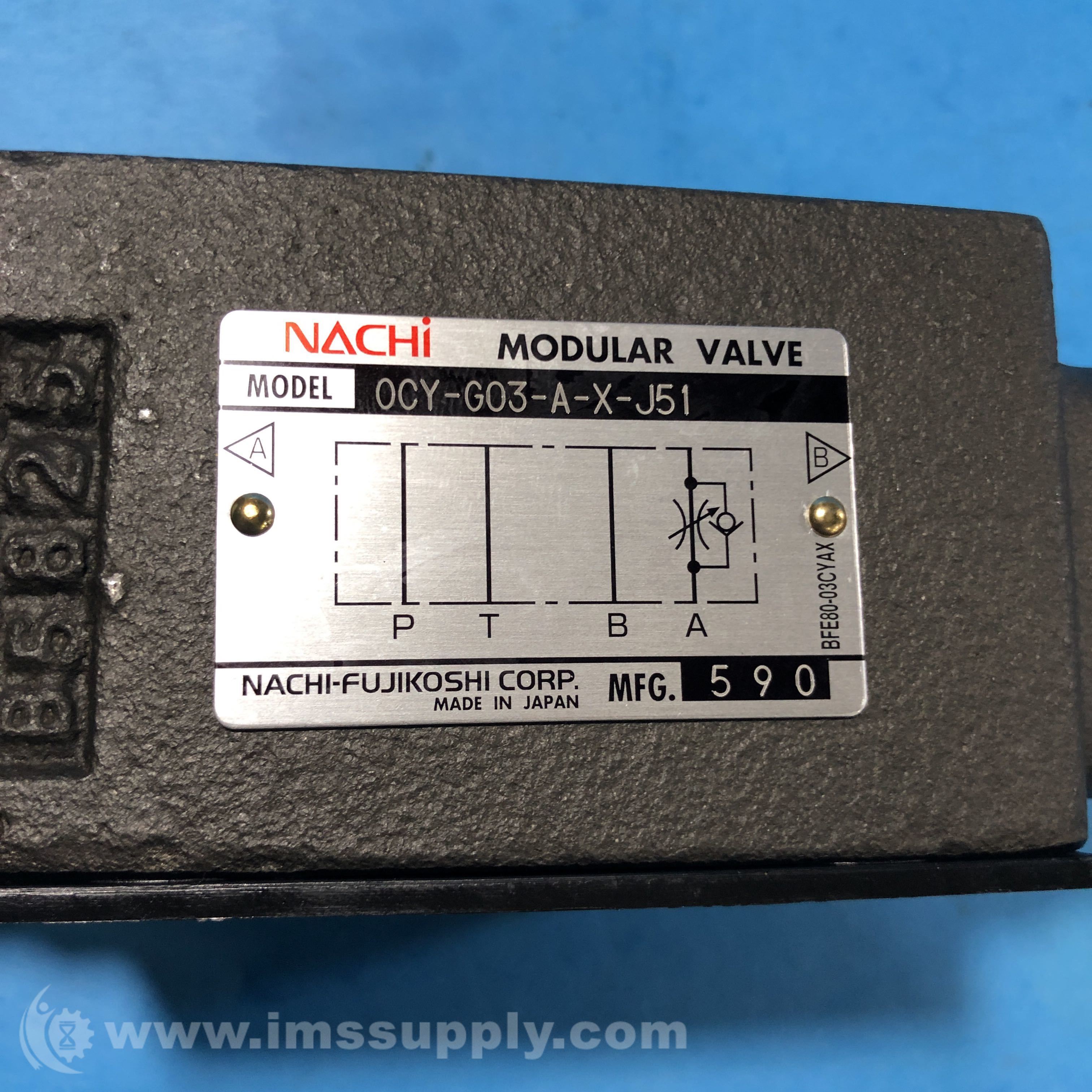

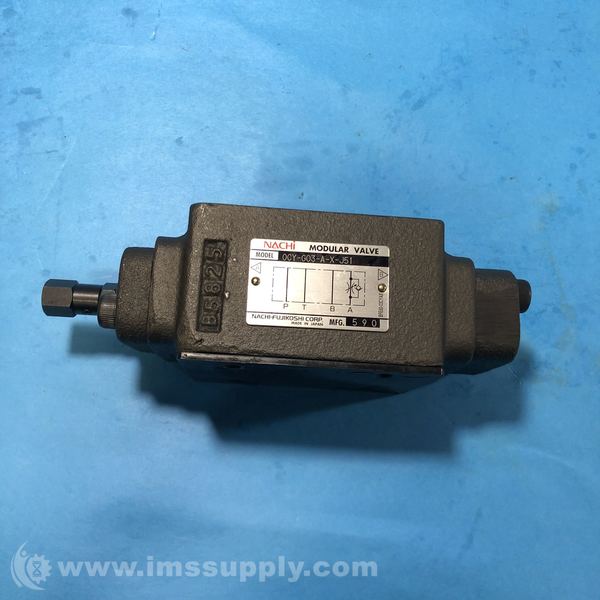

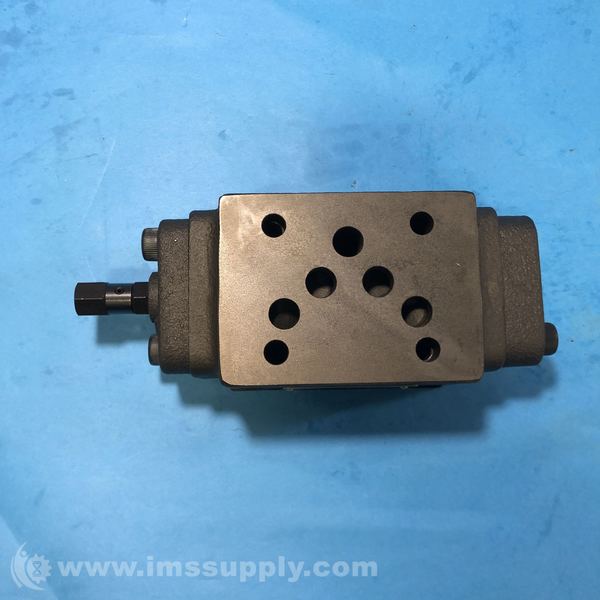

NACHI OCY-G03-A-X-J51 MODULAR FLOW CONTROL VALVE
Quick Overview
Manufactured By: NACHI
Manufacturer Part Number: OCY-G03-A-X-J51
IMS Product Code: 1915420
Packaging: Sold Individually
Description:
Nachi OCY-G03-A-X-J51 Modular Flow Control Valve
Modularized flow control valve used for controlling actuator speed. Maintains constant flow despite changes in oil temperature or pressure.
Specifications
- Model: OCY: With check valve
- Mounting Method: G: Gasket Type
- Diameter: 03: OCY Only
- Control Port: A: A Port
- Control Mechanism: X: Meter In
- Design Number: J51: M6 Mounting Bolts (For 03 Size)
- Type: Meter-in Flow Regulator
- Valve Type: Modular (Stacking) Valve, Meter In
- Adjustment Type: Hand Screw
- Valve Interface: D05 (NG10)
- Flow Rating: 100
- Pressure Rating: 3625
- Nominal Diameter (size): 3/8
- Maximum Control Flow Rate: 100 l/min
- Max. Operating Pressure: 25 MPa
- Height: 2.76 in
- Length: 2.17 in
- Width: 8.9 in
- Weight: 6.61 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
