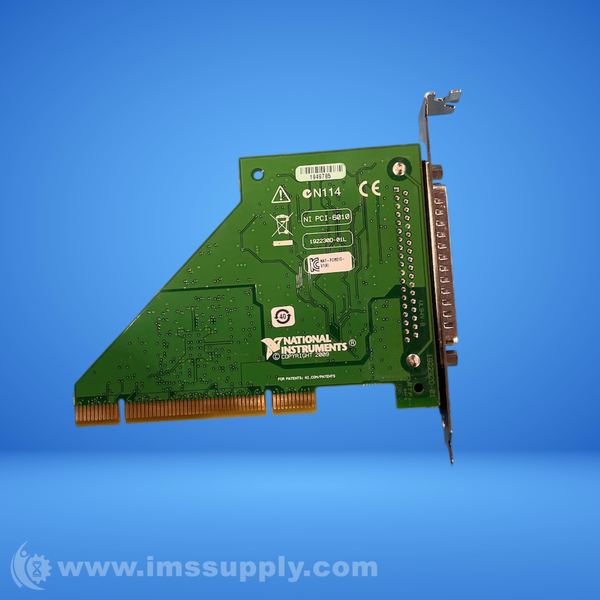

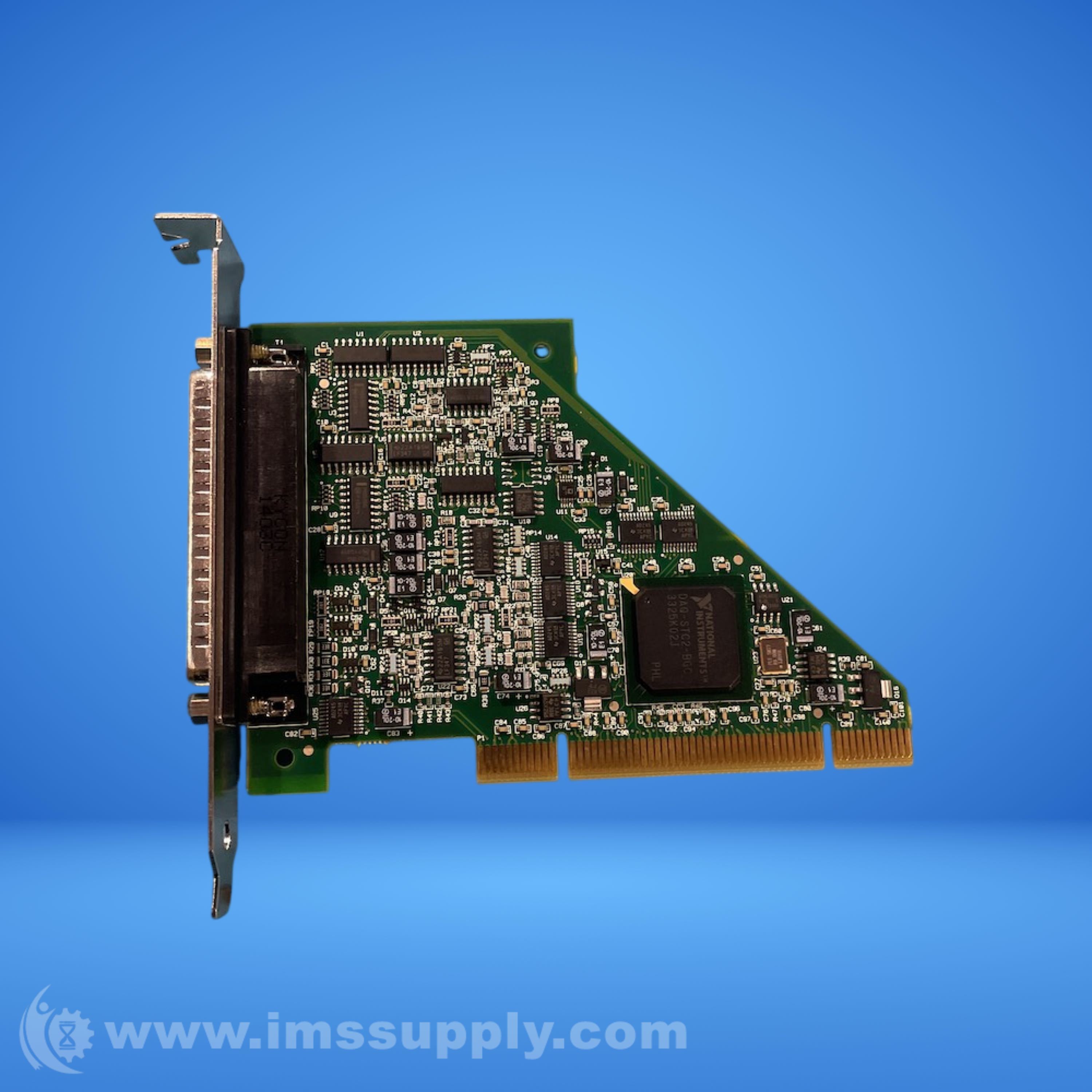

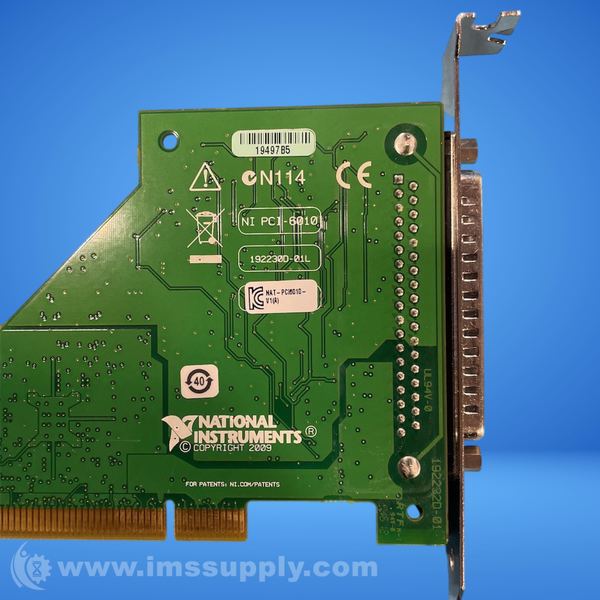

NATIONAL INSTRUMENTS PCI-6010 MULTIFUNCTION I/O DEVICE
Quick Overview
Manufactured By: NATIONAL INSTRUMENTS
Manufacturer Part Number: PCI-6010
IMS Product Code: 2151638
Packaging: Sold Individually
Description:
National Instruments PCI-6010 Multifunction I/O Device
PCI Multifunction I/O Device with 16 analog inputs, 2 analog outputs, 6 digital inputs, 4 digital outputs, and counter/timer I/O.
Specifications
- Analog Inputs: 16
- Analog Input Resolution: 16-Bit
- Analog Input Sample Rate: 200 kS/s
- Analog Outputs: 2
- Digital Inputs: 6
- Digital Outputs: 4
- Interface: PCI
- Connector: 37-pin D-SUB
- Channels: 16 Analog Inputs (16-Bit, 200 KS/s) or 8 differential, 2 Analog Outputs, 6 Digital Input, 4 Digital Outputs, 2 Counter/Timer I/O 32 bits
- Power Requirements: +5 V, +12 V, –12 V 0.3 A, 0.13 A, 0.08 A
- Dimensions: 4.7 × 3.4 in
- Analog Input Channels: 8 differential or 16 single-ended
- ADC Resolution: 16-bit
- Maximum Sample Rate: 200 kS/s
- Input Voltage Range: ±5 V, ±1 V, ±0.2 V
- Operating Temperature Range: 0 to 55 degrees C
- Storage Temperature Range: -20 to 70 degrees C
- Counter/Timer Resolution: 32-bit
- Base Clock Frequencies: 10 MHz, 100 kHz
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
