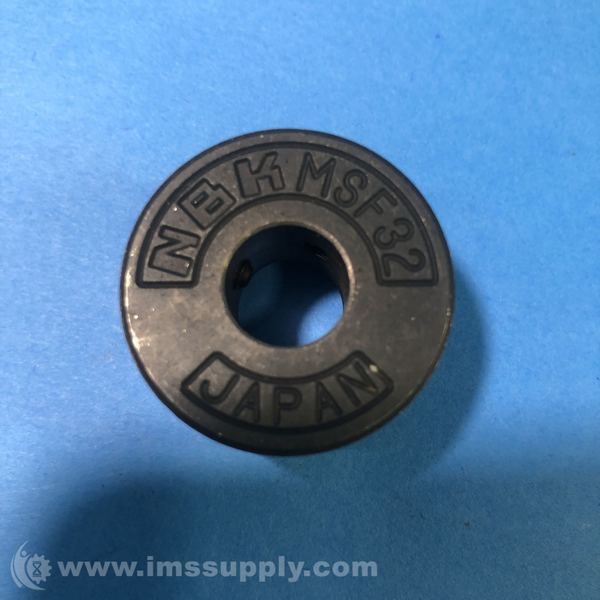

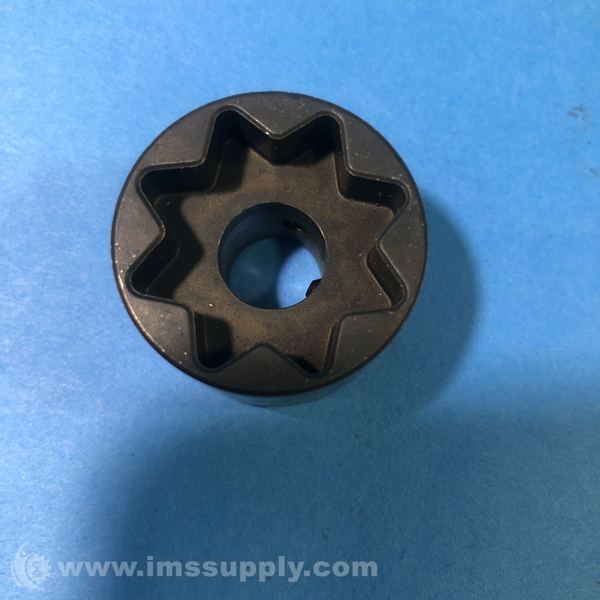

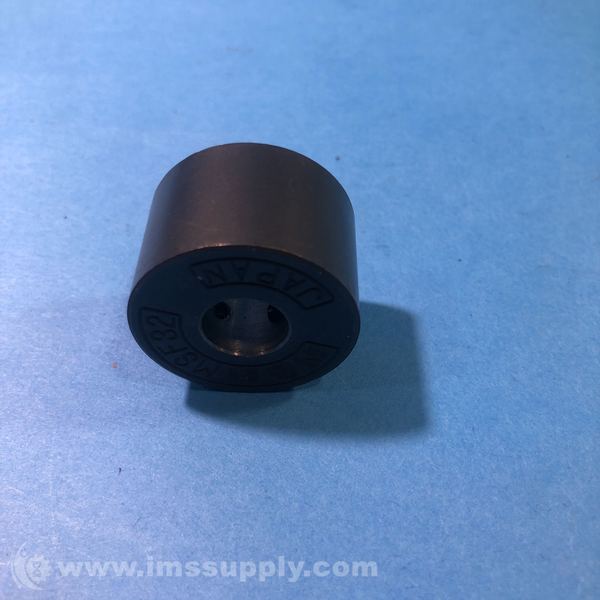

NBK MSF32 FLEXIBLE COUPLING
Quick Overview
Manufactured By: NBK
Manufacturer Part Number: MSF32
IMS Product Code: 1926137
Packaging: Sold Individually
Description:
NBK MSF32 Flexible Coupling
Serrated interlock for torque transfer. Flexible coupling with a simple structure.
Specifications
- Max. Bore Diameter: 15 mm
- Rated Torque: 3.26 N·m
- Max. Torque: 6.53 N·m
- Max. Rotational Frequency: 19000 min^-1
- Moment of Inertia: 2.5×10^-5 kg·m^2
- Static Torsional Stiffness: 528.03 N·m/rad
- Max. Lateral Misalignment: 0.2 mm
- Max. Angular Misalignment: 2 °
- Mass: 150 g
- Standard Bore Diameter: 8 mm, 10 mm, 12 mm, 14 mm
- Material/Finish: Casing: ZDC2 Cathodic Electrodeposition Coating, Sleeve: Polyurethane, Hex Socket Set Screw: SCM435 Ferrosoferric Oxide Film (Black)
- Allowable Operating Temperature: -20? to 60?
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
