NELSON TH4X325 THERMOSTAT
Quick Overview
Manufactured By: NELSON
Manufacturer Part Number: TH4X325
IMS Product Code: 2168026
Packaging: Sold Individually
Description:

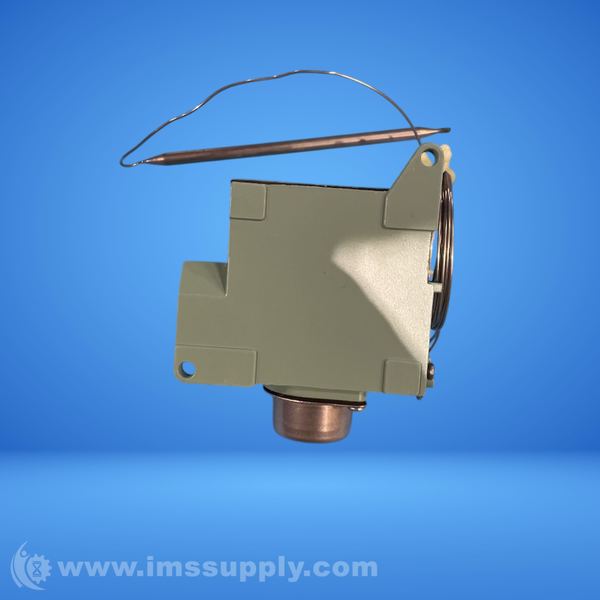

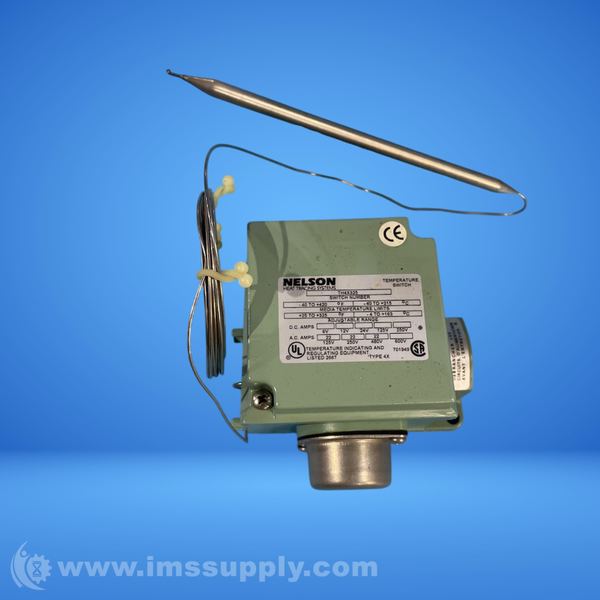

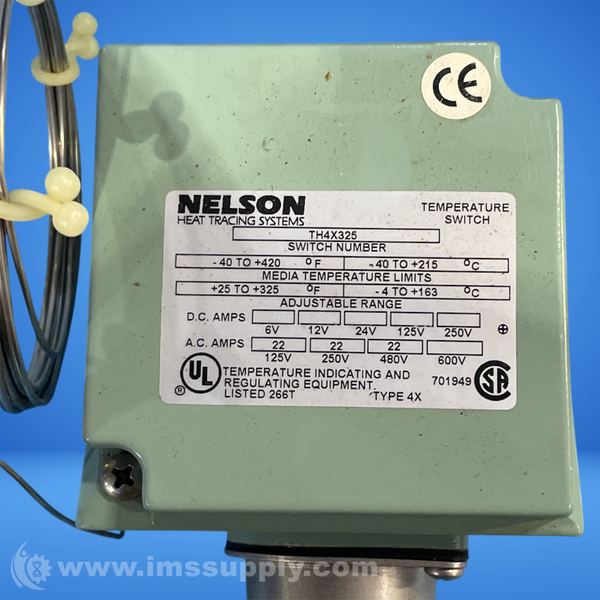

Nelson TH4X325 Thermostat
Thermostat used for controlling heat tracing systems in ordinary locations.
Specifications
- Certifications and Compliances: UL Listed, CSA Certified: Ordinary (Unclassified) Locations
- Enclosure: NEMA Type 4X; IP66
- Material: Die cast aluminum
- Temperature Range: -4 degrees C to +163 degrees C (+25 degrees F to +325 degrees F)
- Exposure: -40 degrees C to +215 degrees C (-40 degrees F to +420 degrees F)
- Capillary Length: 3 m (10 ft)
- Capillary Material: 316L Stainless Steel
- UL and CSA Rating: 22 Amp Resistance @ 480 Vac (100-480Vac)
- Switch Type: Single Pole Double Throw (SPDT)
- Weight: 1.36 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 4 hours and 2 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 4 hours and 2 minutes.
