NEXEN 820300 SHAFT MOUNT QD BORE BRAKE
Quick Overview
Manufactured By: NEXEN GROUP
Manufacturer Part Number: 820300
IMS Product Code: 1813068
Packaging: Sold Individually
Description:

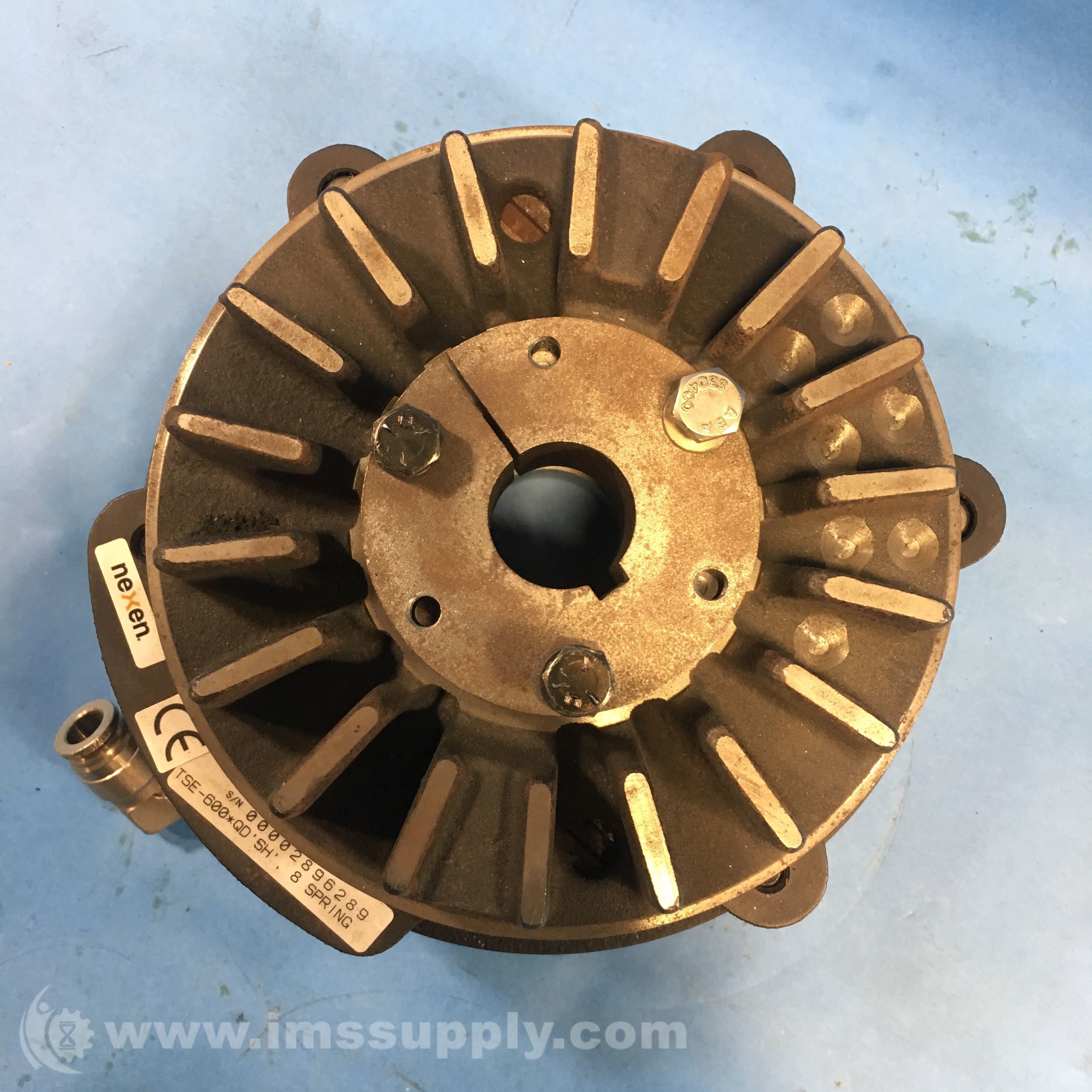

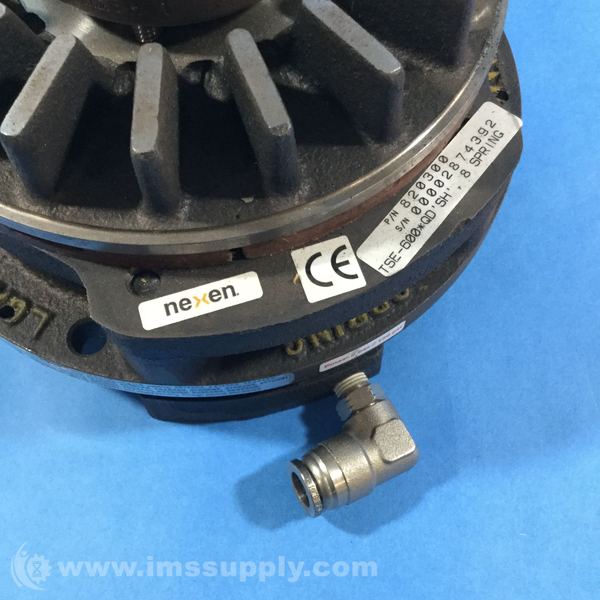

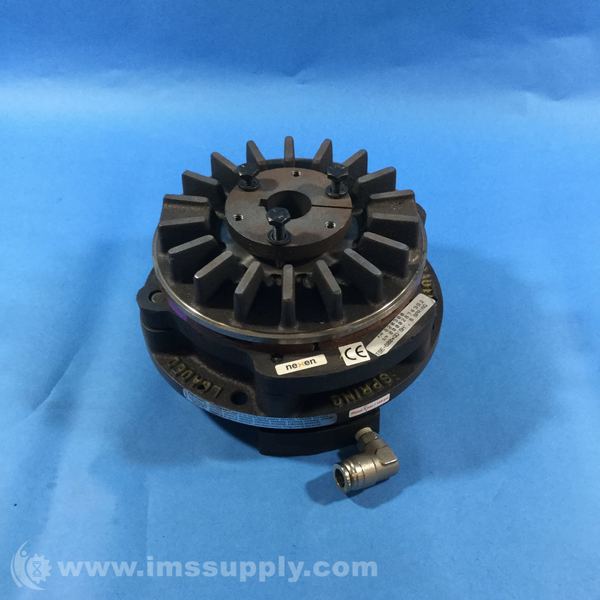

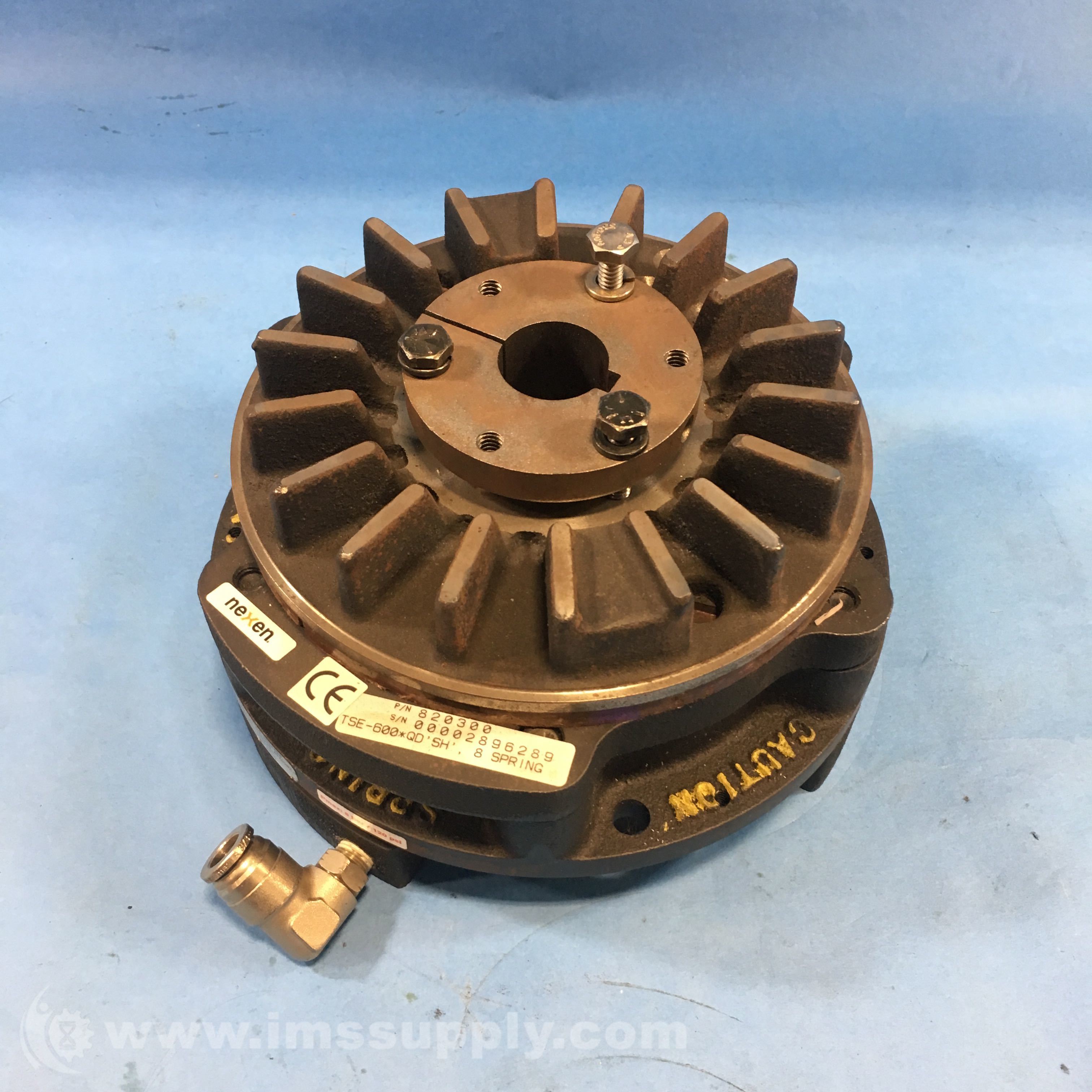

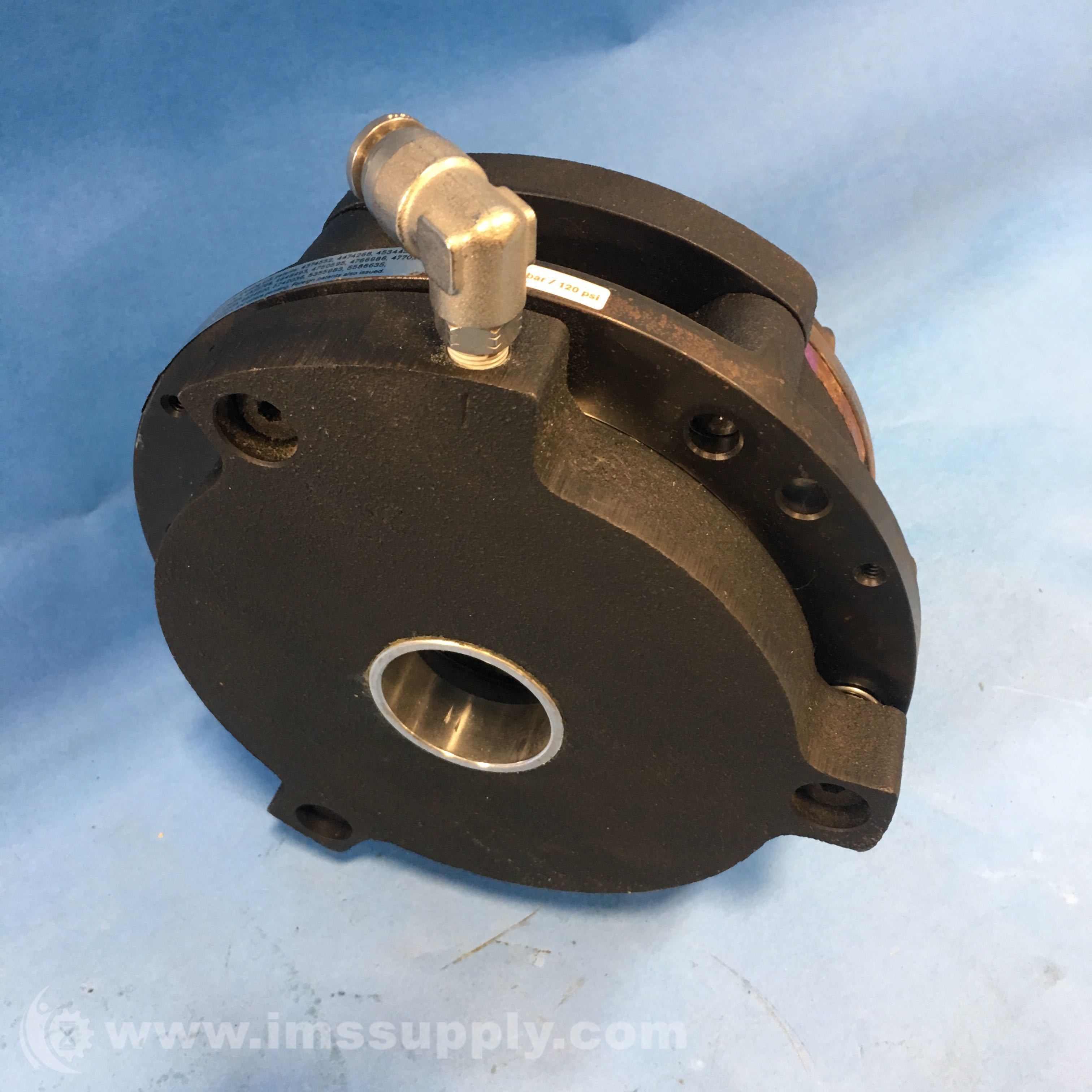

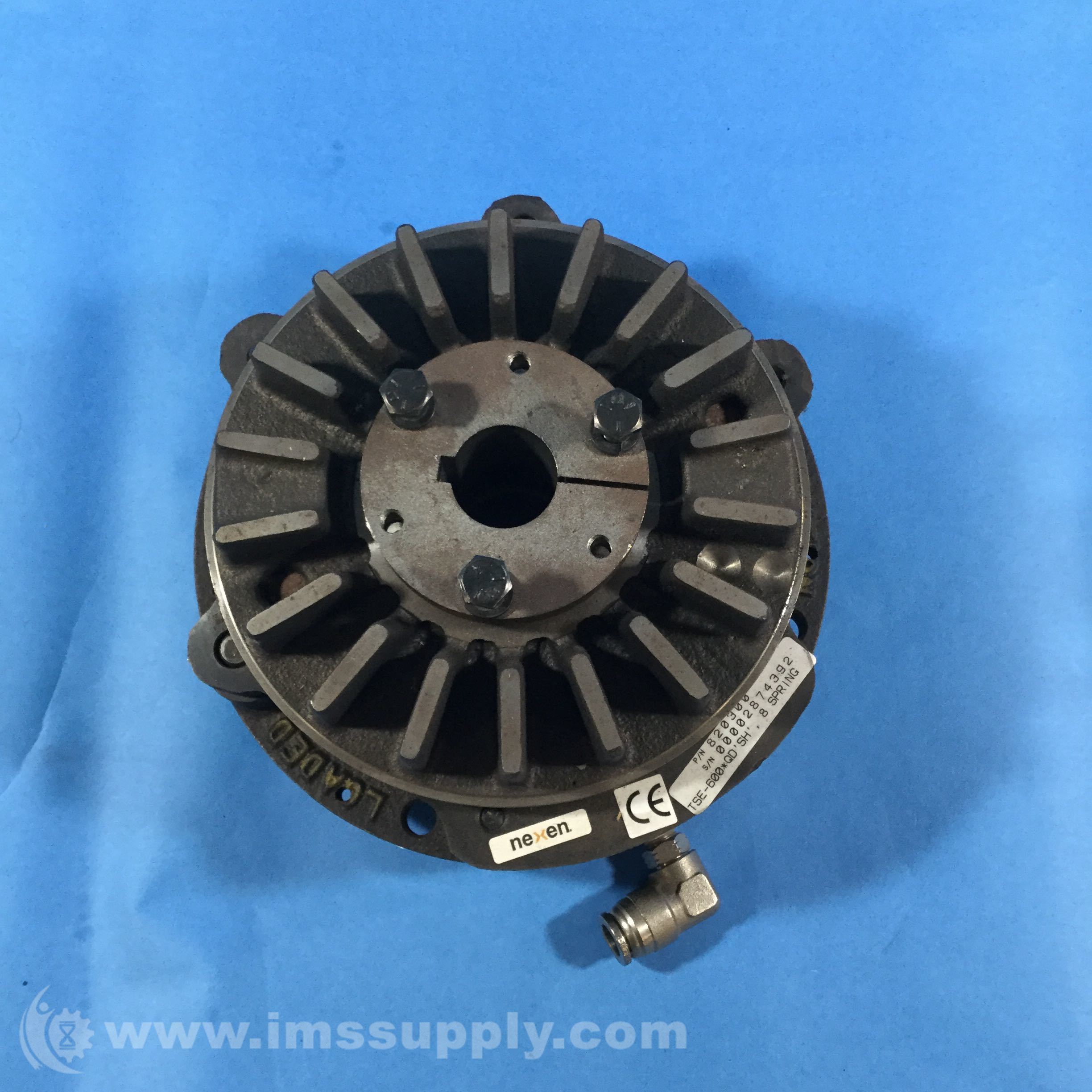

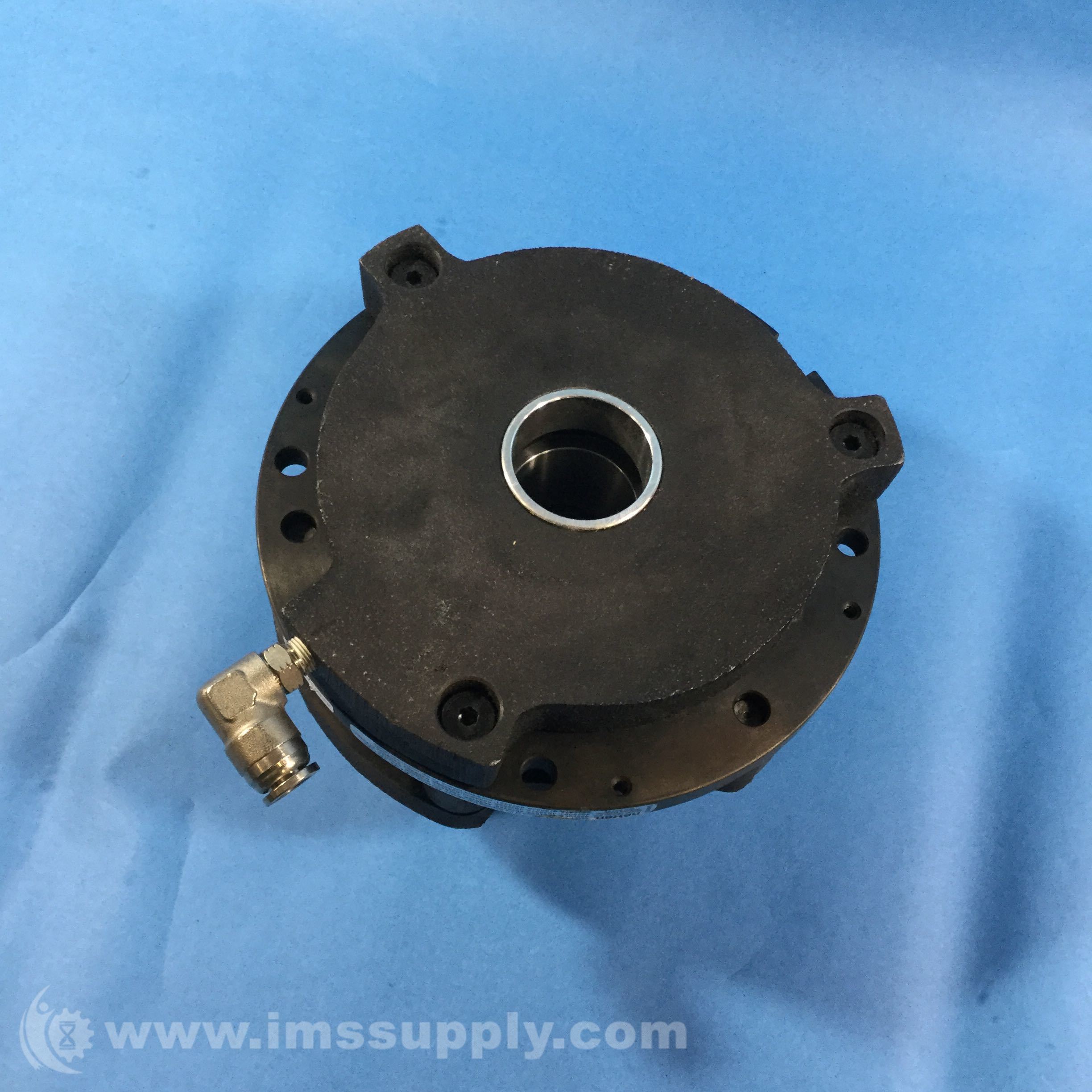

Nexen 820300 Shaft Mount QD Bore Brake
Spring engaged shaft mount QD bore brake with high coefficient facing and black oxide finish. Air released with 1/8 NPT port size and 1800 RPM max speed.
Specifications
- Mounting Style: Shaft
- Anti Rotation Style: Anti-Rotation Holes, Optional Torque Pin Bracket
- Engagement Method: Spring
- Release Method: Air
- Max Speed: 1800 RPM
- Shaft Inertia: 20.16 lbin²
- Open Or Enclosed Design: Open
- Primary Finish: Black Oxide
- Min Ambient Temperature: 32 degrees F
- Max Ambient Temperature: 150 degrees F
- CE Certified: CE
- RoHS Compliant: RoHS
- Bore Details: QD Type SH
- Max Static Brake Torque: 785 inlb
- Brake Torque: 785 inlb
- Brake Facing Type: High Coefficient
- Brake Facing Edge Color Code: Purple
- Approximate Brake Facing Life: 343 hphr
- Brake Facing Effective Area: 18.6 in²
- Max Brake Continuous Thermal Dissipation: 1.30 hp
- Brake Heat Sink Capacity: 60000 ftlb
- Brake Peak Thermal Input Rate: 17.00 hp
- Max Allowable Pressure: 120 psi
- Min Release Pressure: 72 psi
- Inlet Size: 0.125 NPT
- Bore Style: Customer Taper Bushing Required
- Brake Air Chamber Volume When New: 3.900 in³
- Brake Air Chamber Volume When Worn Out: 1.900 in³
- Length: 4.25 in
- Outer Diameter: 7.19 in
- Bore Size: 0.500 in to 1.375 in
- Weight: 19.5 lbs
- Engagement/Release: Spring/Air
- Bore Type: QD Bushed
- Port Size: 1/8 NPT
- Max Rpm: 1800 rpm
- Bushing Type & Range: SH Type - 0.5000 to 1.3750 in
- Function: Stopping & Holding
- Brake Response Factor: 0.124
- Ratings: CE and RoHS

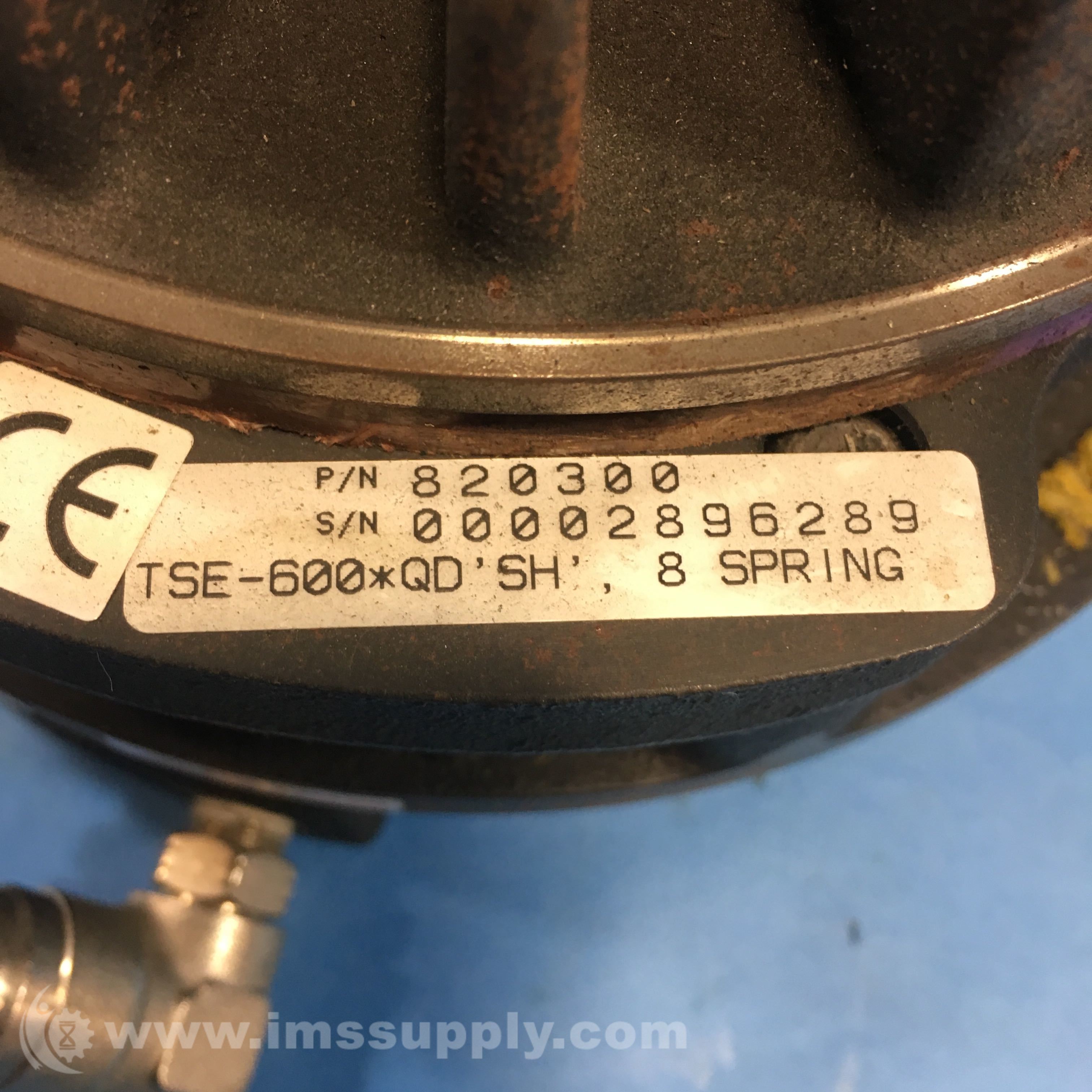

- Model: TSE-600
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
