NEXEN 966228 ROD LOCK
Quick Overview
Manufactured By: NEXEN GROUP
Manufacturer Part Number: 966228
IMS Product Code: 1788446
Packaging: Sold Individually
Description:

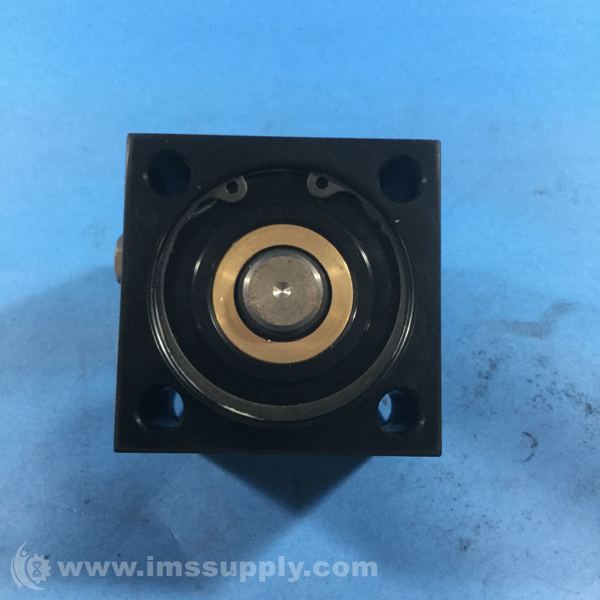

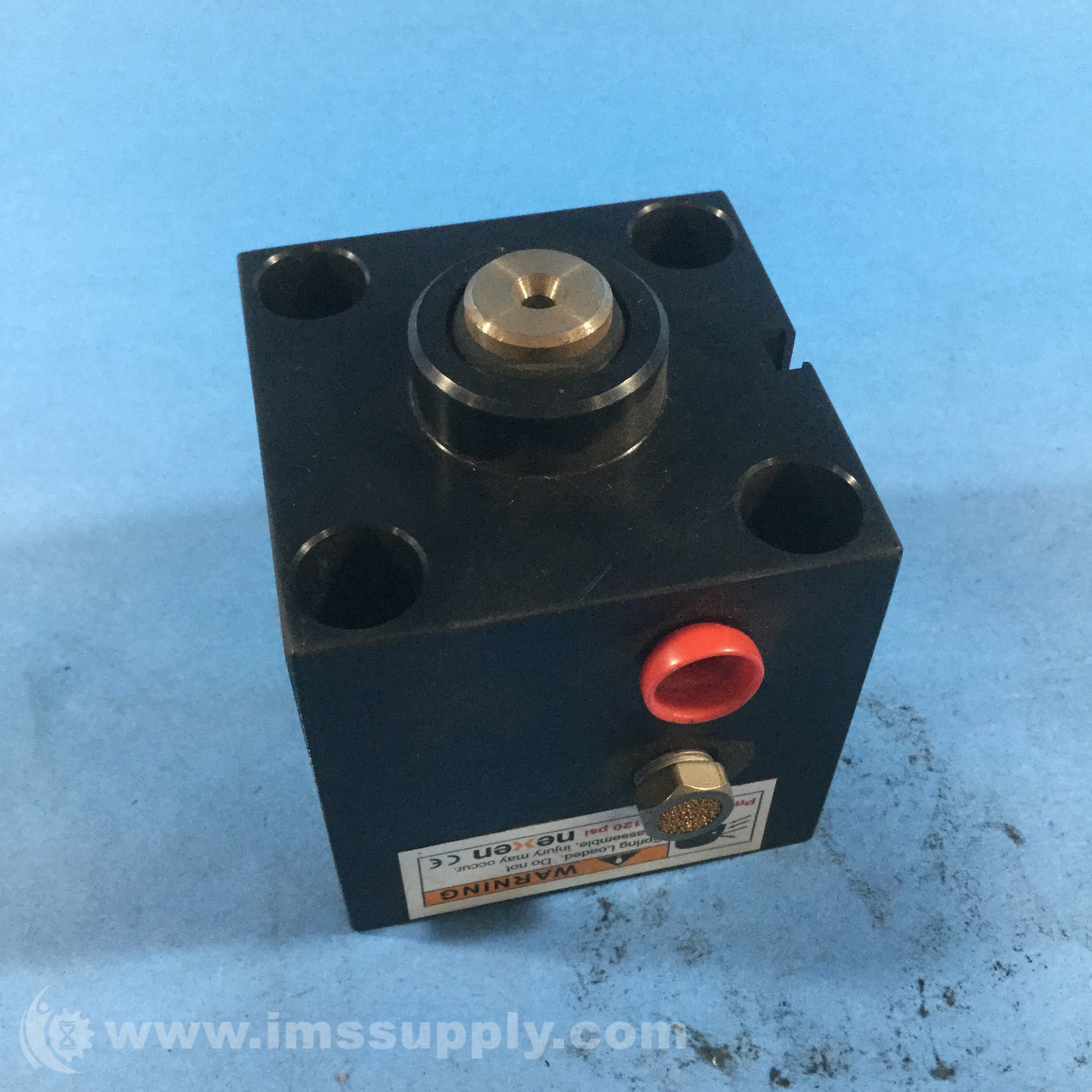

Nexen 966228 Rod Lock
Spring-engaged, air-released rod lock with 314 lbf holding force, IP67 rating, and 0.625 inch rod diameter.
Specifications
- air chamber volume: 0.810 in³
- approximate engagement response time: 40 ms
- CE certified: CE
- engagement method: Spring
- finish: Black Anodized
- IEC IP rating: IP67
- inlet size: 0.125-27 NPTF
- length: 2.80 in
- linear holding force: 314 lbf
- manual release feature: No
- materials of construction: Black Anodized
- max allowable pressure (psi): 120
- max ambient temperature: 150 F, Continuous
- max intermittent ambient temperature: 212 F, Intermittent
- max operating pressure (psi): 80
- min ambient temperature (F): 33
- min release pressure (bar): 4.137 bar
- min release pressure (psi): 60
- mounting style: Stand Alone
- number of slots for operating mode sensors: 1 Sensor Slot, None included, sold separately as accessory
- open or enclosed design: Enclosed
- release method: Air
- rod diameter: 0.625 in
- rod requirements: HRC60 Or Hard Chrome Plated Minimum Of 20 Microns, h8 Tolerance, Roughness 1.6 Microns
- RoHS compliant: RoHS
- safety rating: NexSafe Certified
- static b10/b10d cycle life: 1000000/2000000
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
