NICHICON LNT2G472MSEG ALUMINUM ELECTROLYTIC CAPACITOR
Quick Overview
Manufactured By: NICHICON
Manufacturer Part Number: LNT2G472MSEG
IMS Product Code: 1789801
Packaging: Sold Individually
Description:

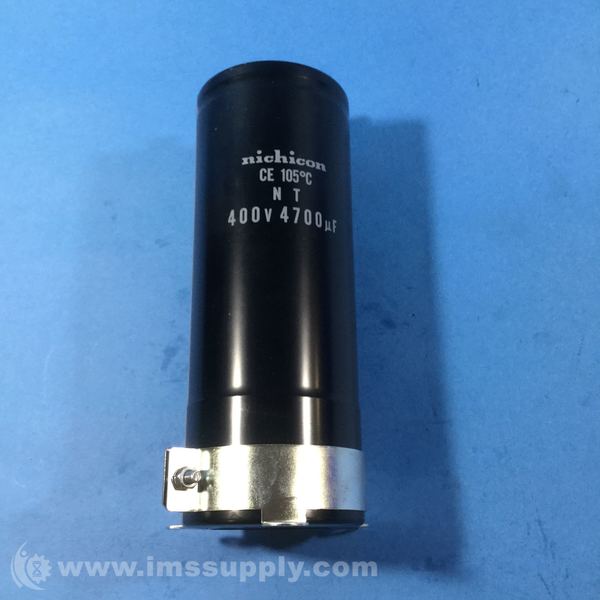

Nichicon LNT2G472MSEG Aluminum Electrolytic Capacitor
Screw Terminal Type Aluminum Electrolytic Capacitor
Specifications
- Capacitance: 4700 µF
- Capacitance Tolerance: ±20%
- Voltage: 400 V
- tand(DF): 0.2
- DF Measurement Condition: 20?, 120Hz
- Low Frequency Ripple Current: 20.7 A @ 120 Hz
- High Frequency Ripple Current: 28.98 A @ 10 kHz
- Leakage Current: 4110 µA
- Life/Endurance: 5000 Hrs @ 105°C
- Temperature Range: -25°C ~ 105°C
- Size: f63.5x170L

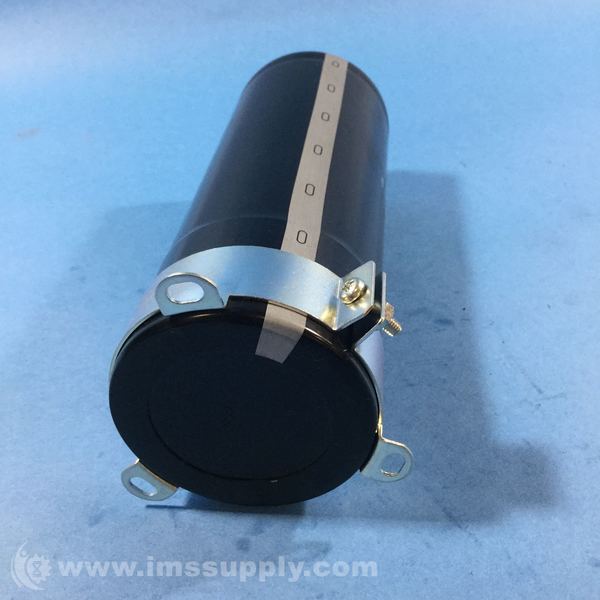

- Mounting Type: Chassis Mount

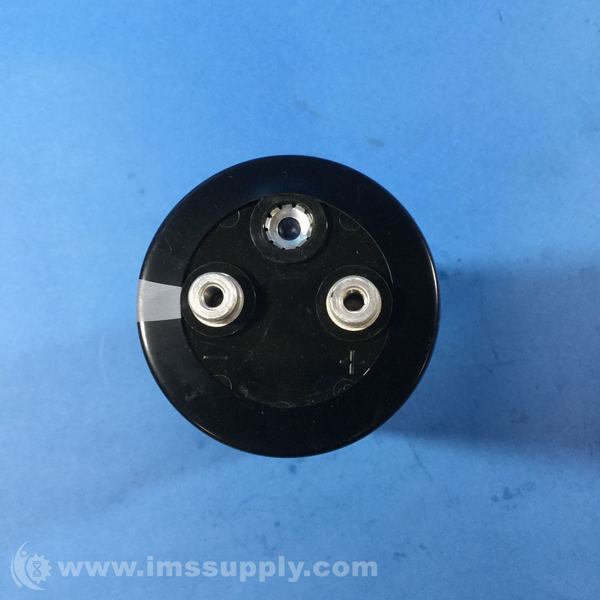

- Package / Case: Radial, Can - Screw Terminals
- Series: LNT
- Polarization: Polar
- Applications: General Purpose
New - Open Box:

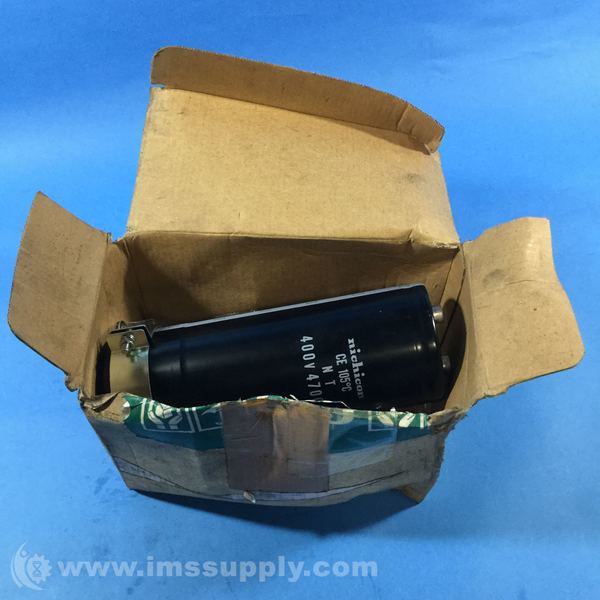

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, May 11, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
